Description
Since opening in 1990, LDX has been focused on broad stripe multimode laser diodes, largely in the red wavelengths, but also other specialty wavelengths such as 760 1030 1065 1120 1450 1540 nm specialty wavelengths such as 760, 1030, 1065, 1120, 1450, 1540 nm, etc.
LDX can produce virtually all of the common single emitter laser diode packages including c-mounts, TO-18, the 9 mm can, TO-3’s, the high heat load package (HHL), various fiber coupled packages, and more. Some of the wavelengths LDX offers are more heat sensitive than the usual laser diodes.
Exceptional heat management of these devices is critical for reliability and long-life. The skill from our many years of experience is employed in all of our packages. About RPMC The LDX’s laboratories and offices are located in Maryville, Tennessee.

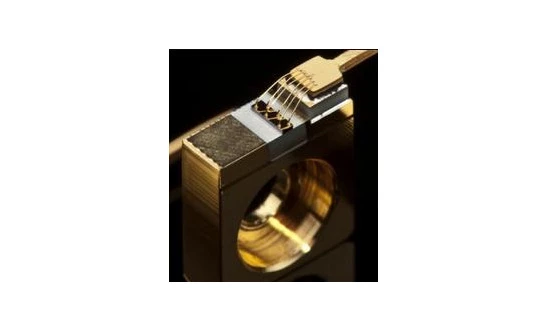

LDX-2710-690: Multimode Laser Diode
Specifications
| Center Wavelength: | 0.69 um |
|---|---|
| Output Power: | 750 mW |
| Operating Current: | 1100 mA |
Download Data Sheet
Features
- Wide Wavelength Range: Available in wavelengths from 445 nm to 690 nm, catering to diverse laser applications.
- High Output Power: Offers output power ranging from 150 mW to 1,800 mW, suitable for various intensity requirements.
- Precision Wavelength Control: Narrow spectral width with Full Width at Half Maximum (FWHM) for precise applications.
- Beam Divergence: Features full angle beam divergence for both parallel (θ//) and perpendicular (θ⊥) orientations, ensuring focused beam delivery.
- Polarization Options: Available in both TE and TM polarization, providing flexibility for different optical setups.
- Compact Emitter Sizes: Emitter sizes range from 20 µm to 300 µm, allowing integration into compact systems.
- Temperature Resilience: Operates efficiently within a wide temperature range, ensuring reliability in various environments.
- Versatile Packaging: Standard C-mount package with optional D-mount, Q-mount, 9.0mm, TO-3, HHL Free Space, and Fiber Coupled packages available.
- Continuous Improvement: LDX Optronics follows a policy of continuous product improvement, ensuring cutting-edge technology.
Applications
Suitable for various opto-electronic applications
Frequently Asked Questions
What types of packages can LDX produce for their laser diodes?
Are there any wavelengths that LDX offers that are more heat sensitive than usual laser diodes?
Why is exceptional heat management important for the LDX laser diodes?
What is the LDX-2710-690 laser diode used for?
Where are the LDX laboratories and offices located?
