Description
High Power SMF Couple Laser Modules OSI Laser Diode, Inc. presents its High Power SMF couple laser modules, meticulously engineered to fulfill the rigorous performance requirements of the optical test equipment marketplace. These laser modules are available in various wavelengths, ranging from 1310nm to 1650nm, ensuring versatility for a wide array of applications. Encased in fully hermetic laser-welded packages, these modules provide robust protection and reliability in various environments.
The laser modules are designed to offer superior wavelength stability, thanks to the inclusion of both TEC (Thermoelectric Cooler) and temperature sensing thermistors, alongside back facet monitors. This design ensures consistent performance over a broad temperature range, making these modules ideal for environments where precision and reliability are paramount. The high peak optical power capabilities of these lasers make them suitable for demanding applications, ensuring that users can rely on them for consistent output. Furthermore, OSI Laser Diode's commitment to quality and innovation is evident in the meticulous engineering of these modules.
With options for both temperature-controlled and uncooled versions, as well as custom packaging, these laser modules offer flexibility to meet specific user needs. The integration of these features underscores the company's dedication to providing cutting-edge solutions for the optical test equipment industry.
LCW/SCW Series High Power Singlemode Fiber Coupled Laser Modules
Specifications |
|
|---|---|
| Center Wavelength: | 1.665 um |
| Output Power: | 350 mW |
| Forward Current: | 1000 mA |
| Threshold Current: | mA |
| Spectral Width: | nm |
| Cooling Capacity: | 45 °C |
| TEC Voltage: | 1.2 or 1.6 V |
| TEC Current: | 600 or 800 mA |
| Operating Temperature Range: | °C |
| Output Power (various Packages): | mW |
| Wavelengths: | nm |
Features
- Wavelength Coverage: 1310 nm, 1550 nm, 1625 nm, and 1650 nm available
- High Peak Optical Power: Up to 200 mW pulsed at 1000 mA
- CW Optical Output: Delivers up to 75 mW for continuous applications
- Temperature Control Options: Versions with TEC and thermistor for wavelength stability

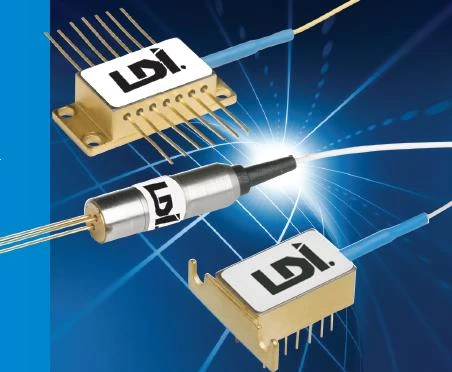

- Flexible Packaging: Available in DIP, butterfly, TO56, and coaxial formats
- RoHS Compliant: Environmentally safe and lead-free
- Custom Configurations: Connector type, packaging, and power levels can be tailored
Applications
- OTDR Instruments: Provides stable light sources for precise backscatter analysis
- Photon Counting: Enables high-sensitivity detection in low-light conditions
- Spectroscopy: Delivers narrowband emissions for spectral measurements
- Talk Sets: Serves as the optical source in field communication systems
- Optical and LOS Sensors: Ideal for signal transmission in sensing and tracking devices
Frequently Asked Questions
The LCW/SCW Series Instrument Laser Module is designed for use in optical test equipment applications such as OTDR instruments, spectroscopy, photon counting, optical and LOS sensors, and talk sets.
The LCW/SCW Series Instrument Laser Module serves wavelengths from 1310nm through 1650nm.
The LCW/SCW Series Instrument Laser Module is available in single mode and multimode options. Temperature controlled or uncooled versions are also available, and custom packaging is available.
The LCW/SCW Series Instrument Laser Module has a high peak optical power of up to 200mW at 1000mA for pulsed applications and up to 75mW for CW applications.
The LCW/SCW Series Instrument Laser Module has an operating temperature range of -30°C to 70°C.
