Description
**High Power CW Laser Diodes Overview** Discover the power and efficiency of the High Power CW Laser Diodes from OSI Laser Diode Inc., designed to meet the demands of various high-performance applications. These laser diodes are engineered to deliver exceptional output, ranging from 0.5 Watts to 7.0 Watts, making them suitable for a wide array of uses.
With a standard wavelength of 805 nm and a peak wavelength tolerance of +/- 5 nm, these devices ensure precision and reliability in performance. The laser diodes also feature a spectral width of 2.5 nm FWHM, providing consistent and stable output. Built for high efficiency, these laser diodes are crafted to offer long-lasting performance. The devices are designed with aluminum-free construction, enhancing their durability and reliability over extended periods. They operate effectively across a broad temperature range, with an operating temperature from -20°C to +30°C and a storage temperature from -40°C to +85°C. This ensures that the laser diodes perform optimally in various environments, maintaining their efficiency and longevity.

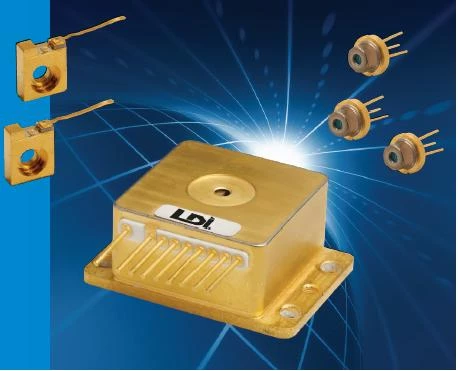

The High Power CW Laser Diodes are available in multiple package options, including C-Mount and 9 mm packages, allowing for flexible integration into different systems. Each package is designed to meet specific requirements, ensuring compatibility with your application needs. These laser diodes are ISO 9001:2008 certified, reflecting their high quality and adherence to international standards. With an emphasis on safety, the products are classified as Class 4 lasers, and users are advised to handle them with care to prevent potential hazards.
High Power CW Laser Diodes
Specifications |
|
|---|---|
| Center Wavelength: | 0.805 um |
| Output Power: | 7000 mW |
| Special Width (50% Points): | 2.5 nm |
| Rise/Fall Times: | 1 ns |
| Far Field Beam Divergence: | 12 x 40 deg |
| Operating Temperature: | °C |
| Max Current: | amps |
| Source Size: | μm |
Features
- Power Range: Offers a wide output range from 0.5 Watts to 7.0 Watts, suitable for various applications.
- High Efficiency: Designed with high efficiency to ensure optimal performance and energy savings.
- Multiple Package Options: Available in various package options, including C-Mount and 9 mm packages, to suit different needs.
- High Reliability and Long Life: Engineered for durability and extended lifespan, ensuring consistent performance over time.
- Aluminum-Free Design: Constructed without aluminum, enhancing the device's performance and reliability.
- Applications: Ideal for use in diode-based medical systems, diode-pumped solid-state lasers, analytical equipment, illuminators, reprographics, and laser-initiated ordnance.
- Peak Wavelength: Standard wavelength of 805 nm with a tolerance of +/- 5 nm, ensuring precise and accurate light emission.
- ISO Certified: Manufactured in compliance with ISO 9001:2008 standards, guaranteeing quality and reliability.
- Safety and Handling: Class 4 laser with safety precautions to prevent harm, and ESD precautions are necessary for handling.
- Customizable Options: Various configurations and fiber lengths available to meet specific requirements.
Applications
- Diode-Based Medical Systems: Provides precise, high-power light for therapeutic and diagnostic equipment
- Diode Pumped Solid-State Lasers: Serves as a pump source in high-efficiency DPSS lasers
- Analytical Equipment: Offers stable power output for spectroscopy and sensing
- Illuminators: Powers high-brightness optical sources in industrial imaging
- Reprographics: Delivers consistent output for laser printing and photocopying systems
- Laser-Initiated Ordnance: Supports ignition systems requiring controlled optical pulses
Frequently Asked Questions
The output range of OSI Laser Diode Inc.'s High Power CW products is from 0.5 Watts to 7.0 Watts.
The standard wavelength of these devices is 805nm +/- 5nm with a spectral width of 2.5 nm FWHM.
The applications of these devices include Diode Based Medical Systems, Diode Pumped Solid State Lasers, Analytical Equipment, Illuminators, Reprographics, and Laser Initiated Ordnance.
The package options available for these devices include C Mount, High Heat Load, Pigtailed High Heat Load, or 9mm Package.
The warranty for these devices can be found in the product purchase agreement or by checking with an OSI Laser Diode sales representative.
