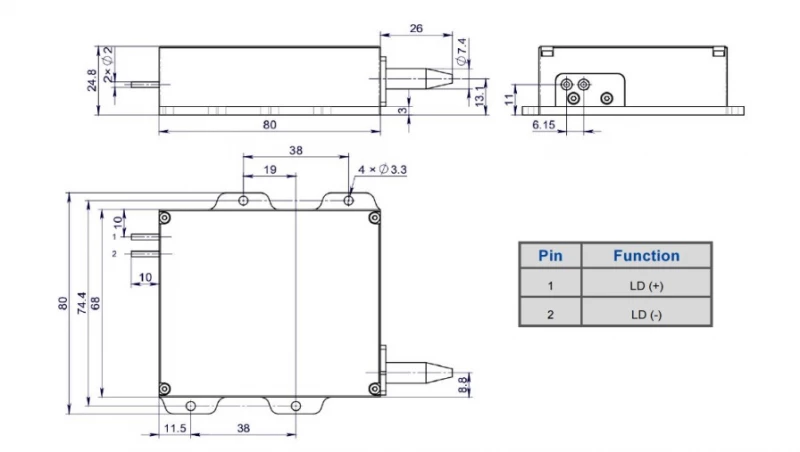

Thumbnail of Wavelength Stabilized Fiber-coupled Laser Diode - FBLD-976-130W-FC105-0.15-VBG-2Pin photo 1

Description

he FBLD-976-130W-FC105-0.15-VBG-2Pin is a high-power fiber-coupled laser diode designed for wavelength-stabilized operation at 976nm. It features a continuous wave (CW) output power of 130W and a fiber core diameter of 105µm with a numerical aperture (NA) of 0.15.

The laser diode incorporates a volume Bragg grating (VBG) for wavelength stabilization and includes a feedback protection filter. It is suitable for various applications requiring high-power and wavelength-stabilized laser output.

Wavelength Stabilized Fiber-coupled Laser Diode - FBLD-976-130W-FC105-0.15-VBG-2Pin

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Center Wavelength: 0.976 um
Output Power: 130000 mW
Spectral Width (FWHM): 1 nm
Back Reflection Wavelength: 1200 nm
Back Reflection Isolation: 30 dB
Wavelength Shift With Temp.: 0.02 nm/°C
Wavelength Shift With Current: 0.03 nm/A
Core Diameter: 105 µm
Numerical Aperture: 0.15
Cladding Diameter: 125 µm
Fiber Length: 2 m
Minimum Bending Radius: 60 mm
Threshold Current: 11 A
Operation Current: 15 A
Slope Efficiency: 10 W/A
Electrical-to-Optical Efficiency: 40 %

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 976nm
  • Continuous wave (CW) output power: 130W
  • Fiber core diameter: 105µm / NA 0.15
  • Wavelength stabilization using a volume Bragg grating (VBG)
  • Feedback protection filter for enhanced stability

Applications

  • Fiber laser pumping
  • Material processing
  • Laser ablation
  • Medical applications
  • Laser spectroscopy

Frequently Asked Questions

What is the wavelength of the FBLD-976-130W-FC105-0.15-VBG-2Pin laser diode?
The wavelength of the laser diode is 976nm.
What is the output power of the FBLD-976-130W-FC105-0.15-VBG-2Pin laser diode?
The laser diode has a continuous wave (CW) output power of 130W.
What is the fiber core diameter and numerical aperture of the FBLD-976-130W-FC105-0.15-VBG-2Pin laser diode?
The laser diode has a fiber core diameter of 105µm with a numerical aperture (NA) of 0.15.
What is the volume Bragg grating (VBG) used for in the FBLD-976-130W-FC105-0.15-VBG-2Pin laser diode?
The VBG is used for wavelength stabilization of the laser output.
What are some applications that the FBLD-976-130W-FC105-0.15-VBG-2Pin laser diode is suitable for?
The laser diode is suitable for fiber laser pumping, material processing, laser ablation, medical applications, and laser spectroscopy.

Got more questions? Use the inquiry form to ask the supplier directly.
