Description

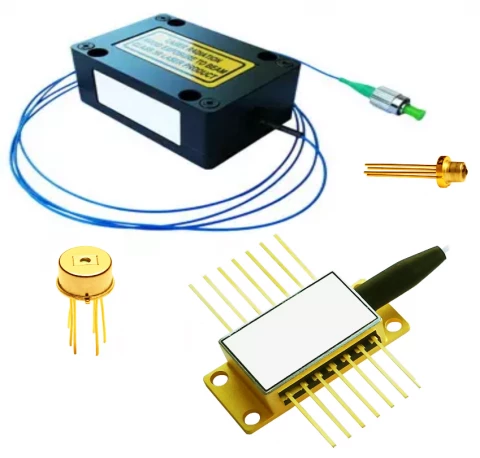

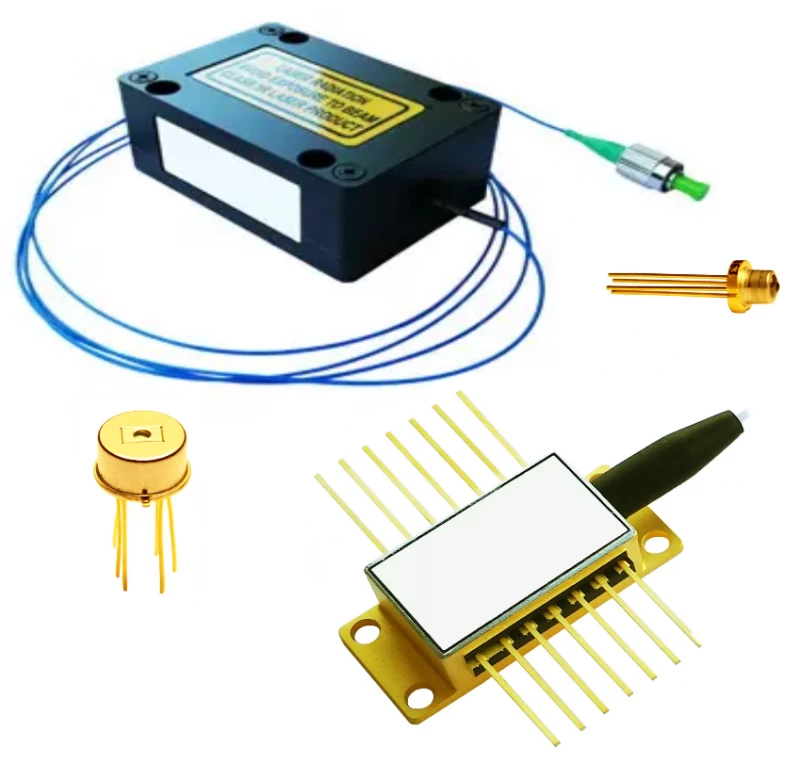

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.


Benefits:

  • Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
  • Highly customizable units with several package options enable customers to choose the right product for their specific needs.
  • High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
  • Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

REP2051-DM-B: 2051nm Stabilized Narrow-Linewidth Laser Diode 1950-2150nm

Specifications

Center Wavelength: 2.051 um
Output Power: 2 mW
Forward Current: 140 mA
Forward Voltage: 1.6 V
TEC Current: 1.2 A
Reverse Voltage LD: 2 V
Case Temperature: -20 to 65 °C
Chip Submount Temperature: 0 to 50 °C
Storage Temperature: -40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Integral TEC
  • PM/SMF Coupled with FC/APC
  • Built-in Optical Isolator

Applications

  • Telecommunications: Ideal for use in fiber optic communication systems due to its precise wavelength control and stability.
  • Spectroscopy: Suitable for high-resolution spectroscopic applications, offering narrow linewidth and stable output.
  • Metrology: Used in precision measurement systems where accurate and stable laser sources are required.
  • Sensing: Effective in various sensing applications, including environmental monitoring and industrial sensing.
  • Research and Development: A versatile tool for scientific research, providing reliable performance for experimental setups.
  • Medical Applications: Can be utilized in medical diagnostics and therapeutic procedures that require precise laser sources.

Frequently Asked Questions

What is the REP2051-DM-B laser diode used for?
The REP2051-DM-B laser diode is designed for Gas Sensing, LIDAR, Spectroscopy, and Telecom applications.
What are the benefits of the REP2051-DM-B laser diode?
The benefits of the REP2051-DM-B laser diode include industry-leading performance, customizable units with several package options, high-power and narrow linewidth options, and various product ranges at the most popular wavelengths.
What are the maximum ratings for the REP2051-DM-B laser diode?
The maximum ratings for the REP2051-DM-B laser diode include a forward current of 140 mA, forward voltage of 1.6 V, TEC current of 1.2 A, reverse voltage LD of -2 V, case temperature of -20 to 65 degrees Celsius, and chip submount temperature of 0 to 50 degrees Celsius.
What is the laser safety class of the REP2051-DM-B laser diode?
The REP2051-DM-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3.
How can I order the REP2051-DM-B laser diode?
To order the REP2051-DM-B laser diode, you can construct your part number using the provided example and email your order to sales@eblanaphotonics.com or call +353 1 675 3228.
