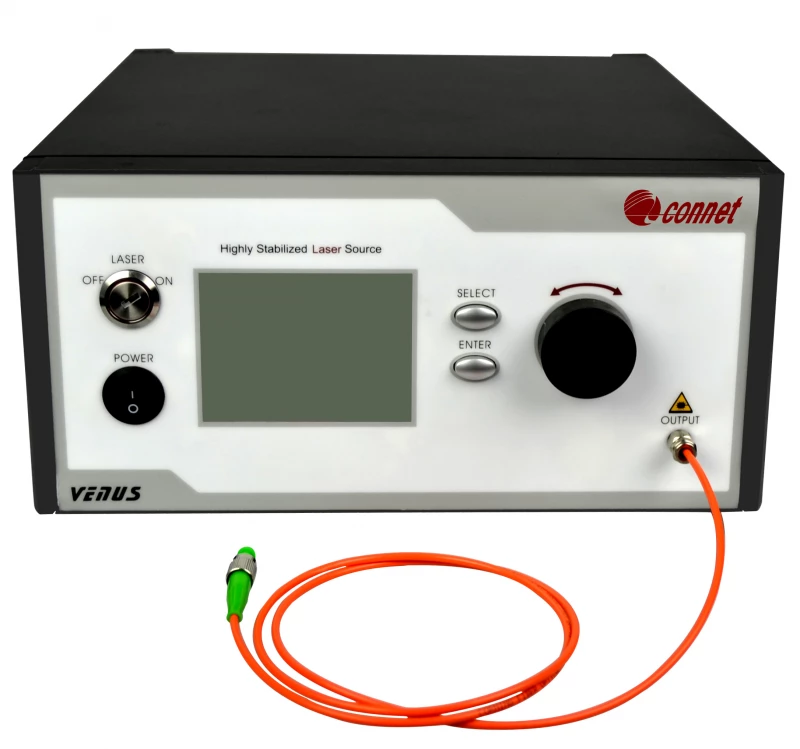

980 nm High Stability Multi‑Mode Pump Laser Source – VENUS Series

The VENUS series 980 nm high stability multi‑mode pump laser source is a precision-engineered, benchtop and module-ready platform designed specifically for demanding fiber laser and fiber amplifier applications. Built around a single-emitter, high-brightness pump diode, this source delivers high optical output power with excellent beam quality, enabling efficient pumping of double‑clad fiber lasers and amplifiers. Its compact, fully integrated design combines the laser head, driver electronics, thermal management, and control interface into one turnkey instrument that is ideal for both laboratory research and industrial manufacturing environments.

To support precise and repeatable experimentation, the benchtop VENUS unit incorporates a high‑definition LCD that simultaneously displays operating current and voltage, together with real‑time output power information. Continuously adjustable output power from 0 to 100% of the rated level allows users to finely tune the pump conditions to match specific gain fibers, experiment protocols, or test procedures. Compared with many conventional pump modules and generic laser diode drivers, this integrated source minimizes setup complexity, reduces the risk of mismatched components, and shortens the time from installation to stable operation.

A key differentiator of the VENUS series is its built‑in optical isolation, optimized to protect the pump diode from back‑propagating amplified spontaneous emission (ASE) and reflections. The internal isolator typically provides around 30 dB isolation in the 1040–1200 nm band, effectively blocking backward ASE from Yb‑doped fiber lasers and amplifiers and greatly reducing the risk of catastrophic optical damage to the pump diode facet. This robust protection architecture, combined with carefully engineered drive electronics and thermal control, yields excellent long‑term output stability and reliability, which is especially important in high‑power continuous‑wave operation and extended test runs.

The standard operating wavelength is centered around 980 nm, a widely used pump band for erbium‑ and ytterbium‑doped fiber systems because of its efficient absorption and low noise characteristics. For applications requiring alternative pump schemes or specific gain profiles, versions at 915 nm and 940 nm are also available. These options make the VENUS series suitable as a pump source for a broad range of fiber lasers, from high‑power Yb‑doped systems to EDFAs and specialized laboratory setups. The specified spectral width (FWHM) of up to 6 nm provides a good balance between efficient absorption in active fibers and controlled spectral characteristics for more sensitive optical architectures.

The laser output is delivered via a high‑power multimode fiber, typically 105/125 or 106.5/125 μm with numerical apertures of 0.15 or 0.22, allowing efficient coupling into double‑clad fibers and other multimode waveguides used in modern high‑power fiber laser designs. A standard FC/APC connector is provided to minimize back‑reflection and to ensure safe, repeatable mating; other connector options can be configured to match existing setups or OEM integration requirements. The fiber pigtail length of more than one meter offers convenient routing and flexibility when integrating into optical benches or enclosed systems.

From a performance standpoint, the VENUS series is engineered to maintain stringent power stability over both short and extended time scales. Under typical operating conditions, the output power stability can be on the order of ±0.1% over 15 minutes and within ±1.0% over eight hours after thermal equilibrium is reached. This level of stability is particularly valuable for precision test and measurement, spectral analysis, and long-duration reliability studies where fluctuations in pump power can directly impact measurement accuracy, laser linewidth, or gain dynamics. The source supports both coarse and fine power adjustment modes, making it straightforward to dial in the exact output level required by the experiment or process.

The VENUS multi‑mode pump laser source is available in several standard power classes, typically including 9 W, 20 W, 30 W, and 60 W, with the option to request higher powers for more demanding applications. This scalable power portfolio enables users to select an appropriate configuration for anything from small‑signal fiber amplifier pumping to high‑power fiber laser architectures. The instrument operates from a wide‑range AC input (100–240 VAC), simplifying deployment in different lab or production environments worldwide, and its benchtop chassis—approximately 320 mm × 280 mm × 150 mm—is compact enough to fit easily on standard optical tables or within test racks.

Thermal and environmental robustness are also central to the product design. The VENUS series is specified fo

980nm High Stability Multi Mode Pump Laser Source for Fiber Lasers

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.976 um
Output Power: 60000 mW
Output Power Tunable Mode: Coarse / Fine
Dimensions: 320(L) x 280(B) x 150(H) mm
Storage Temperature: -40 to +85 C
Operating Temperature: 0 to +30 C
Power Consumption: 150 W
Operating Voltage: 100 to 240 V AC
Optical Connector: FC/APC (other options available)
Output Fiber Length: >1 m
Output Fiber Type: 105/125 or 106.5/125 NA=0.15 or 0.22
Part No.: VLSM-XXXX-B
Output Power Tunable Range: 0 to 100%
Output Power Stability (8hrs, Typ.): ±1.0%
Output Power Stability (15min, Typ.): ±0.1%
Output Isolation (typ.): 30 dB
Spectral Width (FWHM): 6 nm
Operating Wavelength Range: 973 to 980 nm
Output Power Range: 9 to 60 W
