Description
The VENUS series 793nm multi-mode pump laser source of Connet has high power and high brightness output with a built-in Single Emitter laser.
The control system based on the advanced microprocessor, combined with high-precision ATC and ACC (APC) control circuits, realizes the highly stable output of the laser, and at the same time ensures the fast and intuitive control of the laser source.
Connet can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control.
Connet VENUS series 793nm multimode pump laser source can be used as the pump laser source for thulium- doped fiber lasers and fiber amplifiers. It uses Connet's unique AWL (Active Wavelength Locking) active wavelength locking technology to ensure that the peak wavelength is stabilized in the range of 793 +/- 3nm in the case the power is reduced to half. It greatly improves the stability and efficiency.

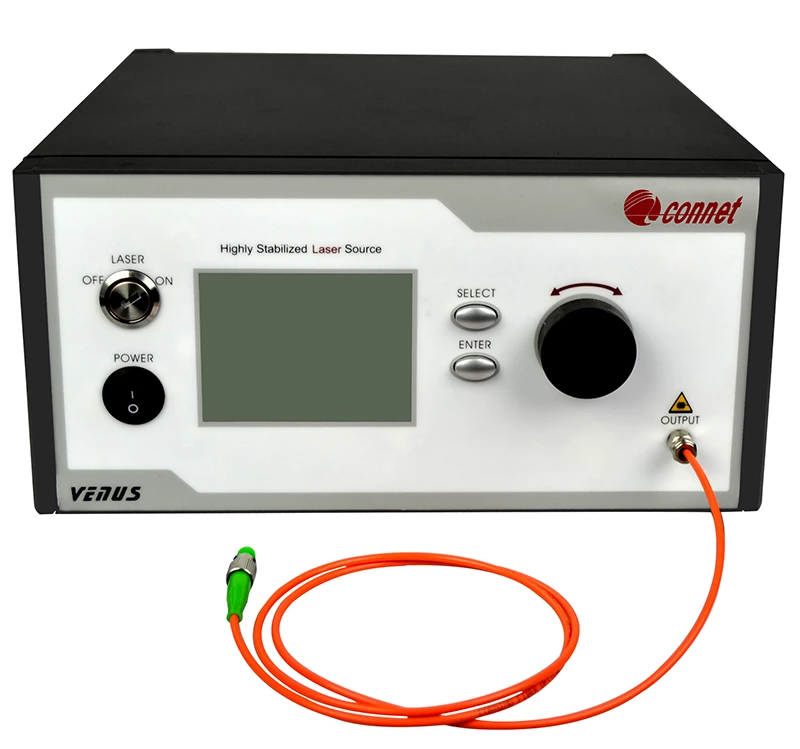

Connet VENUS series 793nm multi-mode pump laser source is a highly integrated system source. The benchtop source uses the high-definition LCD to display the current and voltage synchronously and also has the continuously adjustable output power which is suitable for scientific research and manufacture testing. In addition, Connet Laser can provide compact module package for system integration.
793nm High Stability Multi-mode Pump Laser Source
Specifications
| Center Wavelength: | 0.793 um |
|---|---|
| Output Power: | 50000 mW |
| Dimensions: | 320(L) x 280(B) x 150(H) mm |
| Storage Temperature: | -40 to +85 ℃ |
| Operating Temperature: | 0 to +30 ℃ |
| Operating Voltage: | 100-240 V AC |
| Optical Connector: | FC/APC (other options available) |
| Output Fiber Length: | >1 m |
| Output Fiber Type: | 105/125 NA= 0.22 |
| Output Power Tunable Mode: | Coarse / Fine |
| Output Power Tunable Range: | 0 to 100% |
| Output Power Stability (8h): | ±1.0% |
| Output Power Stability (15mins): | ±0.1% |
| Output Isolation: | 30 |
| Spectral Width (FWHM): | 2 nm |
| Operating Wavelength Range: | 790 to 796 nm |
| Output Power Range: | 4 to 50 W |
| Part No.: | VLSM-793-B |
Download Data Sheet
Features
- High output power
- Wavelength-stabilized optional
- 1,900-2,100nm feedback protection
- High stability and high reliability
Applications
- Pump for double-clad fiber laser & amplifier
- Spectral analysis
- Test and measurement
- Other lab applications
Frequently Asked Questions
What are the applications of the Connet VENUS series 793nm multi-mode pump laser source?
The Connet VENUS series 793nm multi-mode pump laser source can be used as a pump for double-clad fiber laser & amplifier, spectral analysis, test and measurement, and other lab applications.
What is the operating wavelength range of the Connet VENUS series 793nm multi-mode pump laser source?
The operating wavelength range of the Connet VENUS series 793nm multi-mode pump laser source is 790-796nm.
What is the output power range of the Connet VENUS series 793nm multi-mode pump laser source?
The output power range of the Connet VENUS series 793nm multi-mode pump laser source is 4-50W.
What is the output power stability of the Connet VENUS series 793nm multi-mode pump laser source?
The output power stability of the Connet VENUS series 793nm multi-mode pump laser source is 3% for 15 minutes and ±1.0-±2.0% for 8 hours.
What is the output power tunable range of the Connet VENUS series 793nm multi-mode pump laser source?
The output power tunable range of the Connet VENUS series 793nm multi-mode pump laser source is 0-100%.
