Description

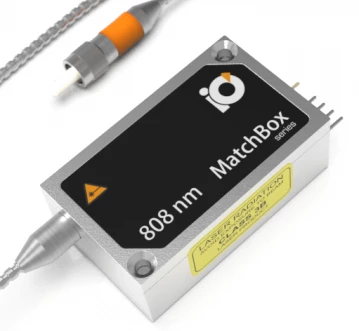

The 808L-1XA CW version is a 808nm low noise diode laser with up to 110mW output power. This NIR laser module comes standard with internal voltage up-conversion that allows a 5V power supply while maintaining low noise operation. The monolithic design of these laser diode modules features thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules have a 12-month warranty and are RoHS compliant.

These continuous wavelength laser modules have many configurations and provide elite performance in a compact package. The output options for this collection of laser modules include free-space or fiber-coupled. Other options include a break-out box, heatsinks, shutters, and power supplies. The key advantages for these modules include providing top-quality power electronics in the same housing while obtaining excellent output power and performance/price ratio.

These modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more.

0808L-11A-NI-NT-NF: Laser Diode Module, 808nm, 110mW, Free Space

Specifications

Center Wavelength: 0.808 um
Output Power: 110 mW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Fiber coupling options
  • Ultra-compact All-in-One design
  • Thermally stabilized optics
  • Monolithic design
  • Hermetically sealed
  • Automatic power control
  • 5V supply voltage (voltage is upconverted internally to make it suitable for various laser diodes)
  • Warranty: 12 months
  • RoHS compliance

Applications

  • Laser Diffraction Particle Analysis
  • Confocal Microscopy
  • Food Sorting
  • Flow Cytometry

Frequently Asked Questions

What is the wavelength of the 0808L-11A-NI-NT-NF laser diode module?
The wavelength of the 0808L-11A-NI-NT-NF laser diode module is 808nm.
What is the maximum output power of the 0808L-11A-NI-NT-NF laser diode module?
The maximum output power of the 0808L-11A-NI-NT-NF laser diode module is 110mW.
What is the warranty period for the Matchbox series modules?
The warranty period for the Matchbox series modules is 12 months.
What are the applications of the 0808L-11A-NI-NT-NF laser diode module?
The applications of the 0808L-11A-NI-NT-NF laser diode module include laser diffraction, particle analysis, confocal microscopy, food sorting, and flow cytometry.
What is the control interface type for the 0808L-11A-NI-NT-NF laser diode module?
The control interface type for the 0808L-11A-NI-NT-NF laser diode module is UART.

Got more questions? Use the inquiry form to ask the supplier directly.
