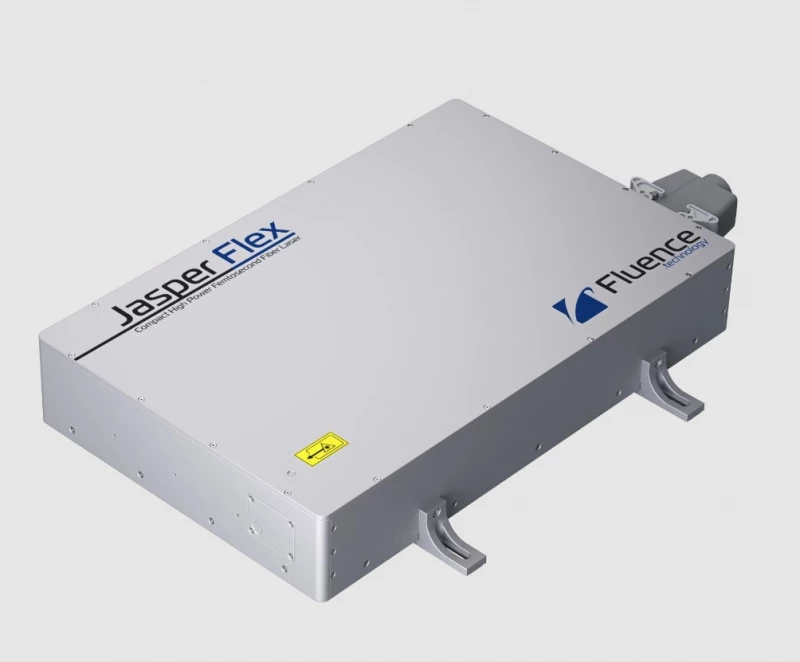

Jasper Flex Compact High Power Femtosecond Fiber Laser

Name: Jasper Flex Compact High Power Femtosecond Fiber Laser
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The Jasper Flex Compact High Power Femtosecond Fiber Laser is an advanced laser system designed for microprocessing applications across various industries. With its compact form factor and exceptional performance, it provides a versatile solution for precision material processing tasks.

Offering a maximum average power of 30 W and a pulse energy of up to 30 μJ at a base repetition rate of 20 MHz, the Jasper Flex delivers ultrafast pulses with a pulse duration of less than 270 fs, ensuring high precision and efficiency. Its user-configurable burst mode enhances processing capabilities, making it ideal for applications in consumer electronics manufacturing, integrated photonics, displays manufacturing, and more.

Equipped with advanced features such as external gating trigger and analog power modulation, along with included laser control software, the Jasper Flex offers unparalleled flexibility and control for demanding microprocessing tasks.

Specifications

Wavelength:	1030 nm
Repetition Rate:	20 MHz
Output Power:	30 W
Pulse Duration:	270 fs
Maximum Pulse Energy:	30 μJ
Beam Quality M²:	< 1.3
Output Beam Waist Diameter 1/e²:	2.0 ± 0.5 mm
Burst Mode For Process Enhancement:	Included
External Gating Trigger:	Included
Laser Control Software:	Included
Pulse On Demand:	Included
Size:	646 x 416 x 111 mm³
Power Supply Unit Size:	3U rack: 485 x 496 x 133 mm³
Electrical:	100 - 240 V AC, 50 - 60 Hz, < 300 W
Operating Temperature:	15-35 °C
Operating Humidity:	Non-condensing
Chiller Size:	6U 19" rack unit: 485 x 653 x 267 mm³

Download Data Sheet

Features

Maximum average power: 30 W (higher power available on request)

Maximum pulse energy: 30 μJ up to 1 MHz (higher energy available on request)

Base repetition rate: 20 ± 2 MHz

Pulse duration: < 270 fs FWHM (< 250 fs typical)

Central wavelength: 1030 ± 5 nm

Beam quality M²: < 1.3 (< 1.15 typical)

Burst mode for process enhancement

External gating trigger and analog power modulation

Laser control software included

Applications

Microprocessing in various industries

Consumer electronics manufacturing

Integrated photonics

Displays manufacturing

Ultrafast laser material processing

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the primary applications of the Jasper Flex Femtosecond Fiber Laser?

The Jasper Flex is ideal for a wide range of microprocessing applications, including but not limited to consumer electronics manufacturing, integrated photonics, and displays manufacturing. Its versatility makes it suitable for precision material processing tasks in various industries.

What is the maximum average power output of the Jasper Flex femtosecond fiber laser?

The Jasper Flex laser can deliver a maximum average power of 30 W, providing sufficient energy for demanding microprocessing applications.

What is the pulse energy and repetition rate range of the Jasper Flex compact high-power femtosecond fiber laser?

The Jasper Flex can achieve pulse energies of up to 30 μJ at a base repetition rate of 20 MHz. Additionally, it can operate in burst mode, delivering up to 100 μJ of energy at a repetition rate of 200 kHz.

Does the Jasper Flex compact fiber laser offer pulse duration tuning?

Yes, the Jasper Flex provides pulse duration tuning capability, allowing users to adjust the pulse duration from less than 270 fs to 8 ps using the included software.

What is the size and weight of the Jasper Flex femtosecond fiber laser system?

The Jasper Flex laser system has dimensions of 646 mm (L) x 416 mm (W) x 111 mm (H) and weighs approximately 9 kg, making it compact and easy to integrate into experimental setups or commercial systems.

Does the Jasper Flex come with software for laser control?

Yes, the Jasper Flex includes laser control software, providing users with comprehensive control over laser parameters and functionalities for precise microprocessing tasks.
