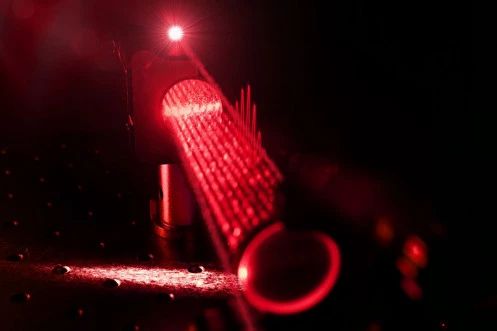

Thumbnail of 1µm / 2 µm -- 500 W High-Power Few-cycle CEP-stable Laser System photo 1

Description

Nonlinear compression is an elegant way to shorten the pulse duration of pulses beyond the capabilities of the employed laser gain medium. It is characterized by highest beam quality and stability, power scalability and high efficiency.

In addition, the technique perfectly fits to AFS fiber-based ultrafast laser systems in terms of mode-matching. The nonlinear-compression add-on can be applied to a large span of pulse energies ranging from µJ to several mJ, supports average powers in the kW-range and enables high quality few-cycle pulses when starting from pulses as long as 300 fs.

A stable carrier-envelope phase is a key requirement for many applications. In particular when working with few-cycle pulse durations it is often a necessity not only for atto-second science. AFS offers system designs enabling ultra-low CEP-noise for all our CPAs up to kW average power levels. Furthermore we can provide the required oscillators, detection and feedback system to keep the CEP noise at a minimum, enabling your applications.

1µm / 2 µm -- 500 W High-Power Few-cycle CEP-stable Laser System

Visit the Active Fiber Systems GmbH Store

Specifications

Wavelength: 1030 nm
Repetition Rate: 30 MHz
Output Power: 500 W
Pulse Duration: 10 fs
Pulse Energy: 5 mJ
CEP Noise: < 250 mrad

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

The following specs show only our exemplary main-platforms. We happily customize a system exactly to your needs.

  •  Pulse energy (output): up to 5 mJ / up to 8 mJ
  • Average power (output): up to 500 W / up to 800 W
  • Pulse duration: down to 6 fs / down to 38 fs
  • Central wavelength: 1030nm or 1950nm
  • Polarization: linear
  • Beam quality: close to diffraction-limited, M2 < 1.3
  • RIN slow:
    between 0.5% RMS …. 1.5%RMS [1/(24h)…1Hz], depending on driving laser
  • RIN fast:
    between 0.5% RMS …. 1.5%RMS [1Hz…frep/2], depending on driving laser
  • Beam pointing: < 10 µrad RMS
  • CEP-noise (with CEP-Addon): <250mrad [1mHz…frep/2] / typically not required

Applications

  • Nonlinear Compression
  • Nonlinear optics
  • Spectroscopy

Frequently Asked Questions

What is the beam quality of the laser system?
The beam quality is close to diffraction-limited, with an M2 value of less than 1.3.
What is the central wavelength of the laser system?
The central wavelength is either 1030nm or 1950nm (with reduced performance).
What is the CEP-noise of the laser system?
With the CEP-Addon, the CEP-noise is less than 250mrad for frequencies between 1mHz and frep/2, but it is typically not required.
What is the maximum pulse energy and average power output of the laser system?
The maximum pulse energy output is up to 5 mJ or 8 mJ, and the maximum average power output is up to 500 W or 800 W, depending on the configuration.
What is the pulse duration of the laser system?
The pulse duration can be as short as 6 fs or 38 fs, depending on the configuration.

Got more questions? Use the inquiry form to ask the supplier directly.
