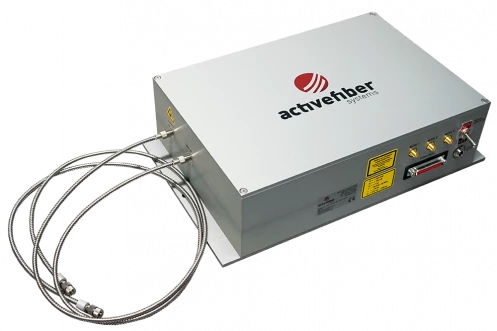

Thumbnail of 1µm -- 10 W Ultrafast Ytterbium Laser System photo 1

Description

The quality of any laser application crucially depends on the performance of the driving light source, i.e. the laser itself. In addition, most applications ask for more and more average power from the laser source to be cost-effective or sensitive enough.

AFS‘s ultrafast fiber lasers are characterized by an outstanding performance combined with flexibility and maximum stability. All essential parameters are software controlled and can be tuned over a wide range, making them an extremely valuable tool in many applications.

1µm -- 10 W Ultrafast Ytterbium Laser System

Visit the Active Fiber Systems GmbH Store

Specifications

Wavelength: 1030 nm
Repetition Rate: 30 MHz
Output Power: 10 W
Pulse Duration: 50 fs
Central Wavelength: 1020 nm… 1070 nm
Repetition Rate: Single shot … 80MHz
Pulse Energy: up to 150 nJ
Peak Power: up to 2.6 MW
Average Power: up to 10 W
Pulse Duration: 50 fs ... 100 ps adjustable
Polarization: linear
Beam Quality: Fiber-coupled or close to diffraction-limited, M² <1.2

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

The following specs show only our exemplary main-platforms. We happily customize a system exactly to your needs.

  • Central wavelength: 1020 nm - 1070 nm
  • Repetition rate: 50 kHz (or single pulse via Ext. AOM upgrade) up to 30 MHz, others on request
  • Pulse energy: up to 150 nJ
  • Average power: up to 10 W
  • Pulse duration: 50 fs ... 10 ps adjustable, others on request
  • Polarization: linear
  • Beam quality: close to diffraction-limited, M² < 1.2

Applications

  • Spectroscopy & microscopy
  • Laser seeding and OPA pumping
  • Materials processing

Frequently Asked Questions

What is the central wavelength range of the laser system?
The central wavelength range of the laser system is 1020 nm to 1070 nm.
What is the maximum average power that the laser system can provide?
The laser system can provide a maximum average power of up to 10 W.
Can the pulse duration of the laser system be adjusted?
Yes, the pulse duration of the laser system can be adjusted from 50 fs to 10 ps.
What is the beam quality of the laser system?
The laser system has a beam quality that is close to diffraction-limited, with an M² value of less than 1.2.
What are the additional features of the laser system?
The laser system has additional features such as turnkey reliability, software-controlled parameters, temperature stabilization, and a dust-sealed housing.

Got more questions? Use the inquiry form to ask the supplier directly.
