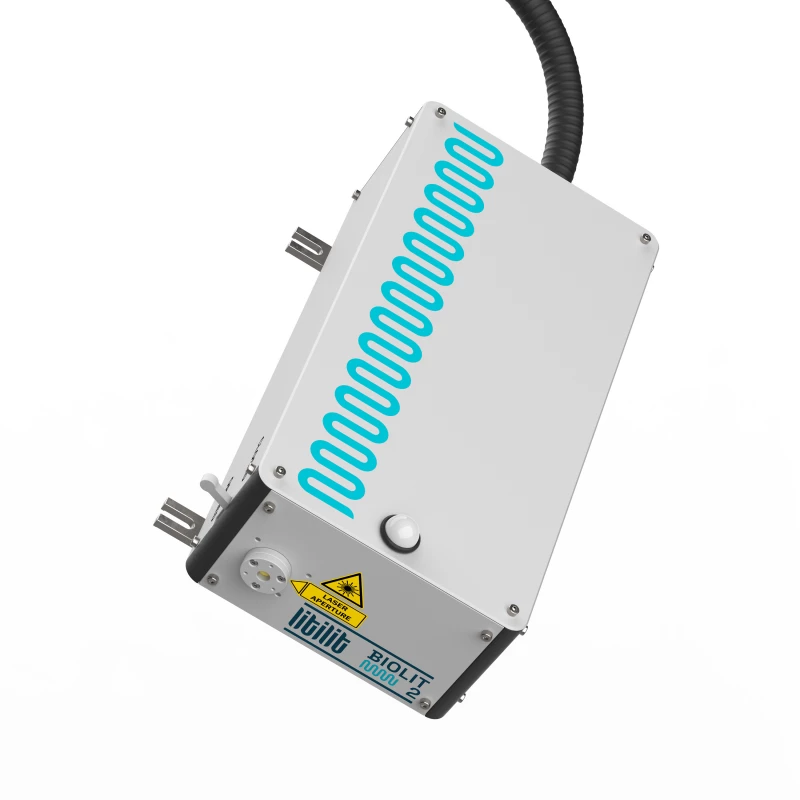

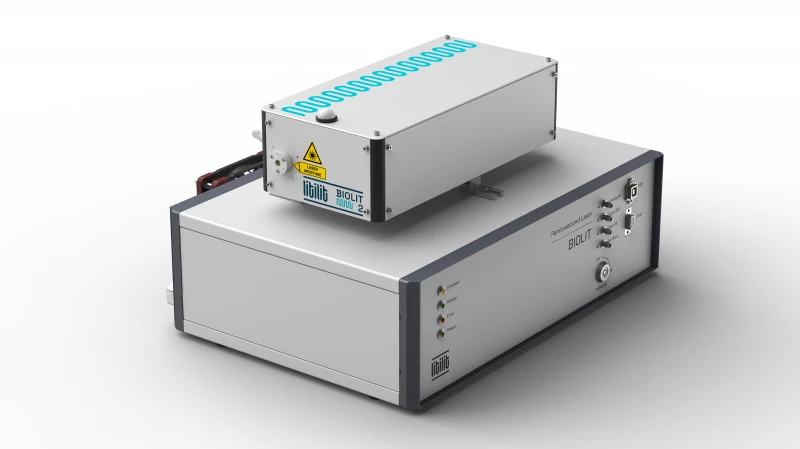

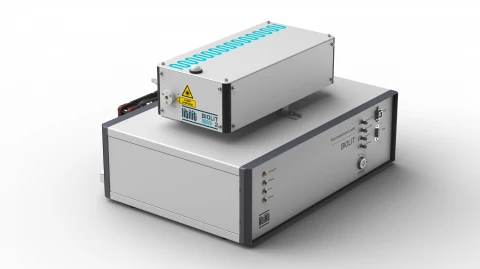

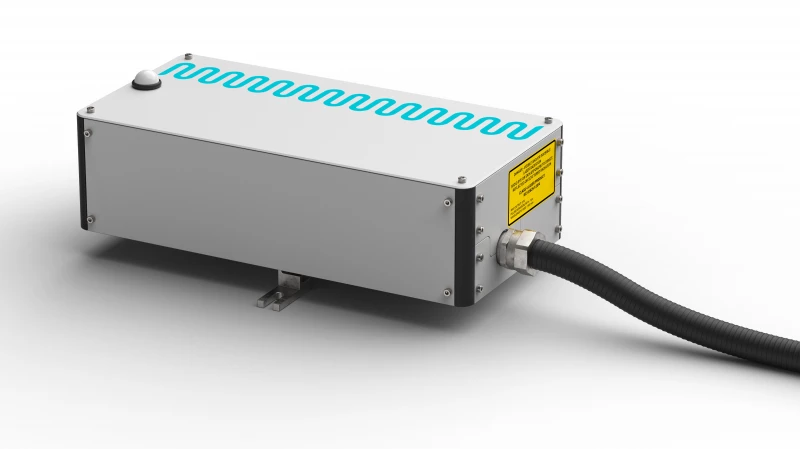

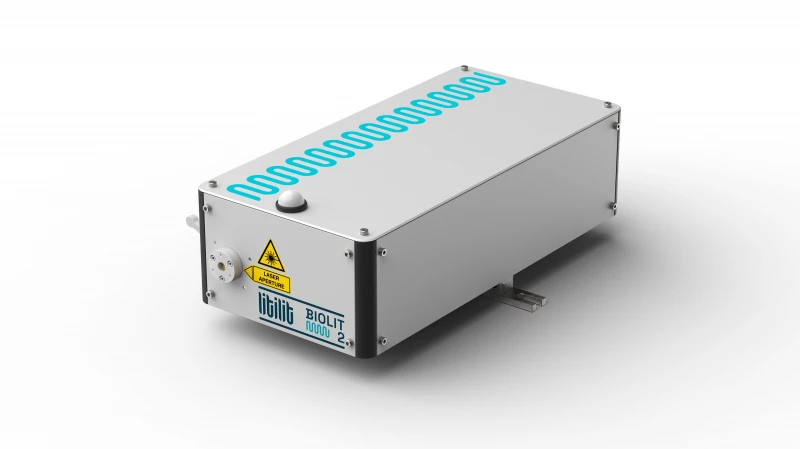

BIOLIT 2 Femtosecond fiber laser for biophotonics

Visit the Litilit Store

Specifications

Wavelength: 1050 nm
Repetition Rate: 15 MHz
Output Power: 2 W
Pulse Duration: 70 fs
Pulse Strehl Ratio: > 0.9
Tunable Dispersion Pre-compensation: -8 000 fs² ... +500 fs²
Pulse Repetition Rate: 15, 20, 30 or 40 MHz
Tunable Pulse Repetition Rate: Optional, 1 – 20 MHz
Beam Quality: M² < 1.2
Beam Circularity: > 0.9
Beam Diameter (1/e² Level): 1.5 ± 0.3 mm
Beam Pointing (pk-to-pk): < 20 μrad
Pulse Energy Stability (RMS): < 1 %
Warm Up Time (cold Start): < 10 min
Available Control Interfaces: USB, CAN
Powering Requirements: 100...240 V AC, 47...63 Hz
Operating Temperature: 18 – 30 °C
Dimensions Laser Head: 313 x 152 x 107 mm
Dimensions Control Unit: 449 x 370 x 140 mm
Document icon Download Data Sheet Download icon

Features


  • Integrated dispersion pre-compensation

  • Flexible repetition rate

  • Ultra short and clean pulses

  • Maintenance-free & turn-key

  • Robust and stable

Applications


  • Multiphoton microscopy

  • Photopolymerization

  • Ophthalmology

  • OPO pumping

  • Neuroscience
