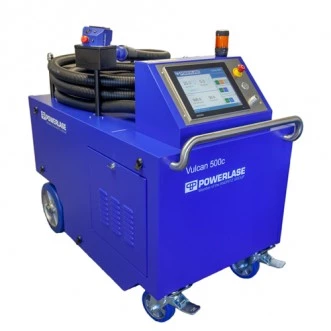

Vulcan 500c

ANDRITZ Powerlase
REQUEST QUOTE
Vulcan 500c

OVERVIEW

The Vulcan 500c system is a 500W pulsed fibre laser, paired with a robust galvanometer based, ergonomic hand-held, compact scan head. With flexible operational parameters, fibre laser reliability and high pulse energy, Vulcan 500c offers the best value in laser cleaning equipment. The unique hand-held galvanometer based scan head is an integral part of the package, allowing the user to tilt the output angle of the laser up to 90° to accommodate difficult working geometries. The Vulcan 500c offers state of the art universal control systems and simple synchronisation that will deliver faster processing and unlock the highest potential of laser based paint and coating removal and surface preparation.

SPECIFICATION

  • Wavelength: 1064 nm
  • Repetition Rate: 20 MHz
  • Output Power: 500 W
  • Pulse Duration: 50 fs
  • Pulse Energy (mJ): 40
  • Fibre Length (m): Up to 30 m
  • Handheld Minimum Spot Diameter (mm, 1/e2): 1.2
  • Scan Rate (m/sec): Max. 10
  • Scan Width (mm): Max. 60
  • Supply Voltage: 220 V ± 10% Single-Phase
  • Supply Frequency: 50 or 60 Hz
  • Nominal Power Consumption: 4 kVA
Download Data Sheet

Applications

Paint and Coating Removal
Rust Removal
Surface Activation
Oxidation Removal
Pre-Weld Preparation
Surface Cleaning and Restoration
Mold Cleaning

KEY FEATURES

Performance


Power (W) 500
Pulse duration (ns) 70 - 500 (adjustable)
Pulse energy (mJ) 40
Minimum Spot Diameter (mm, 1/e²) > 0.7
