Description
The quality of any laser application crucially depends on the performance of the driving light source, i.e. the laser itself. In addition, most applications ask for more and more average power from the laser source to be cost-effective or sensitive enough.
AFS‘s ultrafast fiber lasers are characterized by an outstanding performance combined with flexibility and maximum stability. All essential parameters are software controlled and can be tuned over a wide range, making them an extremely valuable tool in many applications.

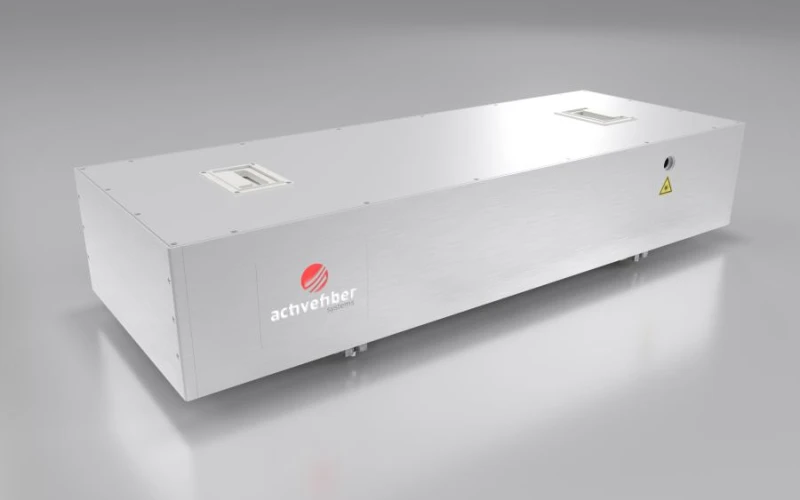

1030nm Ultrafast Fiber Laser
Specifications
| Wavelength: | 1030 nm |
|---|---|
| Repetition Rate: | 30 MHz |
| Output Power: | 60 W |
| Pulse Duration: | 250 fs |
| Central Wavelength: | approx. 1030nm |
| Repetition Rate: | 50 kHz (or single shot via Ext. AOM upgrade) up to 20MHz |
| Pulse Energy (Ytterbium-60): | up to 200µJ |
| Pulse Energy (Ytterbium-100): | up to 1 mJ |
| Peak Power (Ytterbium-60): | up to 0.5GW |
| Peak Power (Ytterbium-100): | up to 2.5GW |
| Average Power (Ytterbium-60): | up to 60W |
| Average Power (Ytterbium-100): | up to 100W |
| Pulse Duration: | <250fs ... 5ps adjustable |
| Polarization: | linear |
| Beam Quality: | close to diffraction-limited, M² <1.2 |
| RIN Slow (Average Power): | <0.5% RMS |
| RIN Fast (Pulse Energy): | <0.5% RMS |
| Beam Pointing: | <10µrad RMS (<5% nat. divergence) |
| Beam Diameter: | approx. 3mm |
| Dimensions Laser (Ytterbium-60): | 112cm ×41cm ×25cm |
| Dimensions Laser (Ytterbium-100): | 132cm ×41cm ×30cm |
| Mass (Ytterbium-60): | approx. 80kg |
| Mass (Ytterbium-100): | approx. 90kg |
Download Data Sheet
Features
The following specs show only our exemplary main-platforms. We happily customize a system exactly to your needs.
- Central wavelength: approx. 1030 nm
- Repetition rate: 50 kHz (or single pulse via Ext. AOM upgrade) up to 20 MHz, others on request
- Pulse energy: up to 200 µJ
- Peak power: up to 0.5 GW
- Average power: up to 60 W
- Pulse duration: < 250 fs ... 5 ps adjustable, others on request
- Polarization: linear
- Beam quality: close to diffraction-limited, M² < 1.2
- RIN slow (Average Power): < 0.5% RMS [1/ (24 hours) ... 1 Hz]
- RIN fast (Pulse energy): < 0.5% RMS [1 Hz … frep/2]
- Beam pointing: < 10 µrad RMS (< 5% nat. divergence)
- Beam diameter: approx. 3 mm
- Dimensions laser (W×D×H): 112 cm × 41 cm × 25 cm
- Mass: approx. 80 kg
- Addons: OPA, SHG, THG, HHG, Few-cycle generation, CEP-stability, GHz-Burst
- Logging: Logging of all operation parameters via control software, remote monitoring and service access
- Additional features: Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing
Applications
- Driver for photo-emission-spectroscopy setups
- Pumping of optical parametric amplifiers (OPA)
- Generation of high harmonics (HHG)
- Materials processing
- Pump-probe experiments
- THz generation
Frequently Asked Questions
What is the central wavelength of the laser system?
The central wavelength of the laser system is approximately 1030 nm.
What is the average power output of the laser system?
The laser system has an average power output of up to 60 W.
Can the pulse duration be adjusted?
Yes, the pulse duration of the laser system can be adjusted from < 250 fs to 5 ps.
What is the beam quality of the laser system?
The beam quality of the laser system is close to diffraction-limited, with an M² value of less than 1.2.
What are some of the applications of this laser system?
The laser system can be used as a driver for photo-emission-spectroscopy setups, pumping of optical parametric amplifiers (OPA), generation of high harmonics (HHG), and materials processing.
