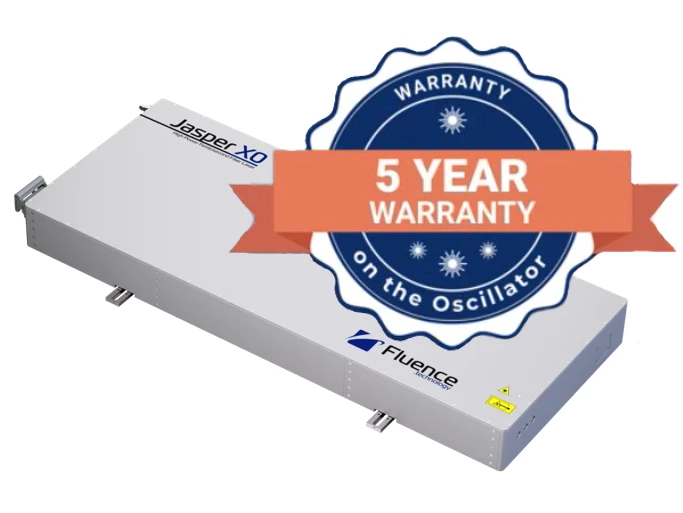

Jasper X0-10 High Power Femtosecond Fiber Laser

Specifications

Wavelength: 1030 nm
Repetition Rate: 0.2 MHz
Output Power: 10 W
Pulse Duration: 270 fs
Maximum Pulse Energy: 50 μJ
Optional Wavelength Outputs: With Harmonic Generation Module (HGM): 515 nm, 343 nm, 258 nm (available upon request)
Built-in Pulse Picker: Pulse on demand, any division of the base repetition rate
Beam Quality M²: < 1.3
Output Beam Diameter 1/e²: 2.5 ± 0.5 mm
Polarization: Linear, vertical
Burst Mode For Process Enhancement: Included
External Gating Trigger: Included
Laser Control Software: Included
Size: 1096 x 446 x 100 mm³
Electrical: 100 - 240 V AC, 50 - 60 Hz, < 620 W
Operating Temperature: 15-35 °C
Operating Humidity: Non-condensing
Chiller Size: 6U 19 mm³
Document icon Download Data Sheet Download icon

Features


  • Maximum average power: 10 W, 20 W, 30 W, or 60 W options

  • Maximum pulse energy: 50 µJ, 100 µJ, or 200 µJ

  • Base repetition rate: 20 ± 2 MHz

  • Pulse duration: < 270 fs – 8 ps

  • Beam quality M²: < 1.3 (< 1.15 typical)

  • Pulse on demand with any division of the base repetition rate

  • External gating trigger and burst mode for process enhancement

Applications


  • Ultrafast laser processing in industrial manufacturing

  • High-resolution imaging and microscopy in research laboratories

  • Precision material ablation and microstructuring

  • Time-resolved spectroscopy and pump-probe experiments

  • Advanced medical procedures and ophthalmic surgeries
