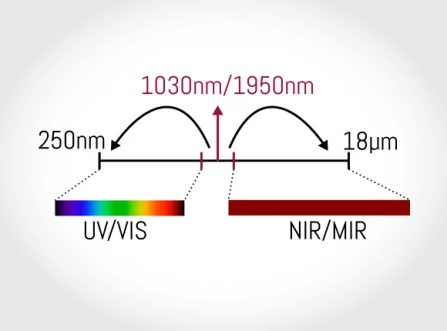

Thumbnail of Few-Cycle MIR Source photo 1

Description

Frequency combs in the molecular finger-print region have enabled applications in metrology, spectroscopy and medicine. All these applications benefit from higher average powers that allow for faster acquisition rates and an improved signal-to-noise ratio.  This extension complements the compact 50fs-thulium-doped ultrafast fiber laser system and provides a high-power frequency comb in the mid-IR.

The ultrafast mid-IR pulses are achieved through intra-pulse difference-frequency generation, which guarantees passive carrier-envelope-offset stability. The complete frequency-comb nature of the source can be achieved by controlling and stabilizing the fundamental pulse-repetition frequency of the driving laser.

Few-Cycle MIR Source

Visit the Active Fiber Systems GmbH Store

Specifications

Wavelength: 5000 nm
Repetition Rate: 30 MHz
Output Power: 0.1 W
Pulse Duration: 35 fs
Spectral Range: 5 - 18 µm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

The following specs show only our main platform. We happily customize a system exactly to your needs.

  • Central wavelength: 5 µm - 18 µm (tunable)
  • Pulse repetition rate: 20 MHz (others on request)
  • Average power: up to 100 mW
  • Polarization: linear
  • Beam quality: Close to diffraction-limited, M² < 1.3
  • Average-power stability: < 1 % RMS
  • Pulse-energy stability: < 1 % RMS
  • Beam pointing: < 10 µradRMS
  • Addional features: Turnkey reliability, temperature-stabilized and dust-sealed housing

Applications

  • Metrology: Utilize frequency combs in the molecular fingerprint region for precise measurements.
  • Spectroscopy: Benefit from higher average powers for faster acquisition rates and improved signal-to-noise ratio.
  • Medicine: Enhanced signal quality for medical imaging and diagnostics.
  • Mid-IR Frequency Comb: Achieve high-power frequency comb in the mid-IR through intra-pulse difference-frequency generation.
  • Pulse Stability: Ensure passive carrier-envelope-offset stability.
  • Customizable Systems: Tailor systems to specific needs with options for OPA and MID-IR add-ons.
  • Frequency Conversion to VIS and UV: Convert wavelengths to VIS or UV range with integrated modules.
  • SHG, THG, FHG: Achieve second, third, and fourth harmonic generation with customizable conversion efficiencies.

Frequently Asked Questions

Can the MIR source be customized to specific needs?
Yes, the MIR source can be customized to specific needs.
What is the average power of the MIR source?
The average power of the MIR source is up to 100 mW.
What is the average-power stability of the MIR source?
The average-power stability of the MIR source is < 1 % RMS.
What is the central wavelength range of the MIR source?
The central wavelength range of the MIR source is 5 µm - 18 µm (tunable).
What is the polarization of the MIR source?
The polarization of the MIR source is linear.

Got more questions? Use the inquiry form to ask the supplier directly.
