Description
The Lumibird CVFL-GIGA are frequency converted Ytterbium doped fiber lasers emitting at
a design fixed wavelength from 520nm up to 590nm.
The design is composed by an all-fiber laser cavity emitting in the IR range and a frequency
conversion module which converts IR laser to visible laser. The frequency conversion
module is a single pass periodically poled crystal integrated in a dust free mechanical
package. This frequency conversion module is very compact and might be placed up to 3
meters ahead from the laser box. No active cooling is required for the module.
These fiber lasers represent a very reliable, robust and stable solution compare to other
DPSS technologies.

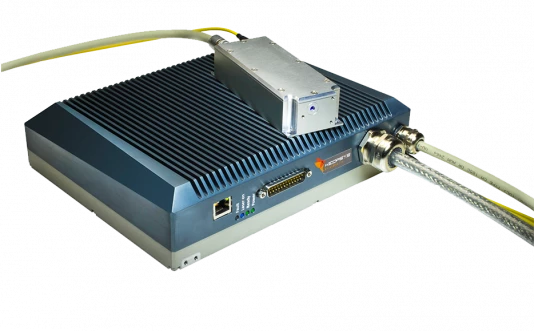

CVFL-GIGA 5xx series - Visible Fiber Lasers for Biotechnology
Specifications
| Center Wavelength: | 520 nm |
|---|---|
| Output Power: | 3 W |
| Beam Quality (M^2): | 1.2 |
Download Data Sheet
Features
• Output power up to 3 W
• 520, 532, 546, 560 and 577 standard wavelengths
• 20 GHz linewidth
• Linear polarization
• Short modulated pulse option
• Optional Limited longitudinal mode number operation
• Diffraction limited output
• Robust and reliable
• Turn-key system
Applications
• Super-resolution microscopy
• DNA sequencing
• Medical application (ophthalmology and dermatology)
• Laser shows
• Laser Doppler Velocimetry
Frequently Asked Questions
What is the wavelength range of the CVFL-GIGA 5xx series fiber lasers?
How is the frequency conversion module of the CVFL-GIGA 5xx series designed?
Can the frequency conversion module be placed far from the laser box?
Is active cooling required for the frequency conversion module?
What are the applications of the CVFL-GIGA 5xx series fiber lasers?
