CEFL-TERA - CW Erbium Fiber Laser

Keopsys by Lumibird
REQUEST QUOTE

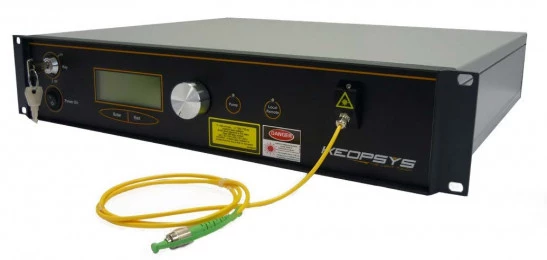

CEFL-TERA - CW Erbium Fiber Laser

OVERVIEW

CEFL-TERA is CW Erbium fiber laser delivering up to 30 W in random or linear polarization. This laser is a perfect tool for wide range of applications. It offers a cost effective and no maintenance solution. It is also straightforward to use it, thanks to the instinctive front panel; in 5 minutes you are ready to work.


CEFL-TERA series are compact CW Erbium doped fiber lasers delivering up to 30 W in random or linear polarization. These lasers, with line width of few nanometers, provide a perfect diffraction limited beam and an excellent power stability.


CEFL-TERA can be modulated with an external TTL signal up to 10 kHz. The Keopsys VSP patented technology, with no optical part to align provide high reliability, robustness and maintenance free devices. These lasers are therefore perfect tools for passive fiber optics component testing, laser trapping, spectroscopy and skin treatment. Coming with two formats benchtop or OEM module, CEFL-TERA required no installation and no water for cooling.

SPECIFICATION

  • Wavelength: 1532/1535/1550 nm
  • Output Power: From 1 to 30 W
  • Beam Quality (M^2): < 1.1
  • Operation Mode: Continuous Wave (CW), Modulated
  • Linewidth (FWHM): < 1 nm
Download Data Sheet

Applications

• Optical component testing
• Laser trapping spectroscopy
• Medical (dermatology)
• Heating
• OPO and Thulium fiber pumping

KEY FEATURES

• 1532,1535, 1550 nm operating wavelength
• Output power up to 30W
• Linewidth of a few nm
• Diffraction limited output
• Amplitude modulation (optional)
• Random or linear polarization
• High wall-plug efficiency
• Maintenance free
