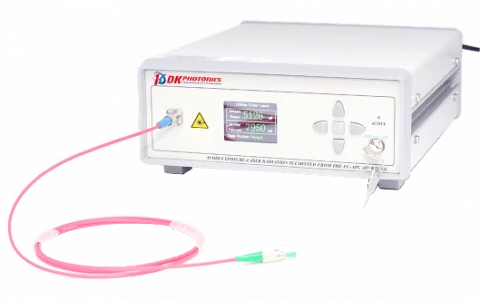

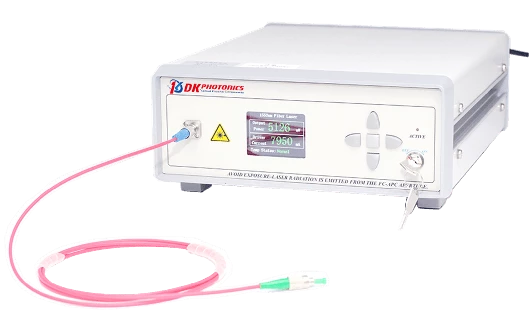

Thumbnail of 793nm/808nm/976nm MM Fiber Coupled High Power Pump Laser photo 1

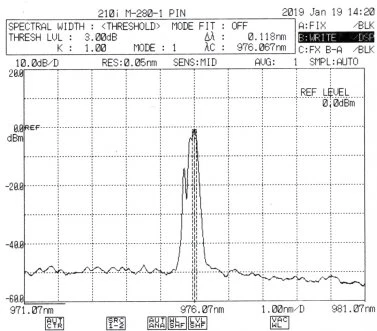

Thumbnail of 793nm/808nm/976nm MM Fiber Coupled High Power Pump Laser photo 2

Description

793/808/915/976/1064 nm MM Fiber Coupled High Power Pump Laser

The 793/808/915/976/1064 nm MM Fiber Coupled High Power Pump Laser from DK Photonics is an industrial-grade pump source designed to drive modern fiber laser systems and demanding laboratory setups. Built around a high-performance semiconductor laser chip and a carefully engineered constant current driver with TEC temperature control, this laser delivers stable high optical power through a 105/125 µm multimode fiber. With available output powers of 5 W, 10 W, 25 W, and 50 W, it is well suited for fiber laser pumping, medical and biomedical research, materials processing, and a wide range of OEM integration tasks that require reliable, long-term operation.

The laser operates at popular pump wavelengths (793, 808, 915, 976, and 1064 nm), making it compatible with a broad spectrum of doped fiber gain media commonly used in high-power fiber lasers, amplifiers, and solid-state laser pumping. Thanks to its integrated TEC regulation and constant current drive electronics, the unit offers excellent power and spectrum stability, with long-term power fluctuations within approximately 3% over 8 hours and wavelength stability within ±3% (typical) of the nominal center wavelength. This performance aligns with pump modules used in high-end fiber laser systems worldwide, where stable, repeatable operation is critical for both research and production environments.

Output is delivered via a 105/125 µm multimode fiber with a numerical aperture of 0.22, providing efficient coupling into fiber laser cavities, combiners, and delivery fibers commonly found in industrial and scientific setups. The standard configuration uses bare fiber output, which is preferred for permanent integration and splicing into larger systems. For lower-power configurations where quick connect/disconnect is desirable, an SMA optical connector can be optionally specified. This flexibility allows the module to be adapted to both fixed, high-throughput installations and more dynamic laboratory configurations where reconfiguration is frequent.

To accommodate different integration scenarios, the pump laser is available in both desktop and compact module versions. The desktop version includes button control on the front panel and an integrated universal AC power supply (100–240 V AC), making it ideal for standalone use on optical benches, in university labs, and in R&D facilities. The module version is optimized for OEM and system-level integration, powered from a 12 V DC supply with lower power consumption, and controlled via an RS232 communication interface through a DB9 connector. This modular design enables straightforward embedding into larger fiber laser platforms, medical systems, or process tools while retaining precise control over output power and operating conditions.

The robust thermal and mechanical design supports continuous operation over a wide environmental range, with an operating temperature window from -5 °C to +55 °C and humidity from 0% to 70%. Such resilience makes the pump laser suitable not only for controlled laboratory environments but also for more demanding industrial and field-deployed systems. In applications such as materials processing, laser marking, precision cutting, or medical and biomedical instrumentation, stability of both power and spectrum is essential to ensure consistent process quality and reproducible experimental results. This pump laser addresses these needs with carefully controlled drive electronics and thermal management, comparable to similar high-power MM fiber-coupled pump sources used across leading photonics and fiber laser platforms.

With a well-defined ordering structure covering wavelength, power level, fiber type, and package format, the series can be easily configured for specific system requirements. Users can select the wavelength that best matches their doped fiber or solid-state gain medium, choose the required output power to achieve the desired system performance, and specify either the desktop or module form factor based on whether plug-and-play operation or full OEM integration is preferred. For specialized or non-standard configurations, custom options are also supported, enabling tailoring of parameters such as output power, packaging, or interface to fit unique research and industrial needs. The result is a versatile, high-reliability pump platform for building and upgrading fiber lasers, amplifiers, and advanced photonic systems.

793nm/808nm/976nm MM Fiber Coupled High Power Pump Laser

Visit the DK Photonics Store

Specifications

Center Wavelength: 915 nm
Output Power: 50 W
Output Mode: Continuous Wave (CW)
Spectral Linewidth: 6 nm
Output Power Stability: 2% ~ 3%
Output Fiber Type: MMF
Interface: RS-232
Cooling: Air Cooled
Electrical Requirements: 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz
Central Wavelength Options: 793, 808, 976 nm
Wavelength Accuracy: ±3 %
Spectral Width: 3 nm
Output Power Options: 5, 10, 25, 50 mW
Short-term Stability (15 Minutes): ≤ ±0.02 dB
Long-term Stability (8 Hours): ≤ ±0.05 dB
Fiber Type: 105/125μm MM fiber, NA 0.22
Optical Connector: Bare fiber output

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Output Power up to 50 W
    Delivers 5 W, 10 W, 25 W, or 50 W of multimode fiber‑coupled output power for demanding pumping, processing, and research applications.
  • Multiple High‑Power Pump Wavelengths
    Available at 793 nm, 808 nm, 915 nm, 976 nm, and 1064 nm to cover the most common fiber laser and solid‑state laser pump bands.
  • Power Stability: ≤1% (Short‑Term), ≤3% (Long‑Term)
    Short‑term power fluctuation ≤±0.02 dB over 15 minutes and long‑term stability ≤±0.05 dB over 8 hours ensure reliable, drift‑free operation.
  • Excellent Spectral Stability
    Wavelength accuracy of ±3 nm for 793/808/976 nm and ±10 nm for 915 nm with narrow spectral width (≈3–6 nm) for efficient absorption in pumped gain media.
  • High‑Brightness MM Fiber‑Coupled Output
    Uses 105/125 μm multimode fiber, NA 0.22 for efficient coupling to fiber lasers, delivering a robust, alignment‑free beam to your system.
  • Flexible Package Options: Desktop or Module
    Choice of desktop unit (260 × 320 × 120 mm) with front‑panel control or compact module (125 × 150 × 20 mm) for OEM integration and system embedding.
  • Constant‑Current Driving with TEC Temperature Control
    Professionally designed constant‑current driver and integrated TEC maintain optimal chip temperature for maximum lifetime, stability, and reliability.
  • Industrial‑Grade Electrical Interfaces
    Desktop version powered from 100–240 V AC (<120 W); module version accepts 12 V DC (<60 W), simplifying integration in laboratory and industrial environments.
  • Serial Communication and PC Monitoring
    Module control via RS‑232 (DB9 female) and available PC monitoring software for real‑time power, temperature, and status supervision and remote control.
  • Robust Fiber Output Options
    Standard bare fiber output for maximum flexibility; optional SMA connector at lower powers for quick plug‑and‑play integration with existing setups.
  • Wide Operating Temperature and Humidity Ranges
    Operates from −5 to +55 °C and 0–70% humidity, suitable for both laboratory and industrial environments with stable performance.
  • Optimized for Fiber Laser Pumping
    Specifically designed as a high‑reliability pump source for Yb‑doped, Nd‑doped, and other rare‑earth‑doped fiber lasers and fiber amplifiers at 793–1064 nm.
  • Ideal for Medical, Biomedical, and Scientific Research
    Well suited for biomedical science, medical research, fluorescence excitation, spectroscopy, and imaging applications requiring stable, high‑power diode lasers.
  • Suitable for Materials Processing and Industrial Use
    Supports material laser processing tasks such as marking, micro‑machining, and pumping of high‑power fiber lasers used in cutting and welding.
  • Customizable Configurations
    Output power, wavelength, package style, and fiber interface can be custom‑engineered to meet specific OEM or research requirements.
  • Designed for Long Lifetime and Reliability
    Based on high‑performance semiconductor laser chips with optimized thermal and electrical management to ensure long‑term, maintenance‑free operation.
  • Compact, Space‑Saving Design
    Low‑profile module form factor (125 × 150 × 20 mm) is ideal where space is limited, enabling easy integration into portable or rack‑mounted laser systems.
  • Turn‑Key Desktop Operation
    Desktop version provides button‑based control and integrated power supply for immediate, plug‑and‑play use in labs and production lines.

Applications

Applications of 793/808/915/976/1064nm MM Fiber Coupled High Power Pump Lasers
  • Fiber Laser Pumping
    • High-brightness pump source for ytterbium-doped fiber lasers (YDFL) at 915/976 nm
    • Pumping of erbium-ytterbium co-doped fiber lasers and amplifiers
    • Seed and power-stage pumping in high-power CW and quasi-CW fiber laser systems
    • Laser pumping for industrial fiber laser modules used in cutting, welding, and marking
    • Pump source for ultrafast and mode-locked fiber lasers (e.g., 1 µm and 1.06 µm regimes)
    • Pumping of double-clad fibers requiring 105/125 µm, NA 0.22 multimode input
  • Materials Processing and Manufacturing
    • Indirect pump laser source for high-power fiber laser cutting systems
    • Metal welding, soldering, and brazing via pumped fiber laser heads
    • Surface treatment, cladding, and hardening using fiber-delivered laser beams
    • Precision laser micromachining, drilling, and scribing of metals and ceramics
    • Laser marking, engraving, and coding in production lines
    • Plastic welding and polymer processing using near-infrared fiber laser outputs
  • Biomedical and Life Science Applications
    • Excitation source for medical fiber lasers used in surgery and therapy
    • Pump laser for medical-grade solid-state or fiber-based laser platforms
    • Near-infrared light sources for photothermal therapy and tissue coagulation (with appropriate system integration)
    • Biomedical imaging illumination (OCT, NIR imaging, and spectroscopy systems)
    • Endoscopic and minimally invasive fiber-delivered laser treatments
    • Laser-based fluorescence excitation and pump-probe experiments in biophotonics research
  • Scientific Research and Laboratory Use
    • General-purpose high-power pump laser for university and R&D fiber laser setups
    • Development of new doped-fiber designs and pump schemes (793, 808, 915, 976, 1064 nm)
    • Nonlinear optics experiments (supercontinuum generation, frequency conversion) using pumped fibers
    • Pump source for Raman fiber lasers and Raman amplifiers
    • Optical parametric oscillator (OPO) and optical parametric amplifier (OPA) pumping (via suitable gain media)
    • Spectroscopic light source for absorption, fluorescence, and photoluminescence studies
  • Telecommunications and Optical Amplification
    • Pump laser for high-power erbium-doped fiber amplifiers (EDFA) at 980/1480 nm via 915/976 nm pumped stages
    • Pump source for high-bit-rate and long-haul optical communication testbeds
    • Laboratory EDFA/Raman amplifier prototyping and qualification
    • Optical network component burn-in and reliability testing using high-power NIR pump light
  • Laser Pumping of Solid-State Gain Media
    • 808 nm and 793 nm pumping of Nd-doped solid-state lasers (e.g., Nd:YAG, Nd:YVO4)
    • Pump source for eye-safe OPOs and 1.5–2 µm solid-state lasers via 793/808 nm pumped gain media
    • Diode-pumped solid-state (DPSS) laser modules for industrial and medical platforms
  • Security, Defense, and LIDAR-Related Systems
    • Pump source for high-energy fiber lasers used in directed energy and defense R&D
    • High-power NIR source for range-finding, LIDAR transmitter pumping, and target designation (within integrated systems)
    • Simulation and testing of electro-optical sensors and infrared detector arrays
  • Testing, Burn-In, and Component Qualification
    • High-stability NIR source for reliability testing of optical fibers and passive components
    • Burn-in and stress testing of fiber connectors, couplers, combiners, and isolators
    • Qualification of high-power handling of fiber delivery systems and collimators
    • Calibration and performance verification of high-power optical power meters and sensors
  • Instrumentation and Illumination
    • High-brightness illumination for machine vision and inspection systems (through appropriate optics and safety measures)
    • Near-infrared illumination for scientific cameras and sensor calibration
    • Pump or excitation source in analytical instruments such as spectrometers and fluorimeters

Frequently Asked Questions

What is the DK Photonics 793/808/915/976 nm MM Fiber Coupled High Power Pump Laser and what are its main features?
The DK Photonics MM Fiber Coupled High Power Pump Laser is a high‑performance semiconductor diode laser source with multimode fiber-coupled output, designed primarily for pumping fiber lasers and for use in biomedical and materials processing applications. It is available at key pump wavelengths of 793 nm, 808 nm, 915 nm, 976 nm, and 1064 nm, with typical output powers of 5 W, 10 W, 25 W, and 50 W (higher or custom powers can be requested). The laser uses a constant-current driver and TEC (thermoelectric cooler) control to ensure power fluctuation below 3% and wavelength stability of ±3 nm (±10% wavelength accuracy for 915 nm). It comes with a 105/125 µm multimode fiber with NA 0.22 and offers either bare fiber output (with an optional SMA connector for low power versions), and is available in both compact module and benchtop (desktop) packages.
What are the typical applications of this multimode fiber coupled high power pump laser?
This MM fiber coupled high power pump laser is mainly used as a pump source for fiber lasers and fiber amplifiers, a common use case in industrial and scientific systems. Typical applications include: 1) Fiber laser pumping at 793 nm, 808 nm, 915 nm, 976 nm, and 1064 nm; 2) Biomedical and life science applications, such as fluorescence excitation, optical trapping setups, and phototherapy systems where high-power diode sources are needed; 3) Materials processing, including plastics welding, soldering, thin-film processing, and as a pump for high-power ytterbium- or erbium-doped fiber lasers used in cutting, marking, and engraving; and 4) General laboratory research and production testing that require stable, high-power, fiber-delivered diode light sources. Similar high‑power multimode pump modules found on FindLight and other laser marketplaces are used in essentially the same application areas.
What configuration options are available for wavelengths, output power, and package type?
The product is organized using a part number format P/N: ①-②-③-④-⑤, where each field corresponds to a specific configuration. ① is the product series (MMHPL – Multimode High Power Pump Laser). ② is the operation wavelength, which can be selected from 793, 808, 915, 976, or 1064 nm. ③ is the output power, with standard options of 5 W, 10 W, 25 W, and 50 W; custom power levels can be requested. ④ specifies the fiber type; the standard is MM 105/125 µm multimode fiber with NA 0.22. ⑤ is the package type: "M" for compact module and "B" for desktop (benchtop) unit. In addition to these standard options, DK Photonics can customize some parameters on request, which is consistent with similar high-power pump diode modules listed on FindLight and other laser suppliers.
What are the key optical and stability specifications of this high power pump diode?
For the standard configurations, the center wavelength options are 793 nm, 808 nm, 915 nm, 976 nm, and 1064 nm. The wavelength tolerance is typically ±3 nm for the 793, 808, 976, and 1064 nm versions, while the 915 nm version is specified with ±10% accuracy. The spectral width is about 3 nm (typical) for 793/808/976 nm models and about 6 nm for 915 nm versions, which is typical for high-power multimode pump diodes used for fiber laser pumping. Output power can be 5, 10, 25, or 50 W (and customized levels) at the fiber output. The short‑term power stability over 15 minutes is ≤ ±0.02 dB (about 1%), and the long‑term stability over 8 hours is ≤ ±0.05 dB (about 3%), which is in line with or better than many comparable multimode pump modules on the market. The fiber output is through a 105/125 µm multimode fiber with NA 0.22, with bare fiber as standard and an optional SMA connector available for low‑power models.
What are the differences between the desktop (benchtop) and module versions, and how are they controlled?
Both the desktop and module versions share the same core laser diode and optical performance but differ in form factor, user interface, and power input. The desktop (benchtop) version integrates its own AC power supply and front-panel controls. It operates from 100–240 V AC with power consumption below 120 W. Control is via front-panel buttons, making it suitable for laboratories and test setups where manual operation is needed. The module version is a compact OEM unit meant for integration into larger systems. It typically runs from a 12 V DC supply with consumption under 60 W. Control and monitoring are performed digitally through an RS‑232 interface, using a DB9 female connector (or other serial/PC interface as specified). DK Photonics also offers PC monitoring software, which allows remote control and real-time monitoring of parameters such as drive current, output power, and temperature, similar to other OEM pump diode modules available on FindLight and from global laser manufacturers.
What are the electrical and environmental operating conditions for this pump laser?
The pump laser is designed for reliable operation in standard laboratory and light industrial environments. The operating temperature range is −5 °C to +55 °C, which allows use in slightly cooled or elevated temperature environments when proper ventilation is provided, matching ranges seen in many comparable pump diode modules. The allowable operating humidity range is 0–70% (non‑condensing recommended). The desktop version is powered by 100–240 V AC mains and consumes less than 120 W, while the module version operates from a 12 V DC supply and draws less than 60 W. As with similar high‑power multimode pump diodes, users should avoid condensation, ensure good thermal management, and respect any derating that DK Photonics may specify for continuous full‑power operation near the temperature extremes.
How do I order or customize a DK Photonics MM fiber coupled high power pump laser, and what information should I provide?
To order a standard configuration, you select the part number according to the format ①-②-③-④-⑤. For example, a typical code might specify the MMHPL series, a given wavelength (e.g., 976 nm), the desired output power (e.g., 25 W), the standard MM 105/125 µm fiber, and the package type (module or desktop). When sending an inquiry, it is recommended that you provide the full P/N along with a clear written description of your needs (wavelength, power, fiber length and connector, package type, and control interface). For custom configurations—such as non‑standard power levels, special fiber types, different fiber lengths, or alternative connectors—DK Photonics asks that you provide detailed requirements so they can confirm feasibility, price, and lead time. This process is similar to ordering other custom pump diode modules listed on FindLight and from other manufacturers: specify wavelength, output power, fiber core/cladding/NA, connector type, package/footprint, operating mode (CW or pulsed, if applicable), and any integration or control interface preferences.

Got more questions? Use the inquiry form to ask the supplier directly.
