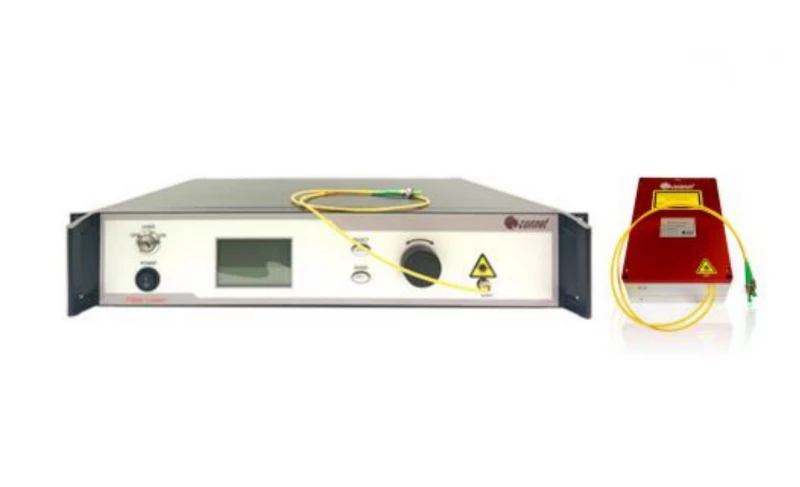

1.5um Single-Mode CW Fiber Laser 200mW-15W

Name: 1.5um Single-Mode CW Fiber Laser 200mW-15W
Brand: Connet Laser Technology Co., Ltd.
Availability: InStock

Description

The 1.5um Single-mode CW Fiber Laser by Connet is a high-power, eye-safe fiber laser. With its all-fiber integrated design and double cladding fiber pumping technology, this laser delivers high-performance output power up to 200mW-15W while maintaining near diffraction-limited beam quality. It is suitable for various applications in scientific research, experimental teaching, and device testing.

The laser features a microprocessor-based control system, offering stability, long lifetime, and easy maintenance. The LCD on the front panel provides real-time display of operating status and temperature, along with warning messages. The modular package option allows for seamless system integration.

Specifications

Center Wavelength:	1550 nm
Output Power:	15 W
Output Mode:	Continuous Wave (CW)
Beam Quality (M^2):	1.1
Spectral Linewidth:	1 nm
Output Power Stability:	0.5% ~ 0.6%
Output Fiber Type:	SM Fiber, Other / Non-specified
Output Fiber Length:	1 m
Interface:	Other / Not-specified
Cooling:	Other
Electrical Requirements:	110V - 60Hz, 240V - 50Hz
Side-mode Suppression Ratio (SMSR):	>35 dB
Output Power Adjustable Range:	100 %
Polarization:	Random
Output Isolation:	35 dB
Return Loss:	40 dB
Operating Temperature (Module):	-35 to +50 °C
Operating Temperature (Benchtop):	0 to +30 ℃
Storage Temperature:	-40 to +85 ℃
Operating Voltage (Module):	12-24 VDC
Optical Connector:	FC/APC (other options available)
Dimension (Benchtop):	430 x 450 x 105 mm
Dimension (Module):	200 x 135 x 41 mm

Download Data Sheet

Features

High-power output up to 15W

Excellent beam quality with a near diffraction-limited profile (M2 < 1.1)

Stable operation in continuous wave (CW) mode

Random polarization (Linear polarization optional)

Output power stability of ±0.5% (15-minute stability) and ±1.0% (8-hour stability)

Output isolation of 35dB

Wide operating temperature range (-35°C to 50°C for module, 0°C to 30°C for benchtop)

Compact dimensions: 200X135X41mm (module), 430X450X105mm (benchtop)

Applications

Telecommunication

Material processing

Medical procedures

Test and measurement

Scientific research

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Connet Laser Technology Co., Ltd.

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the applications of the Connet 1.5um CW fiber laser?

The lasers can be widely used in the areas of scientific research, experimental teaching, device testing, telecommunication, material processing, medical procedures, and test and measurement.

What is the beam quality of the Connet 1.5um CW fiber laser?

The near diffraction-limited beam quality can be achieved at the same time.

What is the control system used in the Connet 1.5um CW fiber laser?

Connet 1.5um CW fiber laser employs the control system based on microprocessor which has stable property, long lifetime and free maintenance.

What is the output power range of the Connet 1.5um CW fiber laser?

The output power can be up to 200mW-15W.

What is the polarization of the output of the Connet 1.5um CW fiber laser?

The polarization is random, but linear polarization is optional.
