Description
The Connet 1532nm high power CW fiber laser is a reliable and stable laser system that offers high output power of up to 30W. With its narrow spectral width and near single-mode beam quality, it is suitable for various applications in the fields of remote sensing, LiDAR, scientific research, industrial processes, and more.
The laser adopts an all-fiber integrated design and features a user-friendly interface with real-time display and alarm capabilities.

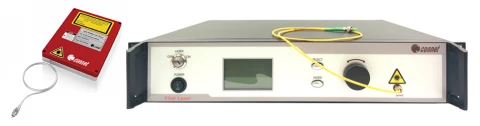

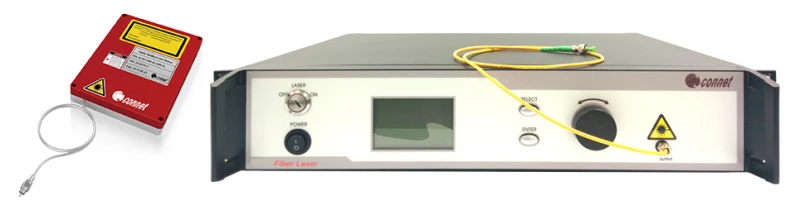

1532nm High Power CW Fiber Laser
Specifications
Center Wavelength: | 1532 nm |
---|---|
Output Power: | 30 W |
Output Mode: | Continuous Wave (CW) |
Beam Quality (M^2): | 1.2 |
Spectral Linewidth: | 1 nm |
Output Power Stability: | 0.5% ~ 0.6%, 1% ~ 1.25% |
Output Fiber Type: | Other / Non-specified |
Output Fiber Length: | 1 m |
Interface: | Other / Not-specified |
Cooling: | Other |
Electrical Requirements: | 110V - 60Hz, 240V - 50Hz |
Output Power Adjustable Range: | 10-100 % |
Side-mode Suppression Ratio (SMSR): | 35 dB |
Polarization: | Random |
Return Loss: | 40 dB |
Operating Temperature (Module): | -30 to +70 °C |
Operating Temperature (Benchtop): | 0 to +30 °C |
Storage Temperature: | +10 to +54 °C |
Operating Voltage (Module): | 12-24 VDC |
Optical Connector: | FC/APC (other options available) |
Dimension (Benchtop): | 510 (L) x 480 (W) x 150 (H) mm |
Dimension (Module): | 320 (L) x 200 (W) x 120 (H) mm |
Features
- High output power of up to 30W
- Excellent beam quality with near single-mode output
- Stable and maintenance-free operation
- All-fiber integrated design
- Optional linear polarization for enhanced performance
- User-friendly interface with real-time display and alarm functions
- Modular package available for system integration
Applications
- LiDAR (Light Detection and Ranging)
- Remote sensing
- Test and measurement
- Pump source for fiber lasers and amplifiers
- Scientific research and experimentation
Frequently Asked Questions
Is the Connet 1532nm high power CW fiber laser stable and maintenance-free?
Yes, the Connet 1532nm high power CW fiber laser is stable and maintenance-free due to the applied microprocessor-based control systems.
What are the applications of the Connet 1532nm high power CW fiber laser?
The Connet 1532nm high power CW fiber laser is suitable for LiDAR, remote sensing, test and measurement, pump source, and other scientific research applications.
What is the beam quality of the Connet 1532nm high power CW fiber laser?
The Connet 1532nm high power CW fiber laser has a near single-mode beam quality with an M2 value of 1.3.
What is the maximum output power of the Connet 1532nm high power CW fiber laser?
The Connet 1532nm high power CW fiber laser has a maximum output power of 30W.
What is the wavelength range of the Connet 1532nm high power CW fiber laser?
The Connet 1532nm high power CW fiber laser operates at a wavelength of 1532nm.
