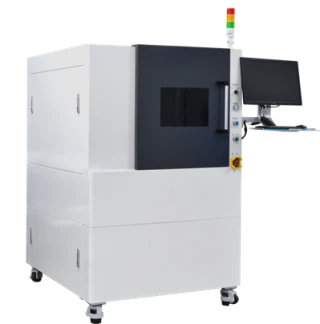

Veshay WXR-220US Single Platform PCB Laser Depaneling Machine PCB Laser Cutting System

Veshay WXR-220US Single Platform PCB Laser Depaneling Machine PCB Laser Cutting System

Inquire Price
Sold by: Dongguan Veshay Laser Technology Co., Ltd Ships from: China
Specifications
Work Area / Panel Length: 500 mm
Work Area / Panel Width: 350 mm
Work Area / Panel Thickness (Max): 1 mm
Scan Field: 50 x 50 mm^2
Scan Speed: 3000 mm/sec
Double Platform High Precision PCB Laser Depaneling Machine: Veshay WXR-220UD

Double Platform High Precision PCB Laser Depaneling Machine: Veshay WXR-220UD

Inquire Price
Sold by: Dongguan Veshay Laser Technology Co., Ltd Ships from: China
Specifications
Work Area / Panel Length: 300 mm
Work Area / Panel Width: 500 mm
Work Area / Panel Thickness (Max): 2 mm
Scan Field: Other (see specs)
Scan Speed: 300 mm/sec

Did You Know?

Laser Depaneling Machines (also known as PCB Depaneling Machines) are special laser cutting systems to carefully detach printed circuit boards (PCBs) from the panel they are printed on. In mass manufacturing PCBs are printed on a relatively large panel with batches. To make individual circuit boards those units need to be cut out (“depaneled”) from the array of circuits on the panel. Thanks to advances of laser as well as laser beam delivery technologies PCB laser depaneling has become the current standard in electronic manufacturing industry. The cutting precision offered by current laser sources offers unmatched precision in the slicing process. Availability of sources in a wide spectral range from UV to IR ensures operating capability on nearly any surface. Similarly, laser beam delivery technology offer X-Y-Z scanning capabilities with micron level precision.

Related Resources

Frequently Asked Questions

One of the most cutting-edge methods for separating printed circuit boards (PCBs) from the entire panel of arrays is referred to as laser depaneling. Printed circuit boards (PCBs) that have already been manufactured in arrays on large panels require a careful separation before they can be used as individual electronic components. Laser depaneling machines are specially designed laser cutters with CNC capabilities that allow an automated cutting (detachment) of PCBs from larger panels

Precision and Efficiency: The Role of Laser Depaneling Machines in Modern Electronics Manufacturing

In the rapidly evolving electronics industry, the demand for precision, efficiency, and reliability has never been higher. Laser depaneling machines have emerged as a critical solution, offering unparalleled accuracy and speed in separating individual printed circuit boards (PCBs) from larger panels.​

Understanding Laser Depaneling

Laser depaneling is a non-contact method that utilizes focused laser beams to cut PCBs from a fabricated panel. Unlike traditional mechanical methods, such as routing or die-cutting, laser depaneling eliminates physical stress on the boards, reducing the risk of damage to delicate components.​

The process involves directing a laser beam along predefined paths, precisely cutting through the substrate material. This technique ensures clean edges, minimal thermal impact, and high repeatability, making it ideal for complex and sensitive electronic assemblies.​

Advantages of Laser Depaneling Machines

  • High Precision: Laser depaneling achieves micron-level accuracy, essential for densely populated and miniaturized PCBs.​

  • Stress-Free Processing: The non-contact nature of laser cutting prevents mechanical stress, preserving the integrity of components and solder joints.​

  • Versatility: Capable of handling various materials, including FR4, polyimide, ceramics, and flexible PCBs, laser depaneling machines cater to diverse manufacturing needs.​

  • Clean and Burr-Free Edges: The precision of laser cutting results in smooth edges without burrs, reducing the need for post-processing.​

  • Reduced Waste: The accuracy of laser depaneling minimizes material waste, contributing to cost savings and environmental sustainability.​

Applications Across Industries

Laser depaneling machines are integral to numerous sectors:​

  • Consumer Electronics: Manufacturing smartphones, tablets, and wearable devices that require compact and intricate PCBs.​

  • Automotive Industry: Producing electronic control units and sensor modules with high reliability standards.​

  • Medical Devices: Creating precise and reliable PCBs for diagnostic equipment and implantable devices.​

  • Aerospace and Defense: Fabricating complex electronic systems where precision and durability are paramount.​

Selecting the Right Laser Depaneling Machine

When choosing a laser depaneling machine, consider the following factors:

  • Material Compatibility: Ensure the machine can process the specific materials used in your PCBs.​

  • Laser Type: Different lasers (e.g., UV, CO₂, fiber) offer varying advantages depending on the application.​

  • Cutting Speed and Accuracy: Evaluate the machine's performance metrics to match your production requirements.​

  • Automation and Integration: Look for machines that can seamlessly integrate into existing production lines and offer automation features.​

  • Maintenance and Support: Consider the availability of technical support and the ease of maintenance to ensure long-term reliability.​

Conclusion

Laser depaneling machines represent a significant advancement in PCB manufacturing, offering unmatched precision, efficiency, and flexibility. By adopting this technology, manufacturers can enhance product quality, reduce operational costs, and meet the growing demands of modern electronics production. Explore the range of laser depaneling machines on FindLight to find the solution that best fits your operational needs.
