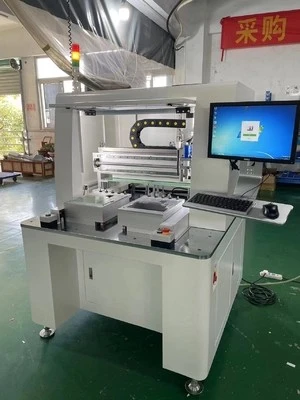

Customized PCB Routing Machine PCB Router,PCB Depaneling Router System,PCB Thickness 0.5-3.5mm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
东莞市创威智能装备有限公司 -
On FindLight:
since 2025
Description
PCB Separator Routing Solutions with KAVO Spindle at 60000RPM Specifications:
Model CW-F01-S
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm
Customized PCB Routing Machine PCB Router,PCB Depaneling Router System,PCB Thickness 0.5-3.5mm
Specifications |
|
|---|---|
| Work Area / Panel Length: | 350 mm |
| Work Area / Panel Width: | 350 mm |
| Work Area / Panel Thickness (Max): | 3 mm |
| Scan Field: | > 250 x 250 mm^2 |
| Panel Material: | FR4, Ceramics, Metal, Rigid PCB, Double-Sided PCB |
| Model Number: | CW-F01-S |
| Machine Weight: | 650 kg |
Features
Large range of panel size up to 650 mm x 500 mm
Powerful servo motors powered axis
CE Certification (Option) Dual Vacuum Blow
Applications
printed circuit board router,
pcb depaneling router,
automatic router machine
