Description

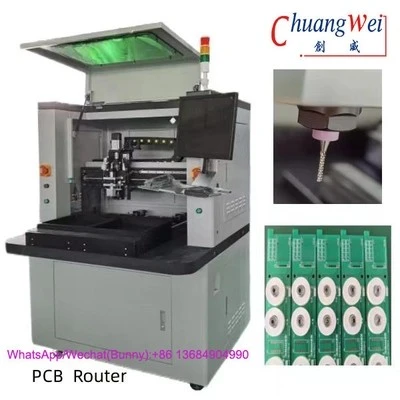

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCB in its two table configuration with maximum panel size of 650mm x 500mm.
Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.
Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot
东莞市创威智能装备有限公司
Specifications
| Work Area / Panel Length: | 400 mm |
|---|---|
| Work Area / Panel Width: | 400 mm |
| Work Area / Panel Thickness (Max): | 3 mm |
| Scan Field: | > 250 x 250 mm^2 |
| Scan Speed: | 300 mm/sec |
| Laser Output Power: | Not Specified |
| Laser Wavelength: | Not Specified |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | 50 um |
| Panel Material: | FR4, Ceramics, Metal, Rigid PCB, Double-Sided PCB |
Download Data Sheet
Features
- Condition: NEW
- Manufacturer: ChuangWei
- Model: CW-F01-S
- Designed for depaneling of Printed Circuit Boards and PCB panels
- For high volume and low mix production runs
- PCB sizes: 50x50mm to 650*500mm, 3mm thick max.
- Stress-free breakout and safe board handling without compromising panels
- Dust collection built-in
- Panels enter on conveyor, Servo-driven router under board runs automatically
- Gripping fingers remove routed boards to a pallet on an outfeed conveyor
- Controlled by Windows PC in machine's base
- May be programmed to carry out pre-handling and checks using tools, manipulators, and Vision system
- Pick & Place gantry travel: X (manually adjustable), Y 725mm, Z 75mm (pneumatic)
- Router speed: 1500mm/s slew, 75mm/s routing
- Automatic broken bit detection
- SMEMA transfer protocol
- Camera aided teaching system
- Tool life and vacuum bag tracking
Applications
- PCB depaneling
