SMT PCB Router Machine PCB Depanelizer with Cutting Accuracy 25um 1 Mil
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
东莞市创威智能装备有限公司 -
On FindLight:
since 2025
Description

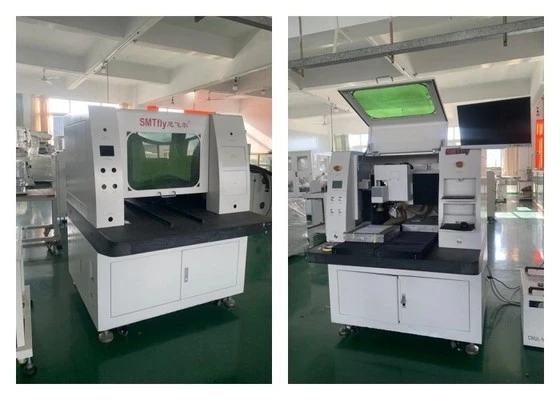

PCB Rouer Machine and Laser Depaneling Machine
The laser depaneling machine is a software-controlled machine used for depaneling FR4 and FPCs. It can cut a variety of materials and comes with a friendly working environment and a large cutting area, making it suitable for online or offline PCB laser depaneling.
This laser PCB depaneling machine is unique in that it can precisely and accurately cut PCB boards while minimizing the risk of damaging delicate components. Its advanced laser technology and high-speed cutting speed make it ideal for high-volume production runs.
The laser depaneling machine is the perfect addition to any PCB manufacturer's production line as it helps reduce costs and improve efficiency. It is easy to use and maintain and provides a reliable and cost-effective solution for depaneling FR4 and FPCs.
SMT PCB Router Machine PCB Depanelizer with Cutting Accuracy 25um 1 Mil
Specifications |
|
|---|---|
| Work Area / Panel Length: | 300 mm |
| Work Area / Panel Width: | 300 mm |
| Work Area / Panel Thickness (Max): | Not Specified |
| Scan Field: | Other (see specs) |
| Scan Speed: | 2500 mm/sec |
| Laser Output Power: | 355 W |
| Laser Wavelength: | Not Specified |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | 25 um |
| Panel Material: | FR4, Rigid PCB |
Features
Product name: Laser depaneling machine
Voltage: 220V 380V
Maximum working area (X x Y x Z): 300x300x11 mm, 400mmX300mm (customizable)
Cutting depth: high depth
Control system: software control
Cutting area: large area
Precision: high precision
Application: online or offline PCB laser depaneling machine
Applications
The Chuangwei Laser Depaneling Machine is an advanced tool for precise, high-speed cutting of printed circuit boards (PCBs). It enables you to achieve extraordinary cutting quality with clamping tolerances as low as 50 microns. This laser pcb depaneling machine offers many advantages, including automatic vision positioning and excellent cutting finish. The cutting edge is smooth and the cutting depth is high.
The Chuangwei Laser Depaneling Machine is widely used in the electronics industry for cutting and separating PCBs. It is ideal for applications that require high-precision cutting, such as in industries such as mobile phones, medical devices, and automobiles. It can quickly and accurately separate components from PCBs, allowing the creation of complex designs. The machine is easy to operate and has a low cost of ownership.
The Chuangwei Laser Depaneling Machine comes with a CE certificate and the minimum order quantity is 1 set. The price is negotiable and each set is packed in a plywood box. The delivery time is 10 days and payment can be made by T/T, Western Union, and Letter of Credit. The company has an impressive supply capacity of up to 260 sets per month.
