PCB Depaneling Equipment V-Cut PCB Separator with CE ISO Certification Details
1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be sheared safely
3. Shearing process without vibrations due to pneumatic drive unit

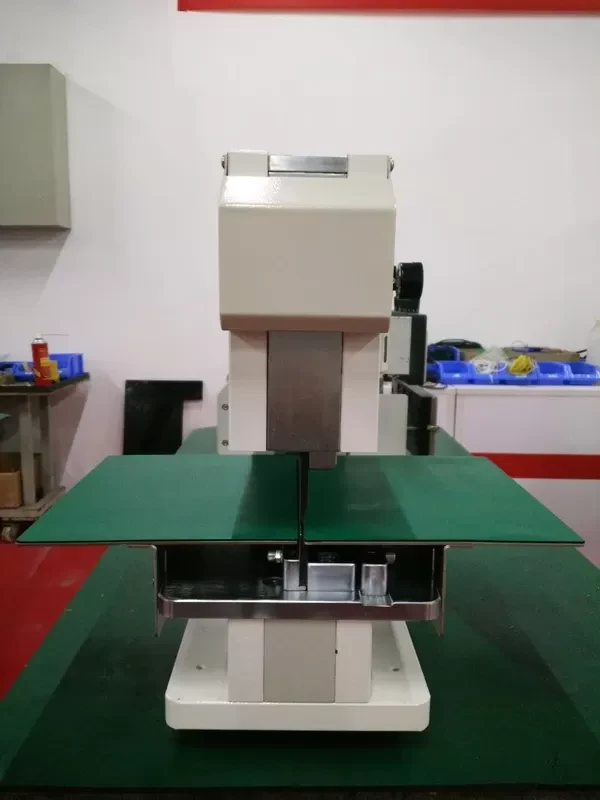

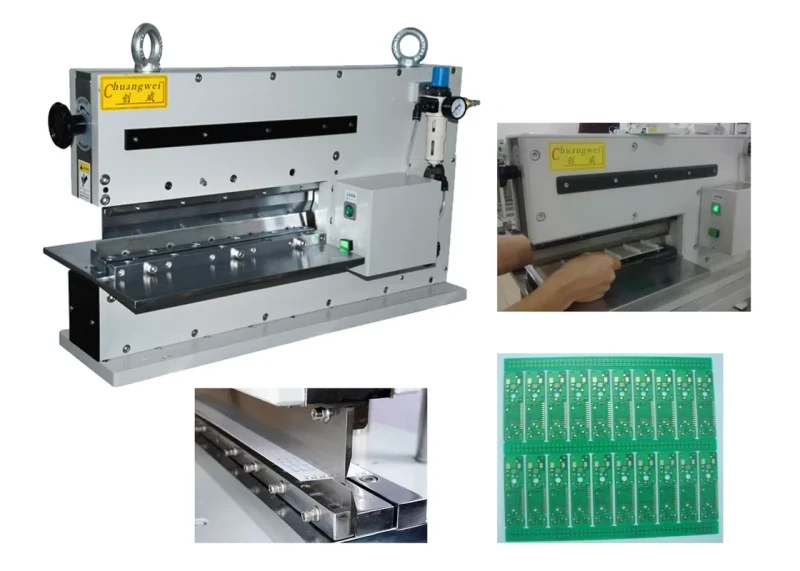

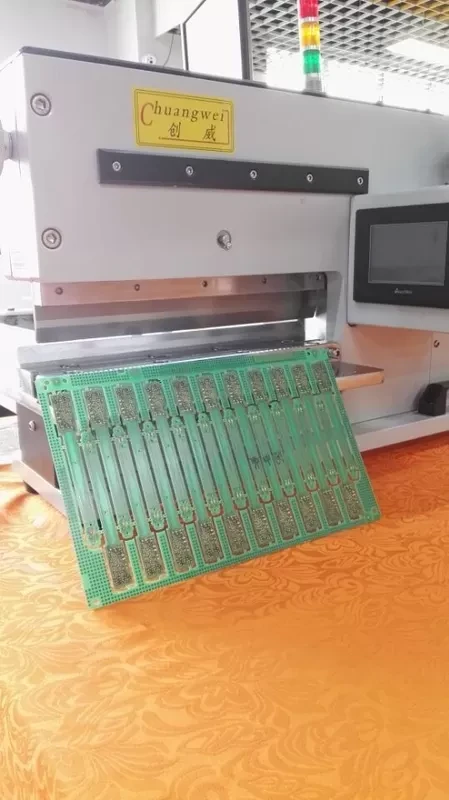

PCB Depaneling Equipment V-Cut PCB Separator with CE ISO Certification
东莞市创威智能装备有限公司
Specifications
| Work Area / Panel Length: | Not Specified |
|---|---|
| Work Area / Panel Width: | Not Specified |
| Work Area / Panel Thickness (Max): | 3.5 mm |
| Scan Field: | Not specified |
| Scan Speed: | Not Specified |
| Laser Output Power: | Not Specified |
| Laser Wavelength: | Not Specified |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | Not Specified |
| Panel Material: | FPCB, Rigid PCB, Double-Sided PCB |

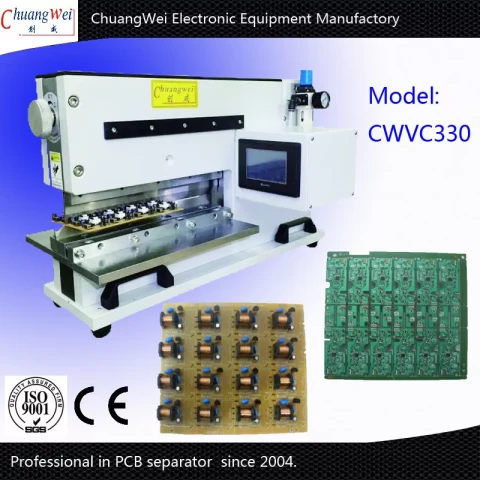

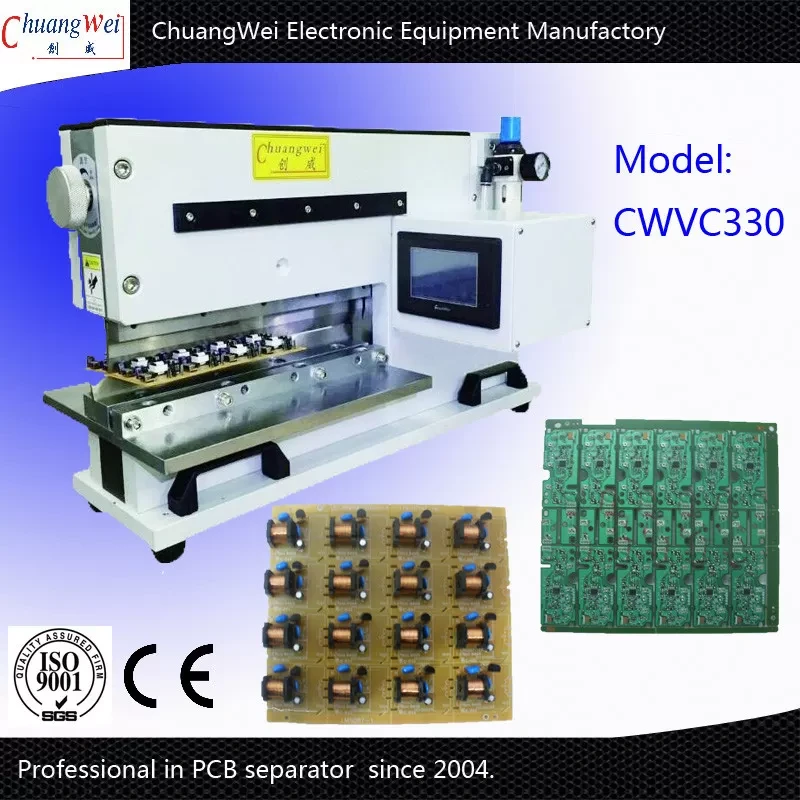

| Model: | CWVC-330 |
| Max. PCB Shearing Length: | 330mm (Can also be custom made) |
| Voltage: | 110V/220V |
| Power: | 10W |
| Working Air Pressure: | 0.5-0.7Mpa |
| Dimensions: | 620*230*400mm |
| Weight: | 165kg |
Download Data Sheet
Features
- Pneumatically driven and electromagnetic valve control.
- Shearing process without vibrations due to pneumatic drive unit .
- Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
- Shearing operation is that operator stamps the foot pedal to shear PCB.
- Highest components near the v groove of PCB can be up to 70mm.
- The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
- Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
