Large Area PCB Depaneling Machine for FR4 / FPC 355nm Laser Wavelength
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
东莞市创威智能装备有限公司 -
On FindLight:
since 2025
Description

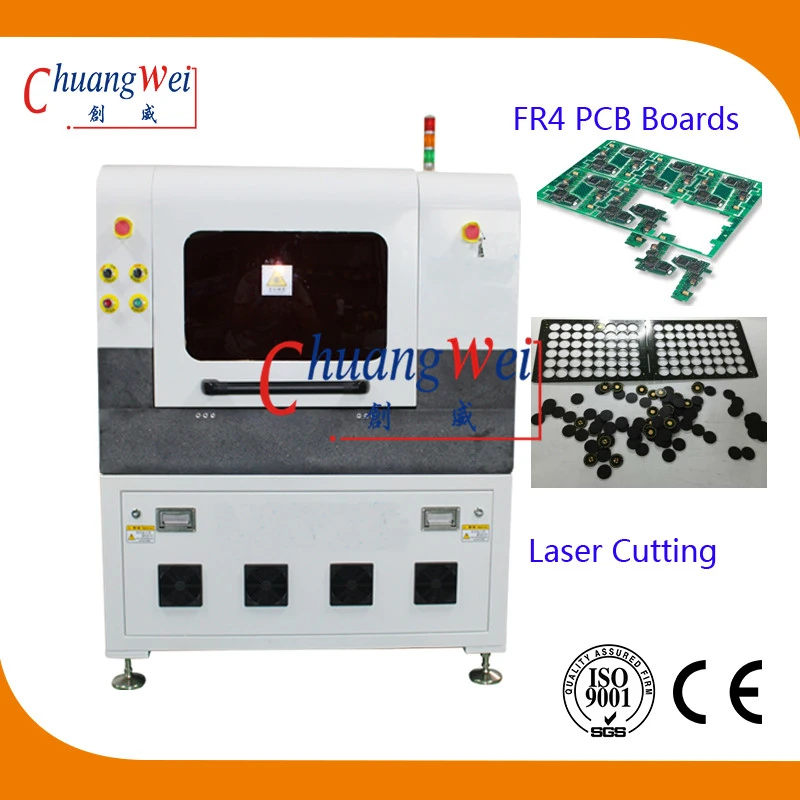

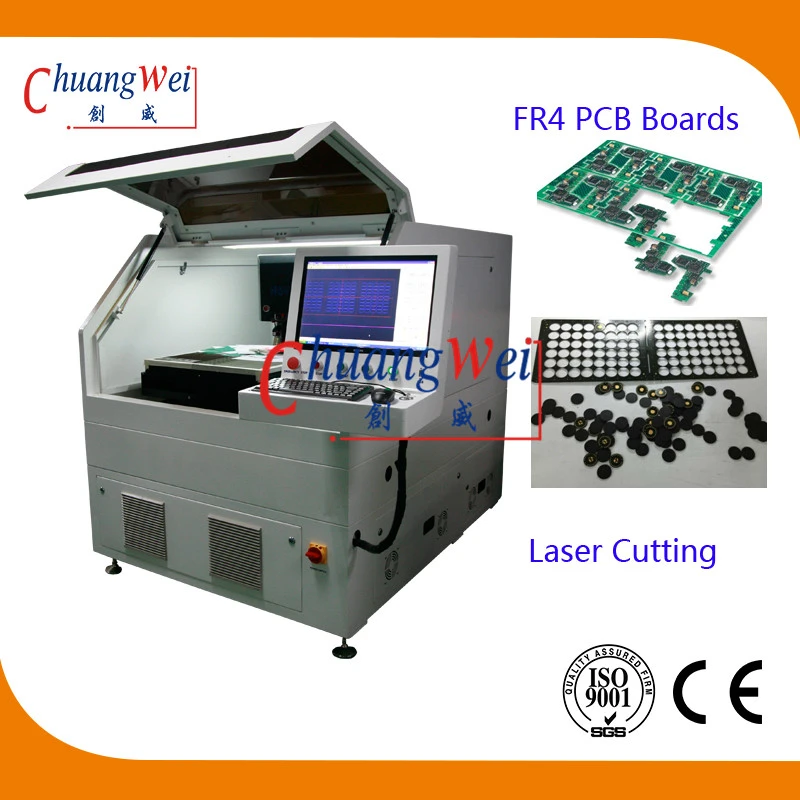

This Laser Depaneling Machine is a powerful and advanced pcb separator machine, pcb board cutting machine and pcb cutter machine. It is designed to provide high depth cutting, software-controlled operations and depaneling of FR4/FPC materials. The machine is equipped with 10W/12W/15W/18W@30KHz laser power and the maximum working area (X x Y x Z) is 300 x 300 x 11 mm, 400 mm x 300 mm (customizable). It is an ideal choice for performing quick and precise pcb depaneling.
Large Area PCB Depaneling Machine for FR4 / FPC 355nm Laser Wavelength
Specifications |
|
|---|---|
| Work Area / Panel Length: | 400 mm |
| Work Area / Panel Width: | 300 mm |
| Work Area / Panel Thickness (Max): | Not Specified |
| Scan Field: | Other (see specs) |
| Scan Speed: | 2500 mm/sec |
| Laser Output Power: | 18 W |
| Laser Wavelength: | 355 nm |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | Not Specified |
| Panel Material: | FR4, FPCB, Rigid PCB, Double-Sided PCB |
Features
- Operating Environment: Friendly Environment
- Safety Protection: High Safety Protection
- Cutting Area: Large Area
- Laser Wavelength: 355nm
- PCB Depaneling Equipment: Yes
- PCB Separator Machine: Yes
- PCB Cutter Machine: Yes
- Laser Wavelength: 355nm
- Cutting Edge: Smooth
- Laser Scanning Speed: 2500mm/s (max) High Speed
- Laser Power Options: 10W/12W/15W/18W@30KHz
- Laser: Optowave
- Control System: Software-controlled
- Voltage: AC 110V/220V
- Operating Environment: Friendly Environment
- Max. working area (X x Y x Z): 300x300x11 mm, 400mmX300mm (customizable)
- Type: Laser Depaneling Machine
Applications
Chuangwei Laser Depaneling Machine is an indispensable tool for the production of printed circuit boards (PCB). It is a cutting-edge device which is designed to cut through multiple layers of FR4/FPC with high accuracy and precision. It is equipped with a 10W/12W/15W/18W@30KHz laser that operates at 355nm wavelength, allowing it to accurately and efficiently depanel large areas with high cutting depth.
It is CE certified and meets the highest quality and safety standards. Every set of Chuangwei Laser Depaneling Machine is packed in a plywood case and can be delivered within 10 days after payment.
The price is negotiable and the supply ability is 260 sets per month. The main application of the machine is to separate PCBs from their panels and cut them into individual components. This process is critical to the production of PCBs and Chuangwei Laser Depaneling Machine is ideal for PCB board cutting machine, pcb separator machine and other related applications. It is a reliable and cost-effective device that can help improve efficiency and reduce production costs.
Frequently Asked Questions
The Laser Depaneling Machine is a kind of machine used for cutting and depaneling PCB boards with high precision and efficiency.
The brand name of the Laser Depaneling Machine is Chuangwei.
The Laser Depaneling Machine is made in China.
