Description

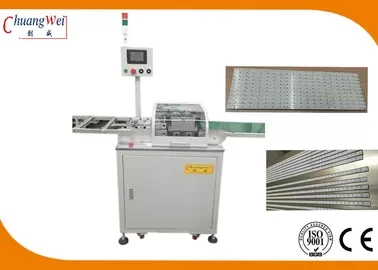

LED Multi Group Multi Blade PCB Cutting Machine
This is LED multi group multi blade cutting machine CWVC-5.It is an automated equipment and it can butt joint your production line equipment.
It can cut all kind of boards. 10pcbs in one panel ,19 pieces blade can cut without any problem.
Durable LED Panel PCB De-panel Separation for Printed Circle Board,Multiple-blade PCB V-cut Machine
东莞市创威智能装备有限公司
Specifications |
|
|---|---|
| Work Area / Panel Length: | 320 mm |
| Work Area / Panel Width: | 320 mm |
| Work Area / Panel Thickness (Max): | 3 mm |
| Scan Field: | Other (see specs) |
| Scan Speed: | Not Specified |
| Laser Output Power: | Not Specified |
| Laser Wavelength: | Not Specified |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | Not Specified |
| Panel Material: | FR4, Metal, Rigid PCB, Double-Sided PCB |
| Board Thickness: | 0.6-5.0mm mm |
| Voltage: | 220/110 V v |
Features
- The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.

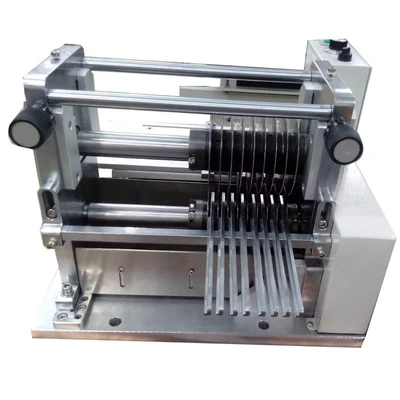

- It can cut many boards with multiple sets of knives work at the same time.
- The knife flywheel is adjustable as a whole from 0 to 5mm
- The distance between knives is regulable as well, applying to pcb with width from 15mm to 20mm.
- The blade is made of imported SKH51 high speed steel material, which is durable and have a long service life.
- It is convenient to adjust the cutting speed through rotary knob.
- No limits of the cutting length.
- Thickness range of pcb: 0.2-5.0mm

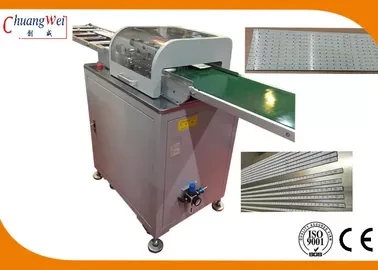

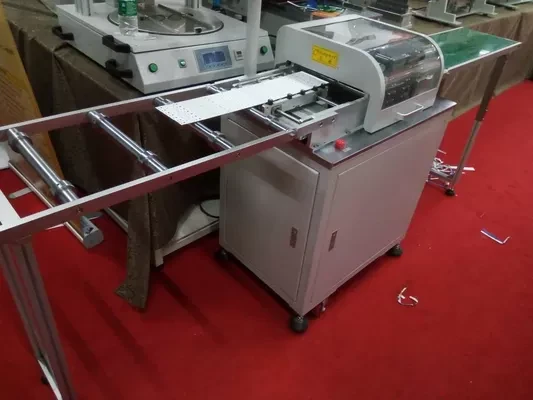

- With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
- The machine adopts multiple blade to separate boards with simple operation and high efficiency, fitted for batch production.
- Origin: China
- Brand name: Chuangwei
- Certificate: CE
- Model number: CWVC-5
- Packaging details: Plywood case
- Delivery time: 15 days after the payment
- Payment term: T/T, Paypal, Western Union
- Supply ability: 15 sets / month
- Warranty: Free for one year
Applications
- LED panel
- Fiberboard
- Aluminum plate
- Aluminum substrate
- Copper substrate
- FR4
- Fiber board
