Description
This latest technology of double directions depaneling with horizontal and vertical boards can satisfy your needs. It can both realize inline depaneling for shape panels as well as one direction of depaneling. Low labor costs are achieved due to the high automation and connectivity with PCB loaders and unloaders. Moreover, it has a human-friendly touch screen operation, allowing for a quick product changing. It also enables users to set for the horizontal and vertical depaneling. There are up to 100 programs that can be stored in the PLC. Dust cleaner is an optional device that users can consider adding.
PCB Online V Cut Depaneling Equipment 300mm Width Customized
Specifications |
|
|---|---|
| Work Area / Panel Length: | Not Specified |
| Work Area / Panel Width: | Not Specified |
| Work Area / Panel Thickness (Max): | Not Specified |
| Scan Field: | Other (see specs) |
| Scan Speed: | Not Specified |
| Laser Output Power: | Not Specified |
| Laser Wavelength: | Not Specified |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | Not Specified |
| Panel Material: | FR4, Metal, Rigid PCB, Double-Sided PCB |
Features
- Product Name: V-Cut PCB Separator
- Blades Number: Depend On PCB
- Cutting Speed: 300-500/s
- Name: V-Cut PCB Separator
- Features: Inline PCBA Automatic Depaneling Machine, hay cutter PCB Separator, hay cutter PCB Separator
- Power Supply: 220/110V,50HZ

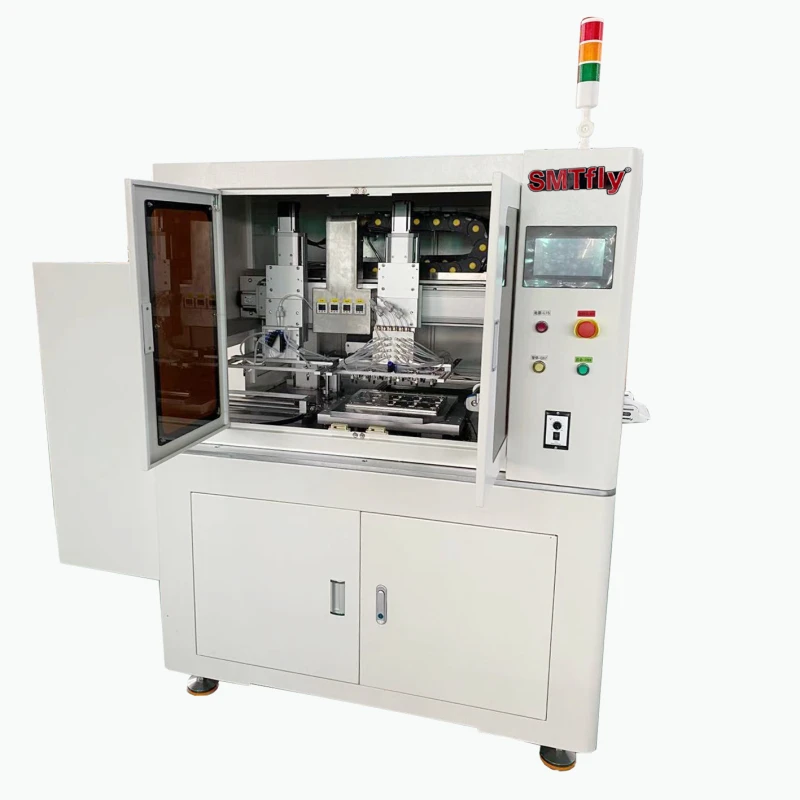

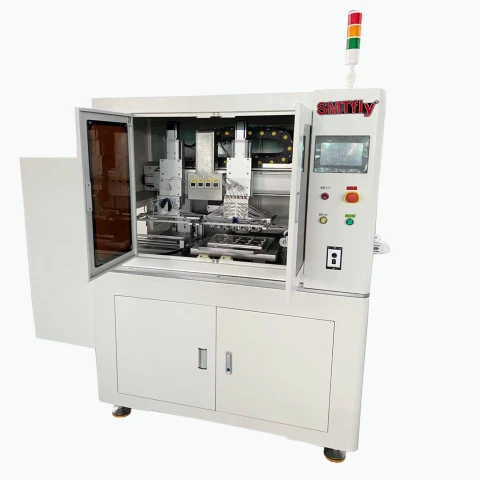

V-Cut PCB Separator, manufactured by ChuangWei, is a multi cutter/V-cut PCB separator/PCB depaneling machine. Model CWVC-5 is CE certified and its minimum order quantity is 1 Set. It is usually packaged in a wooden case and the delivery time is 8-15 days after payment. With a power supply of 220/110V,50HZ, the blades number depends on PCB, and the V-cut angel is greater than 40°. The white machine has a packaging weight of 300kgs. The price is Negotiable, and there is a maximum supply of 30sets/month.
The V-Cut PCB Separator is applicable for Inline PCBA V-cut Depaneling Machine. It is suitable for the precise cutting of different shape of PCB board, such as round, oval and irregular. It can make a clean cut with no burrs. It is also suitable for cutting big size PCB board into small pieces. This product is a good choice for high efficiency production and can be used in different industries, such as the electronics, electrical appliance, automotive, medical, etc.
Applications
Laser depaneling
