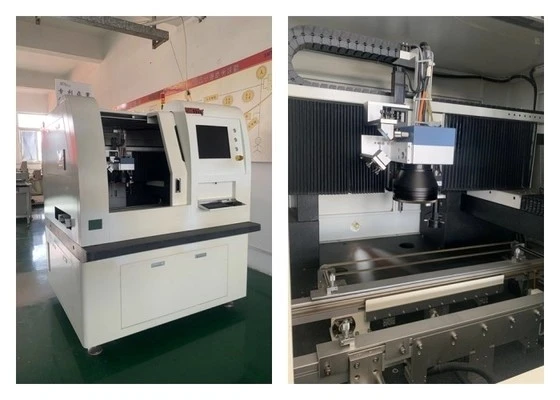

330*320mm Dual workarea Laser Depaneling Machine 2500mm/s High Speed Excellent Cut Finish
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
东莞市创威智能装备有限公司 -
On FindLight:
since 2025
Description
The laser depaneling machine is a high-performance pcb cutting machine, PCB laser cutting machine and pcb depaneling machine with a laser wavelength of 355nm, designed for cutting various materials with high cutting depth. It is capable of depaneling FR30 and FPC at a frequency of 4KHz with a laser power of 10W, 12W, 15W or 18W. With excellent precision and efficiency, the laser depaneling machine is widely used in the electronics manufacturing industry for accurate and reliable cutting of circuit boards.
330*320mm Dual workarea Laser Depaneling Machine 2500mm/s High Speed Excellent Cut Finish
Specifications |
|
|---|---|
| Work Area / Panel Length: | 330 mm |
| Work Area / Panel Width: | 320 mm |
| Work Area / Panel Thickness (Max): | Not Specified |
| Scan Field: | > 250 x 250 mm^2 |
| Scan Speed: | 2500 mm/sec |
| Laser Output Power: | 10 W |
| Laser Wavelength: | Not Specified |
| Axis Speed (X): | Not Specified |
| Axis Speed (Y): | Not Specified |
| Axis Speed (Z): | Not Specified |
| Accuracy: | 2 um |
| Panel Material: | FR4, FPCB, Rigid PCB, Double-Sided PCB |
Features
- Product name: laser board splitter
- Cutting materials: various materials
- Working environment: friendly environment
- Maximum working area: 300x300x11 mm, 400mmX300mm (customizable)
- Function: board splitter FR4 / FPC
- Advantages: automatic visual positioning / excellent cutting accuracy
Applications
Chuangwei Laser Panel Cutting Machine is a powerful PCB board cutting machine that can cut a variety of materials quickly and accurately. With its CE certificate, the machine is a reliable choice for industrial and commercial applications. The laser panel cutting machine is equipped with 10W/12W/15W/18W 30KHz laser power and a maximum working area (X x Y x Z) of 300x300x11 mm and 400mmX300mm (customizable). It also has a maximum scanning speed of 2500mm/s. It offers a minimum order quantity of one set and a negotiable competitive price. Each set is packed in a plywood box and the delivery time is within 10 days. Payment terms include T/T, Western Union and L/C, and the company supplies up to 260 sets per month.
