Laser Depaneling Machines (Panel Material: Double-Sided PCB)

Optowave 355nm PCB Laser Depaneling Machine with No Pressure PCB Cutting

Optowave 355nm UV Laser Depaneler – Precision, Stress-Free PCB Cutting The Optowave 355nm PCB Laser Depaneler provides a high-precision, stress-free solution for cutting PCBs, FPCs, and rigid-flex boards. ...

Large Area PCB Depaneling Machine for FR4 / FPC 355nm Laser Wavelength

This Laser Depaneling Machine is a powerful and advanced pcb separator machine, pcb board cutting machine and pcb cutter machine. It is designed to provide high depth cutting, software-controlled operations and ...

Optional Online or Offline Laser PCBA-FPC Laser Depaneling Machine with 355nm Laser Wavelength

Challenges of Depaneling using Routing/Die Cutting/Dicing Saws Damages and fractures to substrates and circuits due to mechanical stressDamages to PCB due to accumulated debrisConstant need for new bits, custom ...

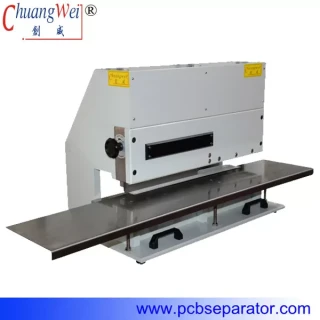

LED Pcb Depanelizer Tool, CWVC-3 Printed Circuit Board Depaneling Machine

Automatic Pneumatic Pcb Depanelizer Tool, CWVC-3 Printed Circuit Board Depaneling Machine   1. Motorized Linear Blade Depanelizer ( CWVC-3) 2. Shears boards safely with parts as close as 0.5mm to the score ...

Customized PCB Routing Machine PCB Router,PCB Depaneling Router System,PCB Thickness 0.5-3.5mm

PCB Separator Routing Solutions with KAVO Spindle at 60000RPM Specifications: Model     CW-F01-SStandard working area     320*320mmPower   220V, 4.2KWManipulator ...

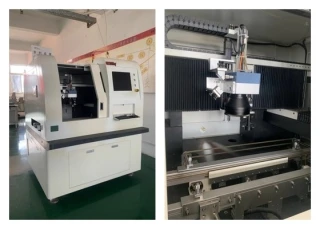

330*320mm Dual workarea Laser Depaneling Machine 2500mm/s High Speed Excellent Cut Finish

The laser depaneling machine is a high-performance pcb cutting machine, PCB laser cutting machine and pcb depaneling machine with a laser wavelength of 355nm, designed for cutting various materials with high cutting ...

FPC PCB Laser separator With 18W UV Laser Head PCBA FPCA

Stress-free depaneling with 18W UV laser head, no tooling costs Laser depaneling: The CWVC-5L laser depaneling machine combines innovative technologies to provide the flexibility of a traditional drill ...

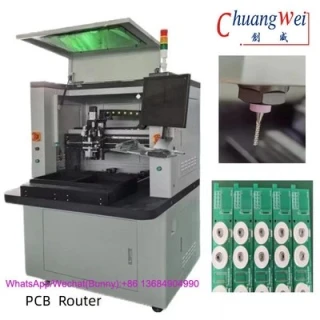

Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCB in its two table configuration ...

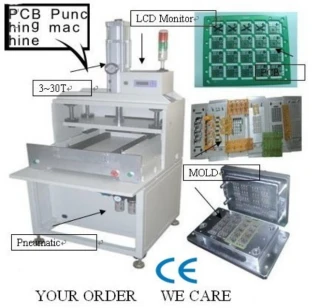

Economic PCB Punching Machine – Easy-to-Control Depaneling with Interchangeable Dies

The Economic PCB Punching Machine is designed for efficient, low-stress separation of PCBs and flexible printed circuits (FPCs). Featuring a pneumatically driven system with electric control, it enables ...

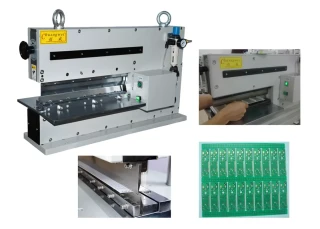

PCB Depaneling Equipment V-Cut PCB Separator with CE ISO Certification

PCB Depaneling Equipment V-Cut PCB Separator with CE ISO Certification Details 1. Easy maintenance and operation2. Thin PCB even to 0.3mm can be sheared safely3. Shearing process without vibrations due to ...

PCB Online V Cut Depaneling Equipment 300mm Width Customized

This latest technology of double directions depaneling with horizontal and vertical boards can satisfy your needs. It can both realize inline depaneling for shape panels as well as one direction of depaneling. Low ...

Manual V-Cut PCB Depaneling Machine with Circular and Linear Blades for Stress-Free Separation

The CWV-1M Manual V-Cut PCB Separator is a precision depaneling machine designed to separate pre-scored PCBs quickly and efficiently without damaging components or stressing the board. With adjustable blade ...

Durable LED Panel PCB De-panel Separation for Printed Circle Board,Multiple-blade PCB V-cut Machine

LED Multi Group Multi Blade PCB Cutting Machine     This is LED multi group multi blade cutting machine CWVC-5.It is an automated equipment and it can butt joint your production line equipment.It can cut ...

PCB Router Depanelizer with Double Working Tables Optional 220V or 110V

This PCB Separator features a high-precision XYZ servo motor system combined with a ball screw and linear guide rail to ensure smooth and accurate operation. It delivers a moving accuracy of less than 0.05mm and ...

Veshay WXR-220US Single Platform PCB Laser Depaneling Machine PCB Laser Cutting System

Standing out from numerous brands, such as LPKF Cutting Master, R-TEK RTC series, Hans Laser HDZ-UVC3030,etc., Veshay WXR-220US is a high-precision laser cutting and depaneling machine designed to meet the demands ...
