Description
2048 . 70 back-illuminated sensor
UV-Vis quantum efficiency enhancement
Deep thermoelectric cooling
Improved etaloning
16-bit digitization
Lifetime vacuum warranty

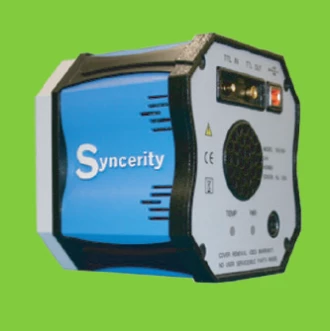

Syncerity BI UV-Vis Scientific Deep-Cooled Camera
Specifications
Sensor Type: | CCD |
---|---|
# Pixels (Width): | 2048 |
# Pixels (Height): | 70 |
Pixel Size (Square): | 14 um |
Peak Quantum Efficiency: | 78 % |
Full Frame Rate: | 189 fps |
Bit Depth: | 16 bit |
Applications
Raman spectroscopy
Microspectroscopy
Plasma analysis
UV-VIS-NIR photoluminescence
Diffuse reflectance spectroscopy
Frequently Asked Questions
What is the Syncerity BI UV-Vis Scientific Deep-Cooled Camera?
The Syncerity BI UV-Vis Scientific Deep-Cooled Camera is a high-performance camera designed for scientific applications such as Raman spectroscopy, microspectroscopy, plasma analysis, UV-VIS-NIR photoluminescence, and diffuse reflectance spectroscopy.
What is etaloning and how has it been improved in this camera?
Etaloning is a phenomenon that can occur when using a camera to measure light. The Syncerity BI UV-Vis Scientific Deep-Cooled Camera has improved etaloning which helps to reduce the impact of this phenomenon on image quality.
Does the camera have any cooling features?
Yes, the camera has deep thermoelectric cooling which helps to reduce noise and improve image quality.
What is the sensor resolution of the camera?
The camera features a 2048 x 70 back-illuminated sensor.
What is the warranty on the camera?
The camera comes with a lifetime vacuum warranty.
