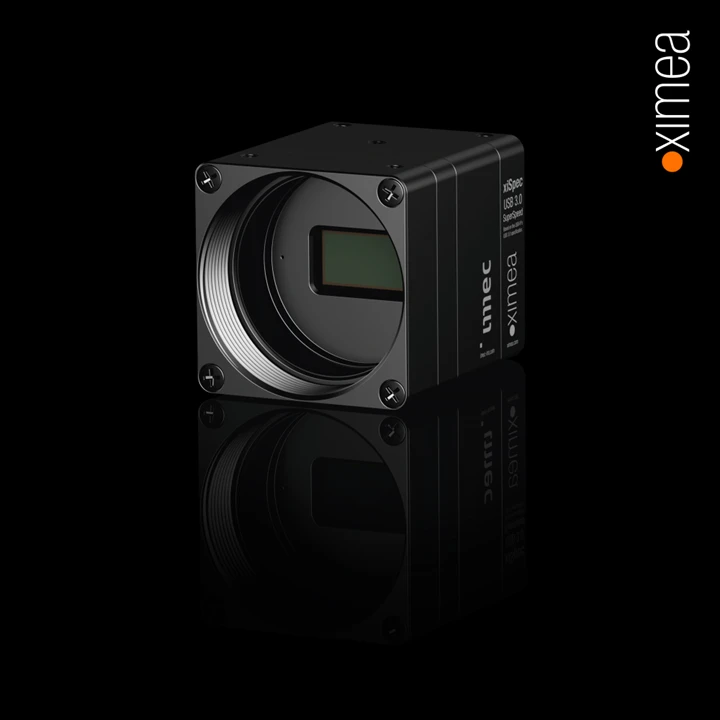

xiSpec - Smallest USB3 and PCIe hyperspectral cameras.

Description

Smallest and lightest hyperspectral imaging cameras with USB3 or PCI Express interface, covering the 460 – 960 nm range with 15 - 150 bands. Precise snapshot and line-scan imaging.

The unique xiSpec series offers linescan and snapshot mosaic hyperspectral cameras, being smallest in class by far and combining extreme low power consumption and acquisition of hyperspectral imaging (HSI) raw data at very high frames per second.
This camera is implemented in a plethora of applications where chemical differentiation is required, e.g. medicine, agriculture, food processing and many more. The small size, low weight and robustness make it an ideal choice for mobile environments such as drones or handheld devices.

Specifications

Sensor Type:	CMOS
# Pixels (Width):	2048
# Pixels (Height):	1088
Pixel Size (Square):	5.5 um
Peak Quantum Efficiency:	Not Specified
Full Frame Rate:	170 fps
Bit Depth:	10 bit
Resolution:	2.2 MPix
Spectral Range:	460 - 960 nm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Smallest hyperspectral camera - 26.4 x 26.4 x 31 mm, 32 grams
Up to 150 spectral bands/channels in one camera
Spectral Fabry-Perrot filters fully integrated on CMOS pixels without stray light issues
Wide potential - various wavelength ranges between 470 to 960 nm
Low power consumption with 1.6 watts, ideal for UAV and drones
High frame rate: Depending on interface 170 FPS or 340 FPS
High spatial and spectral resolution, possible through 10 Gb/s

Applications

Precision Agriculture / Farming
Remote Sensing
Archaeology
Cancer cells inspection
Environmental Monitoring
Art and Antiquities Conservation
Food safety and inspection (quality grading)
UAV / UAS (drones) and UGV (unmanned ground vehicles) robotics
Medical
Remote sensing
Scientific
Optical sorting

Request Quote

To: XIMEA GmbH
Re: xiSpec - Smallest USB3 and PCIe hyperspectral cameras.

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Germany
Sold by:: XIMEA GmbH
On FindLight:: since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the applications of xiSpec?

The applications of xiSpec include precision agriculture/farming, remote sensing, archaeology, cancer cells inspection, environmental monitoring, art and antiquities conservation, food safety and inspection (quality grading), UAV/UAS (drones) and UGV (unmanned ground vehicles) robotics.

What are the features of xiSpec?

The features of xiSpec include snapshot with global shutter, multi-linescan with global shutter, snapshot RGB-NIR with global shutter, starter kit available for rapid development, and flexible and programmable GPIO options.

What is the size and weight of xiSpec?

The extraordinary compact housing of xiSpec is only 26.4 x 26.4 x 31 mm and only 32 g mass (incl. C-mount), making it well suited for system integration and OEM-projects that need small mass small size solutions.

What is xiSpec?

xiSpec is a family of compact hyperspectral cameras that deliver up to 170 HSI-datasets/sec with an USB interface. Alternatively, there is the 10Gbit/s PCIe Interface, where up to 338 HSI-datasets/s are possible.
