Description
The Redwood™ series is a family of high-throughput industrial video cameras designed with some of the fastest high-resolution CMOS image sensors available today. The 120C335 models use ams CMV12000 12.6MP sensors, the 447X52 models feature use XGS45000 44.7MP sensors, the 52G872 and 210G230 models use Gpixel GSPRINT4521 21MP sensors and the 654G71 models use Gpixel GMAX3265 65MP sensors.
All these sensors feature global shutter technology, with high-sensitivity and low-noise pixel designs. Both monochrome and color camera models are available to suit a variety of applications in industrial and scientific imaging, wide area observation, as well as virtual reality and special effects.

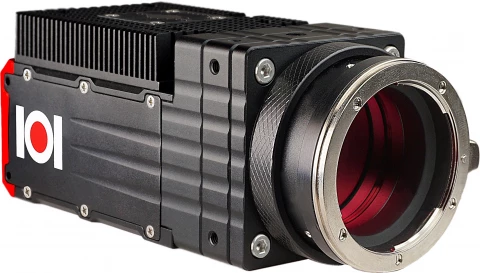

REDWOOD 21MP
Specifications
| Sensor Type: | CMOS |
|---|---|
| # Pixels (Width): | 4096 |
| # Pixels (Height): | 5120 |
| Pixel Size (Square): | 4.5 um |
| Peak Quantum Efficiency: | 63 % |
| Full Frame Rate: | 230 fps |
| Bit Depth: | 8 bit |
| Output: | CoaXPress/CXPoF |
| Sensor: | GSPRINT 4521 |
| Color/Mono: | Both |
Download Data Sheet
Features
- Sensor Type: CMOS w. global electronic shutter
- Output Configurations: 1/2/4 links via coaxial or fiber cabling (1x CXP-10/12, 2x CXP-5/6/10/12, or 4x CXP-3/5/6/10/12)
- Pixel Bit Depth: 8/10/12-bit output
- Exposure Control: Programmable or level-controlled exposure, triggered double exposure (PIV), or auto exposure
- Image Correction: Black level, FPN/PRNU, bad pixel replacement, denoise filter, detail enhancement filter
- Color Processing: White balance (Auto one-shot, tracking, or manual), Black balance (auto or manual), Gamma LUTs
- Camera Configuration: GenICam or Redwood Control software
- Optical Format: APS-C (29.5 mm diagonal)
Applications
- High Speed Motion Analysis
- Scientific Research
- Automated Inspection
- Specialty Video Production
