Description

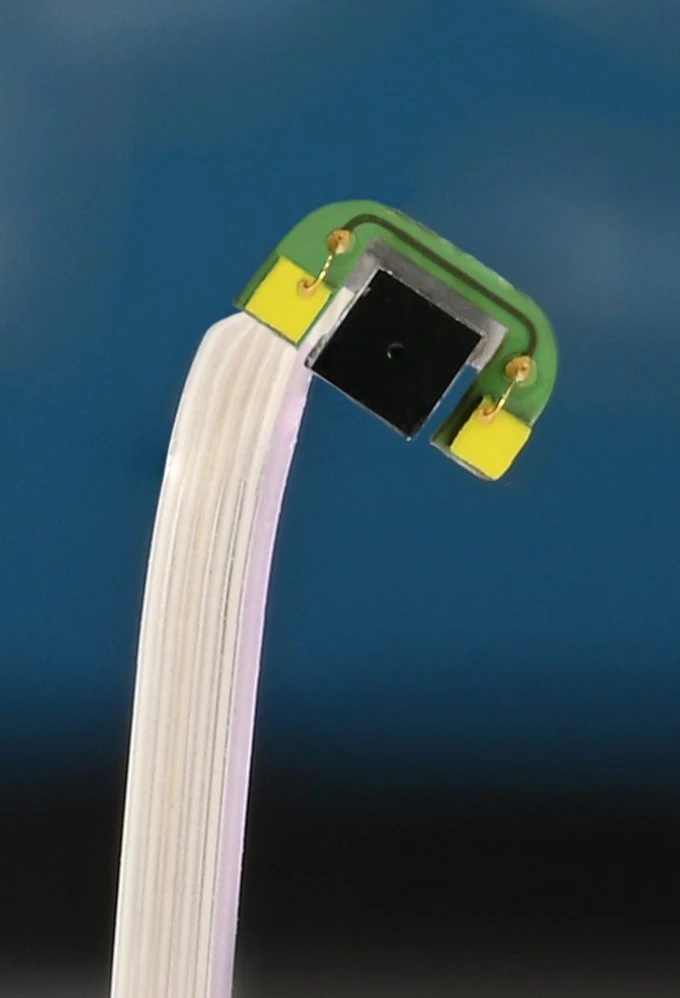

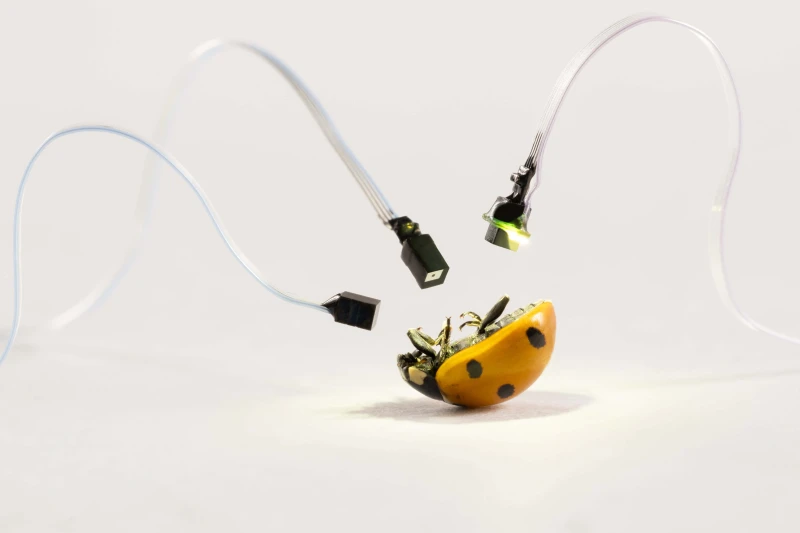

The OS500 digital micro camera by Optasensor GmbH is a groundbreaking innovation in the realm of medical imaging. Designed with precision and advanced technology, this compact camera is tailored for medical endoscopy, offering exceptional image quality in a remarkably small form factor. The OS500 is equipped with a custom CMOS sensor featuring back-side illumination and through-silicon via packaging, ensuring superior resolution and reliability. This makes it an ideal choice for medical professionals seeking high-performance imaging solutions in compact devices.

One of the standout features of the OS500 is its adaptability. With multiple lens options available, each providing excellent depth of field and modulation transfer function (MTF) performance, the camera can be customized to meet specific imaging requirements. The OS500 supports long cable lengths of up to 5 meters, as well as direct SPI-like connections for shorter-range applications, offering flexibility in various medical settings. Its customizable configurations and multiple form factors ensure compatibility with diverse system needs, making it a versatile tool for medical imaging.

In addition to its impressive hardware capabilities, the OS500 is complemented by user-friendly software that enhances its functionality. The image viewer software and evaluation kit provide easy access to all camera registers and tunable image correction algorithms, allowing users to optimize performance according to their needs. The dedicated electronics board interface and USB 3 connectivity to PCs further streamline the integration process. This camera is compatible with the IPS-UVC interface USB board.

Whether used in dental imaging, eye tracking, pulmonology, urology, orthopedics, robotic surgical systems, or capsule endoscopy, the OS500 stands out as a reliable and efficient solution for modern medical imaging challenges.

OS500 FOV90 Digital Micro Camera for Medical Endoscopy Applications

Specifications

Sensor Type: CMOS
# Pixels (Width): 500
# Pixels (Height): 500
Pixel Size (Square): 1.6 um
Full Frame Rate: 30 fps
Bit Depth: 10 bit
MODEL: PN100192_OS500_FOV90
Full Well Capacity (FWC): 5Ke-
Output: Digital 10bit
Field Of View (FOV): FOV90
Aperture (F#): F#4
Depth Of Field (DOF): 2 to 50mm
Interface: 4 wire / 3.3V
Pixel Array: 800x800um
Size: 1x1x1.6mm
Interface Options: LVDS or SPI
Power Consumption: up to 25mW
Board Compatibility: IPS-UVC interface USB board
Manufacturer Part Number (MPN): PN100192_OS500_FOV90
FindLight SKU: FL-24280

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Quality Imaging: The OS500 micro camera is designed with a custom CMOS sensor featuring back-side illumination and through-silicon via packaging, ensuring excellent image quality and reliability.
  • Compact Design: With dimensions of 1x1x1.6mm, the OS500 is ideal for integration into small medical devices, offering a resolution of 500x500 pixels.
  • Versatile Lens Options: Multiple lens configurations are available, including FOV90 and FOV120, with F#4 and F#5, providing excellent depth of field and high MTF performance for sharper images.
  • Flexible Connectivity: Supports long cable lengths up to 5m or direct SPI-like connections for shorter-range applications, ensuring adaptability to various system needs.
  • Customizable Features: Offers customizable configurations, optical filters, illumination options, and custom electronics and software to meet diverse application requirements.
  • Efficient Power Consumption: Operates with a power consumption of up to 25mW, making it energy-efficient for prolonged use.
  • Advanced Interface Options: Features a 4-wire interface with 3.3V, LVDS or SPI interface, and supports multiple chip synchronization.
  • Comprehensive Software Support: Includes easy-to-use image viewer software with accessible camera registers, tunable image correction algorithms, and available source code and libraries.
  • Wide Range of Applications: Suitable for dental imaging, eye tracking, pulmonology, urology, orthopedics, robotic surgical systems, capsule endoscopy, and single-use endoscopy.
  • Board Compatibility: This camera is compatible with the IPS-UVC interface USB board.

Applications

  • Dental Imaging
  • Eye Tracking
  • Pulmonology
  • Urology
  • Orthopedics
  • Robotic Surgical Systems
  • Capsule Endoscopy
  • Single Use Endoscopy

Export & Trade Information

ECCN: EAR99
HTS Code: 8525.81.0000
Estimated US Tariff: 0%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the OS500 micro camera designed for?
The OS500 micro camera is designed for medical endoscopy, featuring a custom CMOS sensor with backside illumination and through-silicon via packaging for high image quality, resolution, and reliability.
What are the resolution and size of the OS500 camera?
The OS500 camera has a resolution of 500x500 pixels and a size of 1x1x1.6mm.
What lens options are available for the OS500 camera?
The OS500 camera offers multiple lens options with different configurations, including FOV90 and FOV120, and F#4 and F#5, all with excellent depth of field and MTF performance.
What are the interface options for the OS500 camera?
The OS500 camera supports LVDS or SPI interface and can handle long cable lengths up to 5m or direct SPI-like connections for shorter-range applications.
What is the power consumption of the OS500 camera?
The power consumption of the OS500 camera is up to 25mW.
What applications is the OS500 camera suitable for?
The OS500 camera is suitable for applications such as dental imaging, eye tracking, pulmonology, urology, orthopedics, robotic surgical systems, capsule endoscopy, and single-use endoscopy.
What customization options are available for the OS500 camera?
The OS500 camera offers customizable configurations, multiple form factors, lens customization, optical filters, illumination options, and custom electronics and software to enable individual features.

Got more questions? Use the inquiry form to ask the supplier directly.
