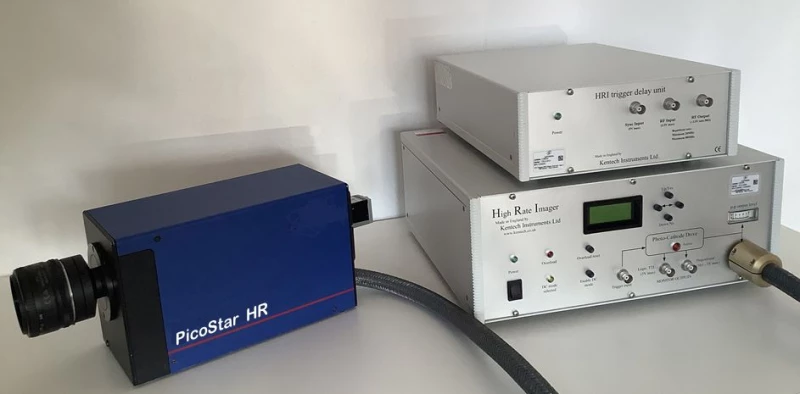

Thumbnail of TauTec-PicoStar HR - Ultrahigh Rep. Rate, Picosecond Tome-Gated ICCD camera photo 1

Description

The PicoStar HR ICCD camera is based on a state-of-the-art picosecond time-gated, ultra-high trigger rate image intensifier coupled to the  CCD/CMOS camera via high optical efficiency relay optics. The camera offers an ultra-high, trigger rate time-gated mode with minimum width <300ps @ trigger rate <110MHz and an ultra-high-frequency intensifier gain modulation mode up to 1GHz.

TauTec-PicoStar HR - Ultrahigh Rep. Rate, Picosecond Tome-Gated ICCD camera

TauTec LLC

Specifications

Sensor Type: iCCD
# Pixels (Width): 1920
# Pixels (Height): 1200
Pixel Size (Square): 5.86 um
Peak Quantum Efficiency: 70 %
Full Frame Rate: 155 fps
Bit Depth: 12 bit
Gate Width: 200 ps
Gating Rate: <110 MHz
Gain Modulation: <1 GHz
Spectral Response: 200-900 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Minimum Gate Width: 200ps
  • Maximum Gating Rate: 110MHz
  • Gain Modulation: <1GHz
  • Spectral Response: 200-900nm

Applications

  • Picosecond Time-resolved Optical Imaging and Spectroscopy
  • Fluorescence Lifetime Imaging Microscopy (FLIM/FRET)
  • 3D-FLIM in conjunction with multifocal multiphoton microscopy
  • Imaging through scattering media
  • Diffuse optical tomography, optical breast imaging, photon migration
  • Time-gated total internal reflection fluorescence microscopy
  • Single molecule, Quantum Dot imaging and spectroscopy
  • Dynamics of photophysical and photochemical processes
  • Time-gated Raman spectroscopy & imaging: suppression of fluorescence
  • Fluorescence quenching near silver/gold nanoparticles
  • Pump-Probe imaging & spectroscopy
  • Plasma kinetics/dynamics imaging and spectroscopy
  • OLED characterization: electroluminescence kinetics and heterogeneity
  • Dynamics of exciton, polariton and charge transport processes in semiconductors
  • Ultrafast magnetic domain switching using time-resolved Kerr microscopy
  • Gating and Ranging; LIDAR
  • Underwater imaging through turbid media

Frequently Asked Questions

What is the gate width of the PicoStar HR ICCD camera?
The gate width of the PicoStar HR ICCD camera is <300ps at a trigger rate <110MHz.
What is the maximum gating rate of the PicoStar HR ICCD camera?
The maximum gating rate of the PicoStar HR ICCD camera is 110MHz.
What is the spectral response range of the PicoStar HR ICCD camera?
The spectral response range of the PicoStar HR ICCD camera is 200-900nm.
What are some applications of the PicoStar HR ICCD camera?
Some applications of the PicoStar HR ICCD camera include picosecond time-resolved optical imaging and spectroscopy, fluorescence lifetime imaging microscopy (FLIM/FRET), and imaging through scattering media.
How is the PicoStar HR ICCD camera controlled?
The PicoStar HR ICCD camera can be controlled either manually via a front panel keypad or remotely via a USB interface.

Got more questions? Use the inquiry form to ask the supplier directly.
