Description
In the realm of industrial equipment, the demand for camera-based inspections is steadily increasing, with stringent performance requirements. Ultraviolet (UV) industrial cameras are gaining prominence as they leverage UV lighting and UV-compatible lenses to capture special visual information unattainable by standard visible-light cameras.
Ultraviolet light, with shorter wavelengths than visible light, excels in revealing minute defects and imperfections invisible in the visible spectrum. UV cameras are also adept at identifying transparent materials, like plastic and PET, which may be challenging to differentiate under visible light due to varying UV absorption rates. This technology holds great promise for material sorting and diverse industrial applications.

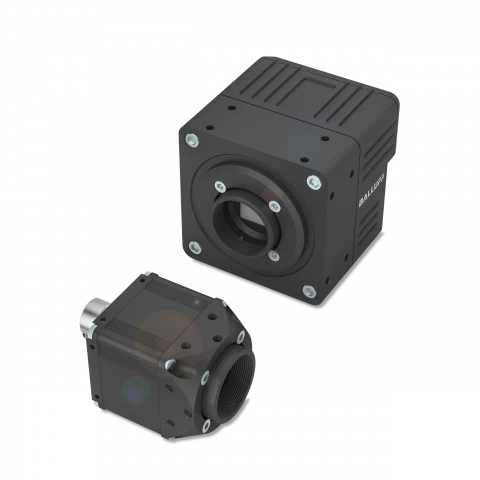

Balluff's latest industrial camera, the IMX487, is purpose-built to capture the UV spectrum, spanning 200–400 nm. This UV segment caters to industrial needs, offering high-performance UV imaging capabilities for defect detection and beyond.
UV camera
Specifications
| Sensor Type: | CMOS |
|---|---|
| # Pixels (Width): | 2840 |
| # Pixels (Height): | 2840 |
| Pixel Size (Square): | 2.74 um |
| Peak Quantum Efficiency: | 40.4 % |
| Full Frame Rate: | 147 fps |
| Bit Depth: | 12 bit |
| Image Sensor: | IMX487 SONY |
| Max. Streaming: | 457 FPS |
Download Data Sheet
Features
- UV Imaging Excellence: Our industrial cameras feature UV image sensors, revealing imperfections and transparent material distinctions invisible to standard cameras.
- IMX487 Sensor: Driven by Sony's IMX487 sensor, tailored for UV spectrum imaging (200–400 nm), these cameras deliver high-performance UV imaging.
- Versatile Applications: From defect detection to transparent material analysis, these cameras are ideal for a wide array of industrial tasks.
- Industrial-Grade Durability: Built to withstand rugged conditions, our cameras ensure reliability in challenging environments.
- Efficient Material Sorting: With their ability to distinguish UV transmittance rates, they enhance material sorting processes.
- Precision Inspections: Unmatched in capturing the finest imperfections, these cameras elevate inspection accuracy.
Applications
- Defect Detection: UV image sensors are used in manufacturing for precise defect detection, even on microscopic objects like semiconductor patterns and fine metal scratches, enhancing inspection accuracy.
- Resin Coating Inspection: In electronics manufacturing, UV sensors identify resin coating quality by making coated areas appear black and uncoated areas white under UV light, allowing quick detection of coating irregularities.
- Material Sorting: UV sensors aid in material sorting at recycling sites, as they can distinguish transparent materials, such as plastics and glass, based on UV transmittance.
- Discharge Inspections: UV cameras help identify deteriorated parts in power infrastructure, enabling automation and cost-effective facility maintenance, especially in remote or wide-area settings, with sensors like IMX487.
