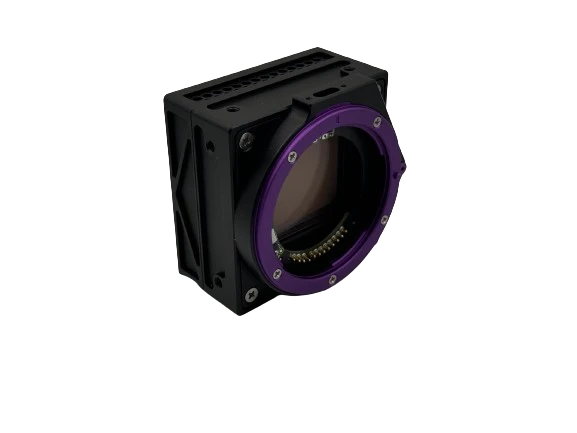

EMC-250 Compact Camera with M.2 PCIe & Camera Link

Visit the Illunis Store

Specifications

Sensor Type: CMOS
# Pixels (Width): 19568
# Pixels (Height): 12588
Pixel Size (Square): 1.5 um
Peak Quantum Efficiency: 61 %
Full Frame Rate: 2.6 fps
Bit Depth: 10 bit
Document icon Download Data Sheet Download icon

Features


  • Host data connection is PCIe Gen2x4 M.2 M 2280 slot or Camera Link

  • Light weight design (EMC-103 is ~210 grams without lens)

  • 64-bit memory addressing with1370 megabyte/sec maximum sustained data transfer

  • XCAP-Lite image capture, display, and save program included

  • Capture video to computer memory with XCAP-LTD

  • Stream video to disk with XCAP-STD

  • XCLIB programmer libraries for frame grabber and camera control

  • PXIPL image processing, measurement, and analysis libraries

  • Compatible with 32-bit & 64-bit Windows 11, 10, 8, 7, Vista, XP, 2000, LINUX. Also TWAIN and Image-Pro Compatible.

Applications


  • Machine vision

  • Medical imaging

  • Packaging & inspection

  • Scientific research

  • Security

  • Wide area surveillance
