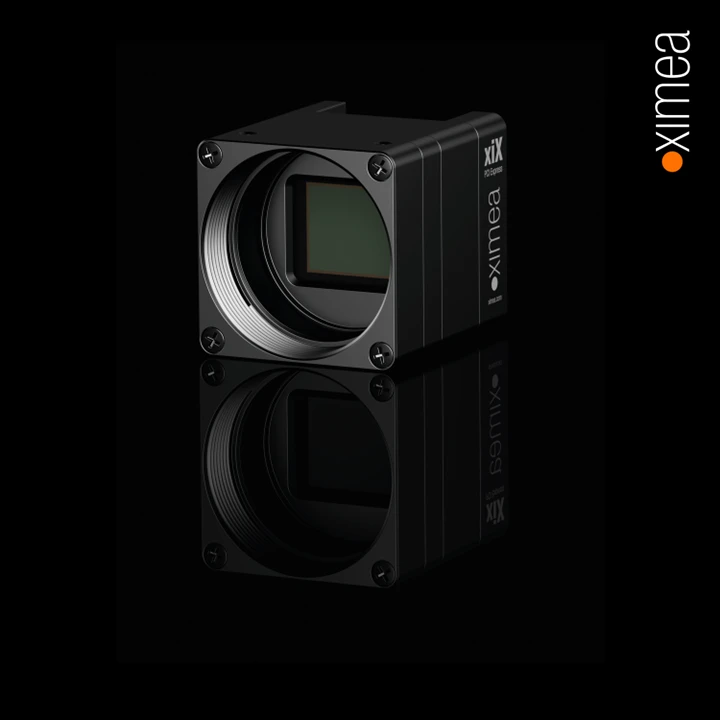

xiX - Compact Cameras with PCIe Interface
Description
The xiX- Series is the integrators dream. With only 26.4 x 26.4 x 31 mm and 30 grams it is the smallest camera featuring Sony PregiusTM. The fast CMOS sensor offers a high range of High Speed and high frame rates from 2.3 Mpix at 166 Fps to 50 Mpix at 33 Fps. The xiX cameras stream images to the host computer via 2 or 4 lanes on a OCI Express Gen2 bus. Together with minimal latencies and CPU load, the cameras are a perfect fit for embedded vision and multi-camera applications. Thanks to flat flex cabling, the board-level and semi-housed variants allow integration in tight spaces and close proximity between cameras.
xiX - Compact Cameras with PCIe Interface
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 1936 - 7920 |
| # Pixels (Height): | 1088 - 6144 |
| Pixel Size (Square): | 3.45 - 10 um |
| Peak Quantum Efficiency: | -- % |
| Full Frame Rate: | 22 - 340 fps |
| Bit Depth: | 8 - 12 bit |
Features
• Compatible with the xiFLY platform
• Power and GPIO is fed through the ribbon cable reducing the need for extra cables
• Super compact form factor
• Connector options to fit your needs
• Ideal for embedded applications and tight spaces
• No frame grabber required, DMA transfer with no CPU load
• Direct GPU transfer with selected NVIDIA boards under Linux
• Data transmission with functionally zero latency
• Flexible GPIO with optoisolated and TTL options
• Low power consumption
• Rugged and lightweight, aluminum alloy CNC machined housing
Applications
Ultra-fast 3D scanning
360 Panorama (360° spherical, cyclorama imaging), Photogrammetry, Videogrammetry
Broadcasting and Instant replays
High definition Motion capture, Cinematography and Entertainment
Sports Automation & Motion Tracking: soccer, football, basketball, hockey
VR and AR - Virtual and Augmented reality
Flat panel display (FPD) inspection
Printed circuit board (PCB) examination
Autonomous self-driving vehicles, ADAS, Deep learning tasks
Persistent stadium and border high-end security
HMC (Head mounted camera)
Aerial or city/street mapping (UAV / UAS - drones)
ideal for LoLa (Low Latency audio visual streaming system)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
No, a frame grabber is not required for the xiX camera. It has DMA transfer with no CPU load and direct GPU transfer with selected NVIDIA boards under Linux.
The xiX camera is ideal for embedded applications and tight spaces, and can be used for ultra-fast 3D scanning, broadcasting and instant replays, high definition motion capture, sports automation and motion tracking, VR and AR, flat panel display inspection, PCB examination, autonomous self-driving vehicles, and more.
The xiX camera has functionally zero latency for data transmission.
The xiX camera offers a high range of high speed and high frame rates from 2.3 Mpix at 166 Fps to 50 Mpix at 33 Fps.
The xiX camera is only 26.4 x 26.4 x 31 mm and weighs 30 grams, making it the smallest camera featuring Sony PregiusTM.
