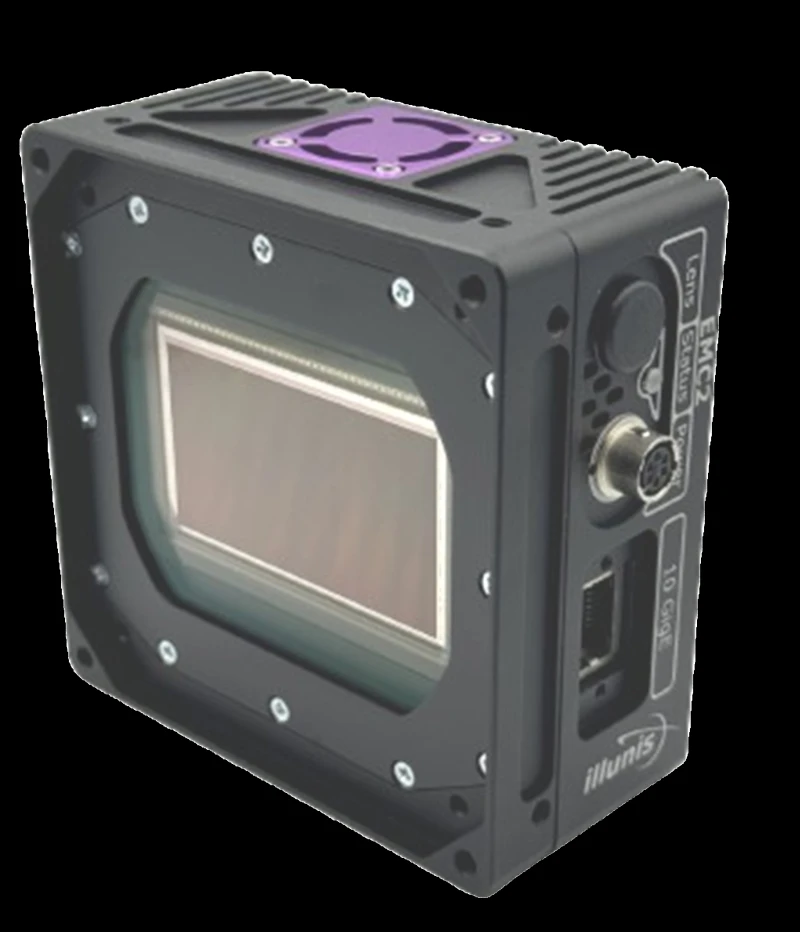

EMC2-152 Global Shutter CMOS Digital Camera

Visit the Illunis Store

Specifications

Sensor Type: CMOS
# Pixels (Width): 16556
# Pixels (Height): 9200
Pixel Size (Square): 3.2 um
Peak Quantum Efficiency: 66.9 %
Full Frame Rate: 10 fps
Bit Depth: 12 bit
Document icon Download Data Sheet Download icon

Features


  • 16,556 x 9,200 = 152M pixels with Global shutter pixels for unlimited exposures!
    No Mechanical shutters to replace or repair.

  • 3.2um pixel Charge Domain GS CMOS Pixel with light pipe.

  • 53.0 x 29.4 mm imaging area ~ Large Format (61mm diagonal)

  • Monochrome, and RGB Bayer versions

  • Sensor is 3-point mounted for back focus and flatness

  • Dynamic range 67.dB, FWC = 9.3Ke

  • Field-updatable firmware and extensive Built In Test (BIT)

  • 10GigE Vision output: 12bit based on the Pleora NTx-Deca.

  • All Sensor features supported (HFLIP,VFLIP, ROI, PGA-Gain, etc.)

  • Programmable Optical Black Clamp

  • Rodenstock, M72 or OEM custom lens mount are available.

  • -30 to 50C operating (limited by 10G)

  • EMC = Embedded Modular Camera, EMC2 is the 10G version.

Applications


  • Aerial mapping and 3D imaging

  • Machine vision

  • Medical imaging

  • Packaging & inspection

  • Scientific research

  • Security

  • Wide area surveillance
