Description
The Gigabit Ethernet camera mvBlueCOUGAR-X is compliant to the GigE Vision® and GenICam™ image processing standards. The latest building blocks are used in one of the smallest yet rock solid housing in our industry. The camera is optimized for both machine vision tasks, relying on high frame rates combined with low latency image transport and on the other hand the images can be precisely optimized for viewing applications in life science and medical applications, where the utmost realistic image quality in terms of shades in gray scale and color fidelity, combined with best sensitivity and signal-to-noise ratio are required.

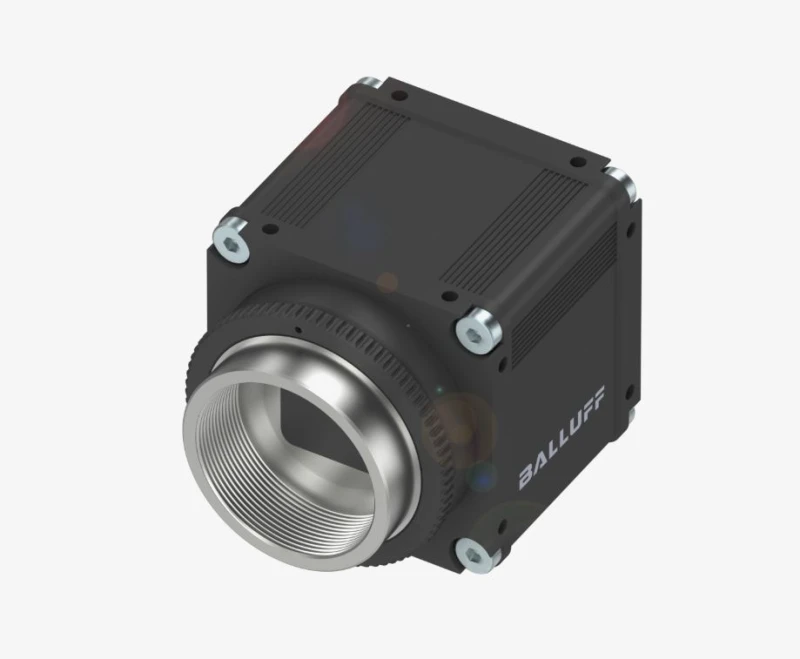

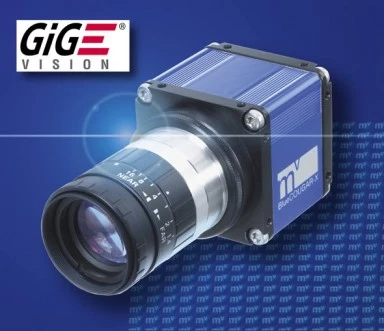

GigE Vision industrial Camera mvBlueCOUGAR-X100fG
Specifications
Sensor Type: | CMOS |
---|---|
# Pixels (Width): | 728 |
# Pixels (Height): | 544 |
Pixel Size (Square): | 6.9 um |
Peak Quantum Efficiency: | Not Specified |
Full Frame Rate: | 299.8 fps |
Bit Depth: | 12 bit |
Features
- Compact industrial camera series with Gigabit Ethernet
- CCD & CMOS high quality sensors from VGA up to 12.4 megapixels
- Gray scale, color, NIR (near infrared)
- Hardware preprocessing on-board (FPGA) for reducing the CPU load of the host
- Highest resolution ADC
- Image memory 64 MB for a reliable image transfer
Applications
- Machine vision
- Surveillance
- Life science
- Microscopy
- Medical application
- Safety engineering
Frequently Asked Questions
What are the image processing standards that the mvBlueCOUGAR-X100fG camera is compliant with?
The mvBlueCOUGAR-X100fG camera is compliant with the GigE Vision® and GenICam™ image processing standards.
What are the applications that the mvBlueCOUGAR-X100fG camera is optimized for?
The mvBlueCOUGAR-X100fG camera is optimized for machine vision tasks, life science and medical applications, microscopy, surveillance, and safety engineering.
What are the hardware features of the mvBlueCOUGAR-X100fG camera?
The hardware features of the mvBlueCOUGAR-X100fG camera include Gigabit Ethernet interface, hardware preprocessing on-board (FPGA), highest resolution ADC, and image memory 64 MB for a reliable image transfer.
What are the image formats supported by the mvBlueCOUGAR-X100fG camera?
The mvBlueCOUGAR-X100fG camera supports image formats such as Mono8, Mono12, Mono14, Mono16, Mono12Packed, BayerGR8, BayerGR10, BayerGR12, BayerGR16, BayerGR12Packed (GR, RG, GB, BG depends on camera type), RGB8Packed, BGR8Packed, BGRA8Packed, BGR10V2Packed, YUV422Packed, YUV422_YUYVPacked, and YUV444Packed.
What are the special features of the mvBlueCOUGAR-X100fG camera?
The special features of the mvBlueCOUGAR-X100fG camera include frame average, enhanced color and I/O functionality, PoE, automatic gain / exposure control, binning, PLC inputs, pre-trigger recording, internal temperature sensors, FFC, screw lock connectors, video iris, and High Dynamic Range (HDR) mode supported.
