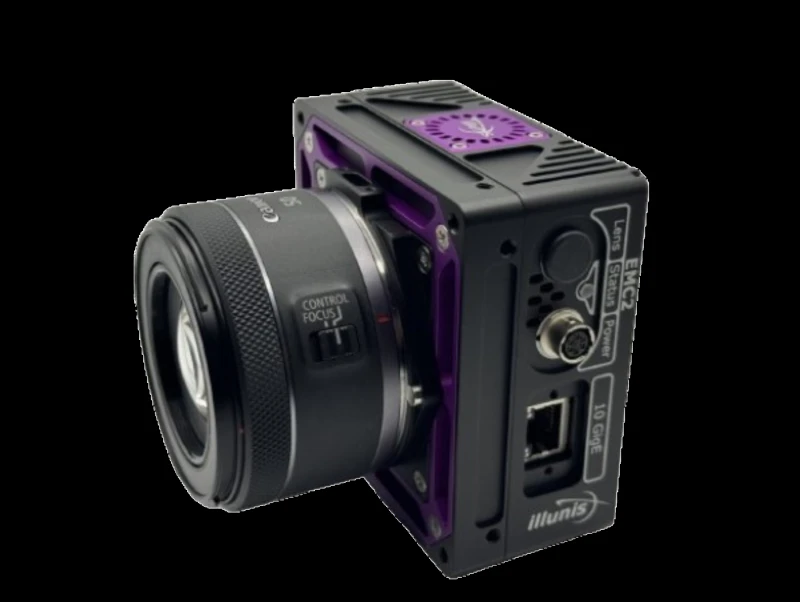

EMC2-103 Light Weight Camera

Visit the Illunis Store

Specifications

Sensor Type: CMOS
# Pixels (Width): 11276
# Pixels (Height): 9200
Pixel Size (Square): 3.2 um
Peak Quantum Efficiency: 66.9 %
Full Frame Rate: 12 fps
Bit Depth: 12 bit
Document icon Download Data Sheet Download icon

Features


  • Gpixel GMAX103 or GMAX152 sensors with 3.2um Global shutter pixels for unlimited exposures ! No Mechanical shutters to replace or repair.

  • Host data connection 10GigE Vision through Pleora EBUS

  • Light weight, small design

  • Sensors are 3-point mounted for back focus and flatness.

  • Built in features for aerial imaging: Auto exposure, etc.

  • EMC2-103 available with OEM, F, Canon EF/RF, or M72 lens mount

  • EMC-152 is a large format available (60.6mm diagonal) with OEM or M72

  • UVIR, Skylight or custom optical filter.

  • EMC-103 standard mode is 7fps, enhanced mode is12fps

  • EMC-152 standard mode is 5.0fps, enhanced mode is 8.6fps

Applications


  • Aerial mapping and 3D imaging

  • Machine vision

  • Medical imaging

  • Packaging & inspection

  • Scientific research

  • Security

  • Wide area surveillance
