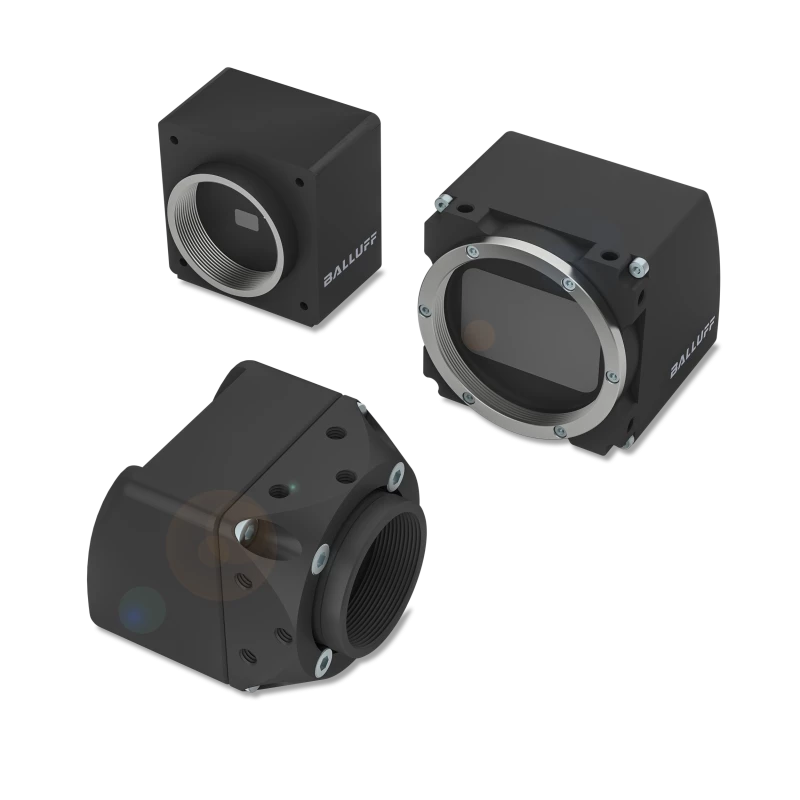

USB3 Vision Cameras

Name: USB3 Vision Cameras
Brand: Balluff
Availability: InStock

Description

Universal USB3 camera series with up to 5 Gigabit transfer rate

Excellent image quality due to high quality sensors up to 31.5 MPixel

Onboard smart features for CPU unloading

Internal image memory for lossless image transfer

Various I/O options for easy process integration

Easy integration thanks to Software Development Kit

Specifications

Sensor Type:	CMOS
# Pixels (Width):	6480
# Pixels (Height):	4856
Pixel Size (Square):	3.45 um
Peak Quantum Efficiency:	69.8 %
Full Frame Rate:	12 fps
Bit Depth:	12 bit

Download Data Sheet

Applications

Vision

Metrology

Inspection

Biomedical

Scientific

Commercial

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Balluff

On FindLight:

since 2018

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the applications of the mvBlueFOX3-4?

The USB3 camera can be used for various applications such as vision, metrology, inspection, biomedical, scientific, and commercial purposes.

What are the hardware features of the mvBlueFOX3-4?

The USB3 camera is compliant with the USB3 Vision Protocol and has a USB 2.0/3.0 interface. It supports various image formats such as Mono8/10/12/14/16, BayerGR8/10/12/16, RGB8Packed, BGR8Packed, BGRA8Packed, BGR10V2Packed, YUV422/444Packed, and YUV422_YUYVPacked. It also has digital I/Os with 2 opto-isolated inputs and 4 opto-isolated outputs.

What are the special features of the mvBlueFOX3-4?

The USB3 camera has several special features such as burst mode, onboard color processing, Micro-PLC, frame average, and a robust housing with tripod mounting holes. It also has 256 MBytes of image memory, 16 MBytes of Flash memory for firmware, calibration, and user data.

What are the technical details of the mvBlueFOX3-4?

The USB3 camera has IMX342 sensor with a resolution of 6480 x 4856 pixels and a sensor size of APS-C 3.45 x 3.45. It has a frame rate of 1 streaming and uses a global CMOS sensor technology with 12-bit ADC resolution.

What is the mvBlueFOX3-4?

The mvBlueFOX3-4 is an industrial camera that is part of the USB3 Vision family, designed for high-resolution sensors with sizes greater than 1".
