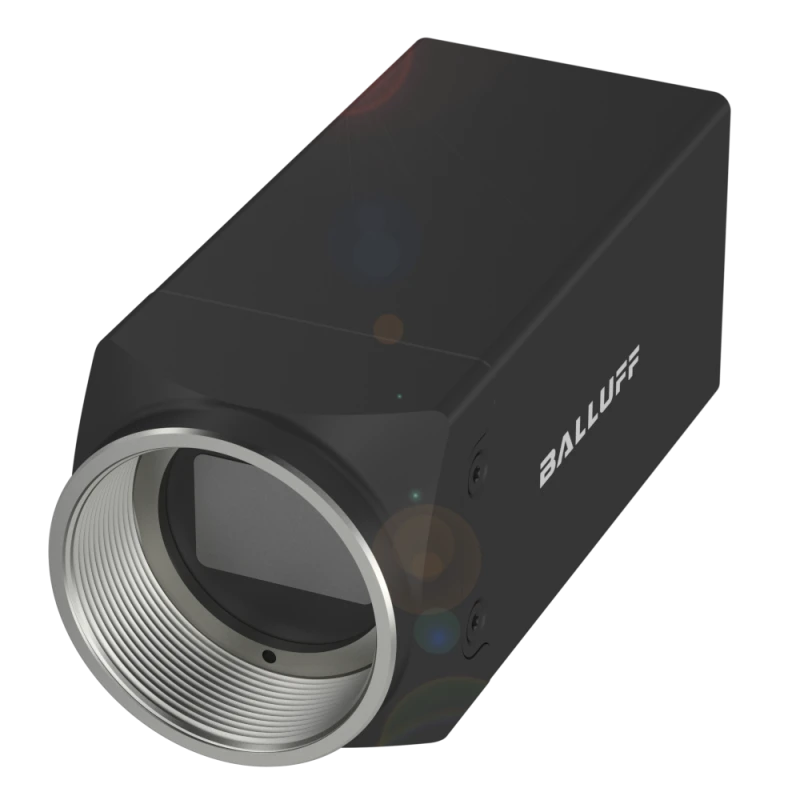

Name: Balluff 5GigE Industrial Camera - Lowest Power Consumption in Very Compact Housing
Brand: Balluff
Availability: InStock

Description

5 times faster than GigE, yet in a small 29x29mm form factor - this makes our 5GigE camera family ideal for applications that require higher frame rates. PoE enables both power supply and data transmission via a wired connection, reducing cabling complexity and the space required for installation.

The camera family has the lowest power consumption in it's class, which leads to very low heat dissipation, ensuring brilliant images with very low noise. Our Machine Vision Software Impact Acquire ensures compatibility and guarantees smooth image acquisition for your computer platforms.

Specifications

Sensor Type:	CMOS
# Pixels (Width):	Not Specified
# Pixels (Height):	Not Specified
Pixel Size (Square):	Not Specified
Peak Quantum Efficiency:	Not Specified
Full Frame Rate:	Not Specified
Bit Depth:	Not Specified
Resolution (model Dependent):	3.2 MP to 24.6 MP
Frames Rate (model Dependent):	23.6 Hz to 108.7 Hz
Sensor Format (model Dependent):	1/3.1
Pixel Size (model Dependent):	2.25 um to 2.74 um

Download Data Sheet

Features

The family of cameras that will set new standards: small, compact, and backward compatible
Fits everywhere - small form factor at 29×29 mm
Perfect images - best-in-class thermal property due to lowest power consumption (3.5 to 4.8 Watt)
Simple connectivity - power supply and data transmission via one cable by PoE
Backward compatible to 2.5 GigE interface
Latest Sony image sensor implementation including IMX901 and IMX902 as well as SWIR high resolution sensors IMX992 and IMX993

Applications

The camera is ideal for applications that require fast image sequences and high data rates. These include traffic monitoring and traffic flow control, the semiconductor industry, mechanical engineering, industrial measurement technology, and medical and dental technology. It is also used successfully in the pharmaceutical industry.
