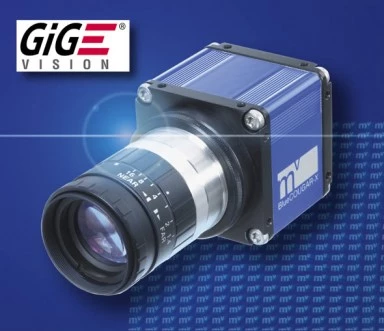

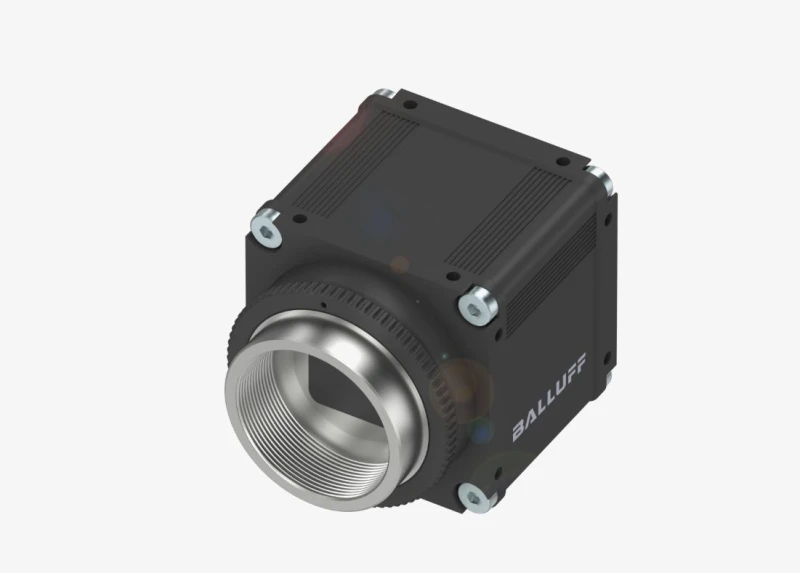

GigE Vision Industrial Camera mvBlueCOUGAR-X102bC

Name: GigE Vision Industrial Camera mvBlueCOUGAR-X102bC
Brand: Balluff

Description

The Gigabit Ethernet camera mvBlueCOUGAR-X is compliant to the GigE Vision® and GenICam™ image processing standards. The latest building blocks are used in one of the smallest yet rock solid housing in our industry. The camera is optimized for both machine vision tasks, relying on high frame rates combined with low latency image transport and on the other hand the images can be precisely optimized for viewing applications in life science and medical applications, where the utmost realistic image quality in terms of shades in gray scale and color fidelity, combined with best sensitivity and signal-to-noise ratio are required.

Specifications

Sensor Type:	CMOS
# Pixels (Width):	1280
# Pixels (Height):	960
Pixel Size (Square):	3.75 um
Peak Quantum Efficiency:	Not Specified
Full Frame Rate:	45.7 fps
Bit Depth:	10 bit

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Compact industrial camera series with Gigabit Ethernet
CCD & CMOS high quality sensors from VGA up to 12.4 megapixels
Gray scale, color, NIR (near infrared)
Hardware preprocessing on-board (FPGA) for reducing the CPU load of the host
Highest resolution ADC
Image memory 64 MB for a reliable image transfer

Applications

Machine vision
Surveillance
Life science
Microscopy
Medical application
Safety engineering

Request Quote

To: Balluff
Re: GigE Vision Industrial Camera mvBlueCOUGAR-X102bC

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: Balluff
On FindLight:: since 2018

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the GigE Vision Industrial Camera mvBlueCOUGAR-X102bC?

The GigE Vision Industrial Camera mvBlueCOUGAR-X102bC is a compact industrial camera series with Gigabit Ethernet that is compliant to the GigE Vision® and GenICam™ image processing standards.

What kind of sensors does the camera have?

The camera has CCD & CMOS high quality sensors from VGA up to 12.4 megapixels, with gray scale, color, and NIR (near infrared) options.

What are some of the applications for this camera?

The camera is optimized for both machine vision tasks, surveillance, life science, microscopy, medical applications, and safety engineering.

What kind of image formats does the camera support?

The camera supports Mono8, Mono12, Mono14, Mono16, Mono12Packed BayerGR8, BayerGR10, BayerGR12, BayerGR16, BayerGR12Packed (GR, RG, GB, BG depends on camera type) RGB8Packed, BGR8Packed, BGRA8Packed, BGR10V2Packed, YUV422Packed, YUV422_YUYVPacked, and YUV444Packed image formats.

What are some of the special features of this camera?

Some of the special features of this camera include frame average, enhanced color and I/O functionality, PoE, automatic gain / exposure control, binning, PLC inputs, pre-trigger recording, internal temperature sensors, FFC, screw lock connectors, video iris, and High Dynamic Range (HDR) mode supported.
