Description

Tiny footprint of 15 x 15 mm to 17 x 17 mm with 5 and 19.6 Mpix models. The smallest industrial USB3 cameras in the world - now even with global shutter BSI sensors.

Engineered for the smallest possible volume and weight, made with an advanced high-density manufacturing and assembly process. The xiMU cameras are the smallest cameras in our portfolio and even in the world of industrial cameras.
All of the latest models come with a USB3 interface (USB-C, flex or micro coax cables) to support the full potential of sensor bandwidth and ensure simplicity of use. All this together with less than 5 grams weight and less than 1 watt power consumption, makes them also ideal for a plethora of embedded, mobile, and space-restricted applications, such as UAVs.

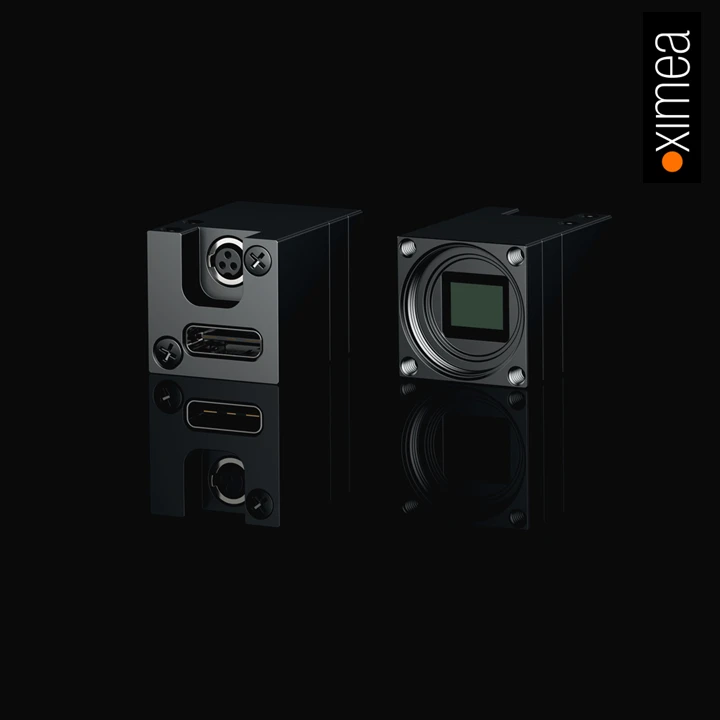

xiMU – World's smallest industrial grade USB cameras.

Specifications

Sensor Type: CMOS
# Pixels (Width): 2472
# Pixels (Height): 2064
Pixel Size (Square): 1.25 um
Peak Quantum Efficiency: Not Specified
Full Frame Rate: 4.6 fps
Bit Depth: 12 bit
Resolution: 5 - 19.6 MPix

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Miniature camera - Only 15 x 15 x 8 mm and mere 5 grams
  • High resolutions - From 5 Mpix models up to new 18 Mpix
  • Next level speed with more than 20 FPS at 18 Mpix
  • Low power consumption starting at under 1 watt

Applications

  • Miniature
  • Medical & Scientific
  • Aerial mapping
  • Quality inspection

Frequently Asked Questions

What are some features of the xiMU camera?
The xiMU camera is small, fast, and sensitive, with low power consumption. It also has 4x bidirectional general purpose I/O and comes calibrated and linearized ex-factory.
What are some supported operating systems for the xiMU camera?
The xiMU camera is supported by Windows, Linux, and macOS, ARM and many vision libraries.
What is the purpose of the 4 general purposes I/O ports on the xiMU camera?
The 4 general purposes I/O ports on the xiMU camera allow easy use of triggered illuminators or peripherals.
What is the xiMU camera?
The xiMU is an industrial grade USB2.0 / USB3.1 camera that weighs mere 5 grams and is the world's smallest industrial grade USB camera.

Got more questions? Use the inquiry form to ask the supplier directly.
