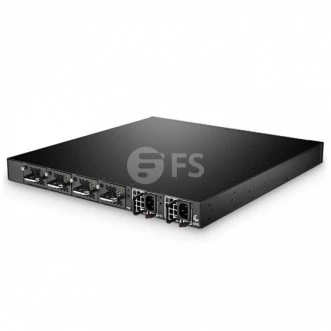

S5850-48S2Q4C Fiber Optic Switch
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Description
The FS S5850 Series Switches are designed to deliver high-performance Ethernet solutions tailored for the evolving needs of Metro, Data Center, and Enterprise networks. These switches are equipped to support a wide range of functionalities including L2/L3, IPv6, and advanced Data Center and Metro features. With a comprehensive system software suite, the S5850 Series facilitates rapid service deployment and efficient management across both traditional L2/L3 networks and modern Data Center infrastructures.
As a cost-effective Ethernet access and aggregation platform, the S5850 Series is ideal for Enterprise, Data Center, and Metro applications. These switches are also fully prepared for IPv6 deployment, ensuring future-proof network solutions. The series is engineered to support a variety of services and features, including Triple-Play Services, Layer 2 VPN Service, and robust redundancy mechanisms for fault backup, making it a versatile choice for diverse network environments.
The S5850 Series Switches are designed with energy efficiency in mind. They feature fans with speed control and power consumption adjustments based on port flow status and internal temperature. This intelligent design significantly reduces energy usage, aligning with green technology initiatives. Additionally, the Flexible Table Management (FTMTM) technology allows for multiple table size configurations, optimizing performance for various network scenarios. These switches can support up to 128K MAC address tables or 32K IP routing tables, with the option for application-specific profiles through FS Advanced Service.
The S5850 Series is equipped with cutting-edge Data Center features such as NVGRE, VXLAN, GENEVE, Priority Flow Control (PFC), and Data Center TCP. These features, along with MLAG capabilities, make the S5850 Series an excellent choice for Top-of-Rack (ToR) switches in data center networks. The series ensures uninterrupted performance with multi-node redundancy and a robust fault protection system. This includes hot-swappable power modules, AC 1+1 redundancy, N+1 fan redundancy, and real-time environment monitoring for critical components.
The FS S5850 Series Switches offer a rich array of software features to accommodate various deployment requirements across enterprise, data center, and metro Ethernet networks. The series implements advanced QoS mechanisms, providing flexible classification and queuing based on criteria such as source/destination MAC and IP addresses. This ensures optimal bandwidth utilization and superior network performance, catering to the demands of modern network environments.
S5850-48S2Q4C Fiber Optic Switch
Specifications |
|
|---|---|
| Number Of Ports: | 4 – 48 |
| Wavelength Range: | 0 – 0 nm |
| MAC Address Table: | 128K |
| IP Routing Table: | 32K |
| Power Module Redundancy: | AC 1+1 |
| Fan Redundancy: | N+1 |
Features
- High-Performance Switching: Up to 1.92 Tbps switching capacity, 1,200 Mpps forwarding rate
- Advanced Data Center Capabilities: NVGRE, VXLAN, GENEVE, MLAG, PFC, Data Center TCP
- Flexible Deployment Profiles: Rich L2/L3/IPv6 for metro, enterprise, and data center
- Resilient Architecture: Hot-swap PSU, N+1 fans, fault-tolerant protocols
- Advanced QoS: Eight queues per port, granular shaping and policing
- Robust Security: ACLs, DHCP Snooping, ARP Inspection, 802.1X authentication
- Green Design: Intelligent fan and power management for energy savings
Applications
- Enterprise Data Centers: High-density 10GbE server access with 40/100GbE uplinks
- Metro Ethernet Networks: QinQ, ERPS, VLAN translation for reliable metro rings
- Cloud & Virtualization: NVGRE, VXLAN, GENEVE for multi-tenant scalability
- Triple-Play Networks: QoS and multicast optimization for IPTV, VoIP, video surveillance
Frequently Asked Questions
The benefits of the S5850 Series Switches are that they are high performance Ethernet switches that support L2/L3/IPv6/Data Center/Metro features. They come with complete system software with comprehensive protocols and applications to facilitate rapid service deployment and management for both traditional L2/L3 networks and Data Center networks. They are cost-effective Ethernet access and aggregation platform to Enterprise, Data Center and Metro application.
The Data Center features supported by the S5850 Series Switches are NVGRE/VXLAN/GENEVE, Priority Flow Control (PFC), and Data Center TCP. MLAG features are also good candidates for TOR switch in data center network.
The key features of the S5850 Series Switches are Triple-Play Services, Layer 2 VPN Service, Superior Redundancy for Fault Backup, High-Performance IP Routing, Bandwidth Optimization, Robust Multicast Control, Advanced QoS, Comprehensive Security Solutions, and Superior Manageability.
The S5850-48S6Q is a high performance ToR/Leaf switch that has 48-port 10Gb SFP+ and 6-port 40Gb QSFP+ in a compact 1RU form factor. It's a low latency L2/L3 Ethernet switch that is cost-effective Ethernet aggregation and core layer to Data Center application.
Rich QoS mechanisms are implemented in S5850 Series Switches to provide outstanding QoS control with flexible classification and queuing mechanism.
