Description
The wavelength of pump laser diode is varied at different operating temperatures. Fiber Bragg Gratings (FBG) Wavelength Locker with low reflectivity is used to stabilize the wavelength and intensity of EDFA pump laser. It can stabilize the channel wavelength to ITU-T Grid standard wavelength in DWDM systems, network monitoring and fiber sensor applications.
According to the customer\'s locking requirements for the pump laser, single FBG or double FBG configuration can be provided for wavelength locking.

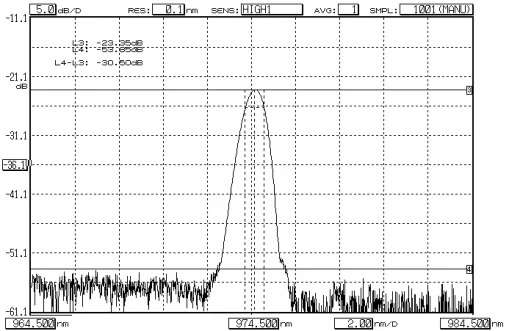

FBG Wavelength Locker
Specifications
| Center Wavelength Range: | 940 – 1070 nm |
|---|---|
| FBG Length: | 1 mm, 15 mm, 10 mm, 5 mm, 3 mm |
| Reflectivity: | >1% |
| Center Wavelength: | 940, 972-978, 1064, 1070 nm |
| Wavelength Tolerance: | +/-0.25 nm |
| Bandwidth (FWHM): | >0.02 nm |
| FBG Recoating: | Acrylate |
| Tensile Strength: | >100 kpsi |
| Fiber Type: | HI1060, HI1060flex, HI980, PM980 or SMF-28e |
| Optical Connector: | Bare Fiber, FC/APC, SC/APC, or Custom |
| SLSR: | >10 dB |
| Pigtail Length: | Standard 1m both ends, or custom |
Download Data Sheet
Features
- High wavelength locking accuracy
- Extremely low temperature dependence
- Low polarization dependence
- Periodical locking covers all channels
Applications
- EDFA pump lasers
- DFB lasers stabilization for WDM systems
- Laser stabilization for tunable laser module
- Raman system in-fiber resonators
Frequently Asked Questions
What is the purpose of the FBG Wavelength Locker?
The FBG Wavelength Locker is used to stabilize the wavelength and intensity of EDFA pump lasers by compensating for variations in operating temperatures.
What is the accuracy of the wavelength locking?
The FBG Wavelength Locker offers high wavelength locking accuracy.
Does the FBG Wavelength Locker have any temperature dependence?
The FBG Wavelength Locker has an extremely low temperature dependence.
Can the FBG Wavelength Locker be used for all channels?
Yes, the periodical locking of the FBG Wavelength Locker covers all channels.
What are the applications of the FBG Wavelength Locker?
The FBG Wavelength Locker can be used for EDFA pump lasers, DFB lasers stabilization for WDM systems, laser stabilization for tunable laser modules, and Raman system in-fiber resonators.
