Description
| Product name：plastic optical fiber cable-simplex pof cableItem：CC2-1000Details： Plastic Optical Fiber Cable-- Simplex POF Cable This simplex pof cable is also called Plastic Optical Fiber Cable,Polyethylene Jacketed Optical Fiber Cable,polymer optical fiber cable, plastic fiber optic cable, which is mainly used for short distance data transmission. Basic properties: Fiber Core Material: PMMA Cladding Material: Fluorinated Polymer Jacketing Material: Black PE or PVC Optical Instruction: Step Index Model Numerical Aperture: 0.5 Allowable Bend Radius: No less than ten times of optical fiber diameter Core Refractive Index: 1.492 Features: 1. Max. Attenuation: 0.18dB/m@650nm; 2. Theoretic bandwidth of 10~20MHz. 50m(Numerical aperture 0.5), 100~200MHz. 50m(Numerical aperture 0.3); 3. Diameter allowance ± 3% in actual production; 4. Working temperature: --20~70 Celsius Degrees; 5. Jacketing material: PE |
PMMA Industrial Fiber Optic Cable Simplex (0.15dB/m@525nm)
Specifications
| Core Diameter: | 1000 um |
|---|---|
| Wavelength Range: | 0.525 – 0.65 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 5 m |
| Transmission Loss: | <0.17dB/M @650nm |
| Operating Temperature: | -55~85 ℃ |
Download Data Sheet
Features

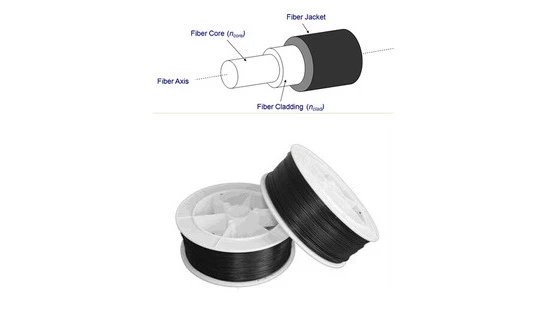

This simplex pof cable can be sold both by pieces or on plastic spool.
Applications
1. Signal transmission of sensors;
2. High speed data transmission;
3. Industrial control data links;
4. Military communication;
5. Proprietary LANs or Access Network;
6. Multi-media data link and plant control in vehicles and airplanes
Frequently Asked Questions
What are some applications of the PMMA Industrial Fiber Optic Cable Simplex?
Some applications include signal transmission of sensors, high speed data transmission, industrial control data links, military communication, proprietary LANs or access network, and multi-media data link and plant control in vehicles and airplanes.
What is the working temperature range of the PMMA Industrial Fiber Optic Cable Simplex?
The working temperature range is -20~70 Celsius Degrees.
What is the maximum attenuation of the PMMA Industrial Fiber Optic Cable Simplex?
The maximum attenuation is 0.18dB/m@650nm.
What is the diameter allowance of the PMMA Industrial Fiber Optic Cable Simplex in actual production?
The diameter allowance is ± 3%.
What is the numerical aperture of the PMMA Industrial Fiber Optic Cable Simplex?
The numerical aperture is 0.5.
