Description
The HR6 Spectrometer from Ocean Optics is a cutting-edge instrument designed for high sensitivity and high resolution, providing exceptional signal-to-noise ratio (SNR) performance. This spectrometer is ideal for a variety of applications, including the absorbance of proteins and the emission of broadband sources. The HR6 is compact and robust, offering excellent thermal wavelength stability to ensure accurate results even under changing ambient conditions. Its design ensures that users can achieve precise measurements without the interference of external factors.
The HR6 spectrometer stands out with its ability to cover a broad wavelength range from approximately 180-1100 nm. It offers UV-Vis, Vis-NIR, and extended-range options, along with selectable slit width sizes, allowing users to manage throughput and optical resolution effectively. These features make the HR6 a versatile tool for various spectroscopic needs, ensuring high sensitivity while maintaining great resolution.
One of the defining characteristics of the HR6 is its capability to anchor your spectral setup. It seamlessly couples with SMA 905-terminated light sources, optical fibers, and sampling accessories, enabling users to optimize their setups for specific applications. Whether your measurements require sub-nanometer resolution or high absorbance linearity when analyzing biomolecules, the HR6 is an excellent choice. It allows for accurate measurements across a wide range of concentration levels, eliminating the need for dilution steps that could introduce errors. This capability ensures higher quality spectra and more accurate results, making the HR6 an invaluable tool in any laboratory.
Each HR6 spectrometer includes OceanDirect, a powerful cross-platform Software Developers Kit with an Application Programming Interface. This software enables users to optimize spectrometer performance, access critical data for analysis, and take advantage of the High Speed Averaging Mode. This feature, available with newer-model spectrometers, significantly enhances the spectrometer's SNR performance, adding substantial value to the HR6's capabilities.
Ocean HR6 Spectrometer: High Sensitivity, High Resolution, High SNR
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 180 – 1100 nm |
| Resolution: | 0.13 nm |
| Wavelength Range: | ~180-1100 nm |
| Optical Resolution (w/25 µm Slit): | ~0.13-1.17 |
| Dynamic Range: | 12000:1 (single scan) |
| Signal-to-Noise (1 Second Average W/ HSAM): | 3500:1 |
| High Speed Averaging Mode: | 25800:1 |
| Signal To Noise Ratio (single Scan @ 10 Ms): | 400:1 |
| Thermal Wavelength Drift: | 0.02 nm/° C |
| Interfaces: | USB, RS-232, Ethernet |
| Connector: | USB Type-C, Samtec™ TFM-108-02-L-DH, RJ45 |
| Temperature (storage): | -30 °C to 70 °C |
| Temperature (operation): | 0 °C to 55 °C |
| Dimensions: | 149 mm (w) x 106 mm (d) x 48 mm (h) |
| Weight: | 931 g |
Features
- High Sensitivity and Resolution: The HR6 Spectrometer offers exceptional sensitivity and resolution, making it ideal for applications such as protein absorbance and broadband source emission.
- Broad Wavelength Range: Covers UV-Vis, Vis-NIR, and extended-range options within the wavelength range of approximately 180-1100 nm.
- Compact and Robust Design: Engineered for durability and excellent thermal wavelength stability, ensuring accurate results even under changing ambient conditions.
- Flexible Configuration: Compatible with SMA 905-terminated light sources, optical fibers, and sampling accessories for optimized setups tailored to specific applications.
- High Absorbance Linearity: Provides accurate biomolecule measurements across a wide concentration range, eliminating the need for sample dilution and reducing potential measurement errors.
- Broadband, High Resolution Performance: Ideal for emission and other spectral measurements requiring sub-nanometer resolution.
- Dynamic Range: Offers a dynamic range of 12000:1 (single scan) and a signal-to-noise ratio of 3500:1 with High Speed Averaging Mode (HSAM).
- Interfaces and Connectivity: Equipped with USB, RS-232, and Ethernet interfaces, featuring USB Type-C, Samtec™ TFM-108-02-L-DH, and RJ45 connectors.
- Temperature Resilience: Operates efficiently within a temperature range of 0 °C to 55 °C and can be stored between -30 °C to 70 °C.
- Compact Dimensions: Measures 149 mm (w) x 106 mm (d) x 48 mm (h) and weighs 931 g, making it easy to integrate into various setups.
- Comprehensive Software Support: Comes with OceanDirect, a powerful Software Developers Kit with an Application Programming Interface for optimizing spectrometer performance and data analysis.
Applications
- Absorbance of Proteins: The HR6 spectrometer is ideal for measuring the absorbance of proteins, offering high sensitivity and resolution.

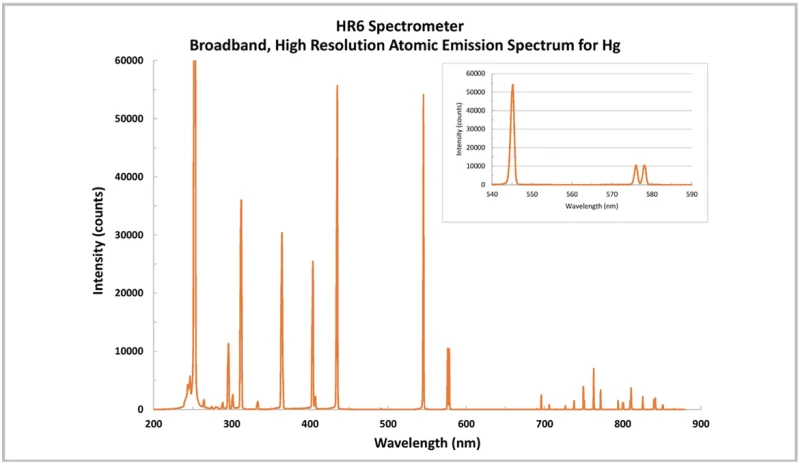

- Emission of Broadband Sources: Provides broadband, high-resolution performance for emission measurements, ensuring accurate results.
- Sub-Nanometer Resolution: Perfect for applications requiring sub-nanometer resolution of spectral features.
- High Absorbance Linearity for Biomolecules: Accurately measures samples over a wide range of concentration levels, eliminating the need for sample dilution steps.
- UV-Vis and Vis-NIR Spectroscopy: Covers a wide wavelength range from ~180-1100 nm, suitable for various spectral analysis needs.
- Thermal Wavelength Stability: Ensures accurate measurements even in changing ambient conditions, with a thermal wavelength drift of 0.02 nm/° C.
- High Sensitivity and Resolution: Offers optical resolution of ~0.13-1.17 with a 25 μm slit, providing detailed spectral data.
- High Dynamic Range: Features a dynamic range of 12000:1 (single scan) for capturing detailed spectral information.
Frequently Asked Questions
The HR6 Spectrometer covers a wavelength range from approximately 180 nm to 1100 nm.
The HR6 Spectrometer is ideal for applications including absorbance of proteins and emission of broadband sources.
The HR6 Spectrometer offers excellent thermal wavelength stability, which ensures accurate results even in changing ambient conditions.
The HR6 Spectrometer has a signal-to-noise ratio of 3500:1 for a 1-second average with High Speed Averaging Mode, and 400:1 for a single scan at 10 ms.
The HR6 Spectrometer supports USB, RS-232, and Ethernet interfaces.
The HR6 Spectrometer comes with OceanDirect, a cross-platform Software Developers Kit with an Application Programming Interface.
The storage temperature range is -30 °C to 70 °C, and the operating temperature range is 0 °C to 55 °C.
